Product Details | ENGINE POPPET VALVE
2805-00-271-9069 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: V1633, V1642, V-1642, VI805, 58321A, 58321D, V176, 1642, 2805-00-271-9069, 00-271-9069, 2805002719069, 002719069
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-271-9069 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2805-00-271-9069
Cross Reference | NSN 2805-00-271-9069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1642 | 19239 | ECHLIN INC |
| 1642 | 54509 | NAPASCO INTERNATIONAL INC |
| 58321A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 58321A | 28265 | HERCULES ENGINE CO INC |
| 58321D | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 58321D | 28265 | HERCULES ENGINE CO INC |
| V-1642 | 77220 | DANA CORP ENGINE PRODUCTS DIV |
| V-1642 | 95019 | DANA CORP SPICER TRANSMISSION DIV |
| V1633 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| V176 | 77576 | STERLING DIV FEDERAL MOGUL CORP |
| VI805 | 45225 | SERVICE SOLUTIONS U.S. LLC |
| VI805 | 53781 | SPX CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2805-00-271-9069
Related Products | NSN 2805-00-271-9069
2805-00-271-9070, 2805-00-271-9072, 2805-00-271-9073, 2805-00-271-9535, 2805-00-271-9543
Technical Data | NSN 2805-00-271-9069
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI/SAE 3140 OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | 37.0 ROCKWELL C NOMINAL TIP |
| HEAD STYLE | 5 FLAT |
| HEAD HEIGHT | 0.1250 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.2970 INCHES MINIMUM AND 1.3070 INCHES MAXIMUM |
| NECK RADIUS | 0.2187 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 30.0 |

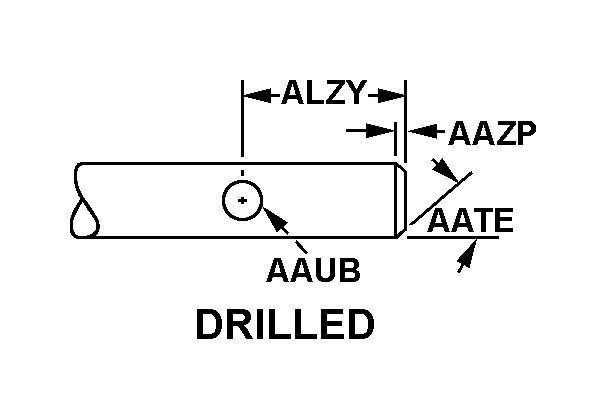

| STEM STYLE | 3 DRILLED |
| HOLE DIAMETER | 0.1260 INCHES MINIMUM AND 0.1320 INCHES MAXIMUM |
| CHAMFER LENGTH | 0.0312 INCHES NOMINAL |
| STEM LENGTH | 3.0000 INCHES MINIMUM AND 3.0100 INCHES MAXIMUM |
| STEM DIAMETER | 0.2470 INCHES MINIMUM AND 0.2480 INCHES MAXIMUM |
| DISTANCE FROM HOLE CENTER TO STEM END | 0.1562 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 45.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
| III FSC APPLICATION DATA | GASOLINE ENGINE |
Restrictions/Controls & Freight Information | NSN 2805-00-271-9069
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-271-9069
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | C | Construction MaterielDefense Supply Center Columbus (DSCC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
