NSN 2805-00-271-9550 S1893, S-1893, E-118
Product Details | ENGINE POPPET VALVE
2805-00-271-9550 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: S1893, S-1893, E-118, D1271, D-1271, E118, 40010A, 43014A, 1151, 1A5884, 2805-00-271-9550, 00-271-9550, 2805002719550, 002719550
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-271-9550 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2805-00-271-9550
Cross Reference | NSN 2805-00-271-9550
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1151 | 54509 | NAPASCO INTERNATIONAL INC |
| 1A5884 | 95201 | NAPCO INTERNATIONAL LLC |
| 40010A | 54845 | HOIST LIFTRUCK MFG INC |
| 43014A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 43014A | 28265 | HERCULES ENGINE CO INC |
| D-1271 | 95019 | DANA CORP SPICER TRANSMISSION DIV |
| E-118 | 83087 | GOULD INC INDUSTRIAL MARKETING DIV |
| S-1893 | 31033 | TRW INC TRW INTL TRADE GOVERNMENT SALES DEPT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-271-9550
Technical Data | NSN 2805-00-271-9550
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI/SAE 3140 STEM STEEL, FED STD 66, SAE EV4 HEAD |
| METALLIC HARDNESS RATING AND LOCATION | 37.0 ROCKWELL C NOMINAL STEM 37.0 ROCKWELL C NOMINAL TIP |

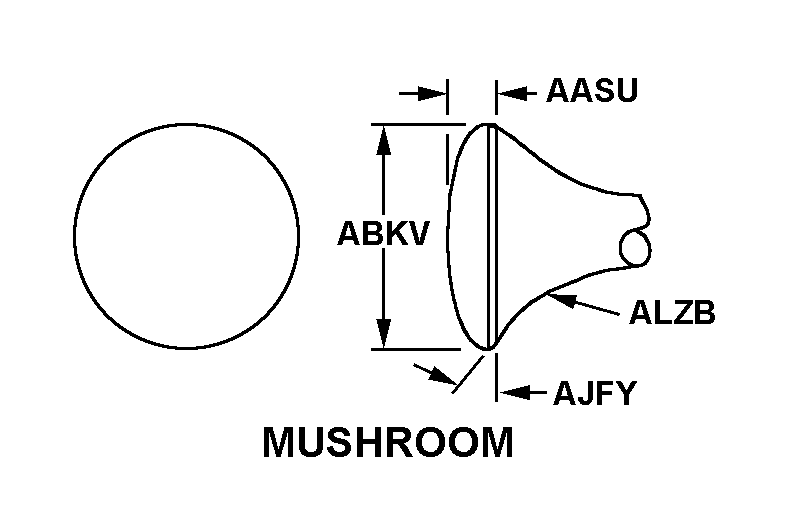

| HEAD STYLE | 2 MUSHROOM |
| HEAD HEIGHT | 0.2010 INCHES MINIMUM AND 0.2210 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.5625 INCHES MINIMUM AND 1.5725 INCHES MAXIMUM |
| NECK RADIUS | 0.4375 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |

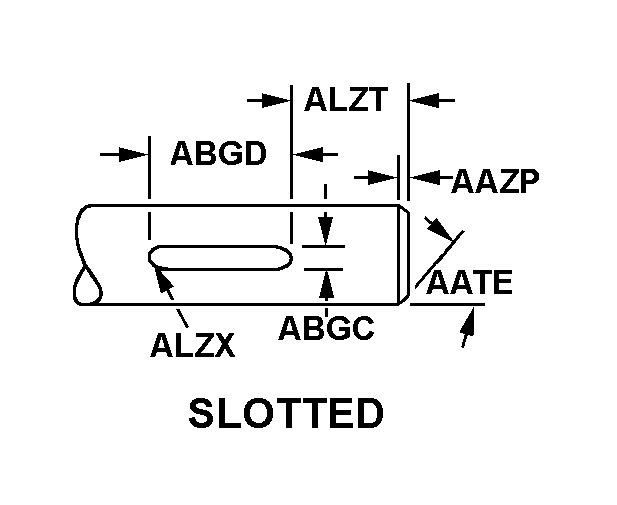

| STEM STYLE | 4 SLOTTED |
| CHAMFER LENGTH | 0.0312 INCHES NOMINAL |
| SLOT WIDTH | 0.1580 INCHES MINIMUM AND 0.1620 INCHES MAXIMUM |
| SLOT LENGTH | 0.3300 INCHES MINIMUM AND 0.3380 INCHES MAXIMUM |
| STEM LENGTH | 4.9158 INCHES MINIMUM AND 4.9208 INCHES MAXIMUM |
| STEM DIAMETER | 0.3720 INCHES MINIMUM AND 0.3730 INCHES MAXIMUM |
| DISTANCE FROM SLOT TO STEM END | 0.1094 INCHES NOMINAL |
| SLOT RADIUS | 0.1790 INCHES MINIMUM AND 0.1810 INCHES MAXIMUM |
| CHAMFER ANGLE IN DEG | 45.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
| III FSC APPLICATION DATA | GASOLINE ENGINE |
Restrictions/Controls & Freight Information | NSN 2805-00-271-9550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2805-00-271-9550
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
