NSN 2805-00-275-3055 U953677, W-265, W9318
Product Details | PISTON PIN
2805-00-275-3055 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: U953677, W-265, W9318, W265, 22238, 22238B, 22238-B, 22238BSTD, 83222, P937, P955, 2805-00-275-3055, 00-275-3055, 2805002753055, 002753055
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-275-3055 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-275-3055
Cross Reference | NSN 2805-00-275-3055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22238 | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 22238 | 28265 | HERCULES ENGINE CO INC |
| 22238-B | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 22238-B | 28265 | HERCULES ENGINE CO INC |
| 22238B | 12603 | CLARK EQUIPMENT CO |
| 22238B | 89749 | CLARK MATERIAL HANDLING COMPANY |
| 22238BSTD | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 22238BSTD | 28265 | HERCULES ENGINE CO INC |
| 83222 | 36024 | LIBBY POWER SYSTEMS LLC |
| P937 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| P937 | 78557 | TOLEDO PICKLING & STEEL SALES |
| P955 | 53581 | GRAND RAPIDS SECTIONAL EQUIPMENT CO |
| U953677 | 12603 | CLARK EQUIPMENT CO |
| U953677 | 89749 | CLARK MATERIAL HANDLING COMPANY |
| W-265 | 83087 | GOULD INC INDUSTRIAL MARKETING DIV |
| W9318 | 76255 | MCQUAY-NORRIS INC OEM DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-275-3055
Technical Data | NSN 2805-00-275-3055
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1019 |
| METALLIC HARDNESS RATING | 65.7 MINIMUM ROCKWELL C AND 71.8 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |

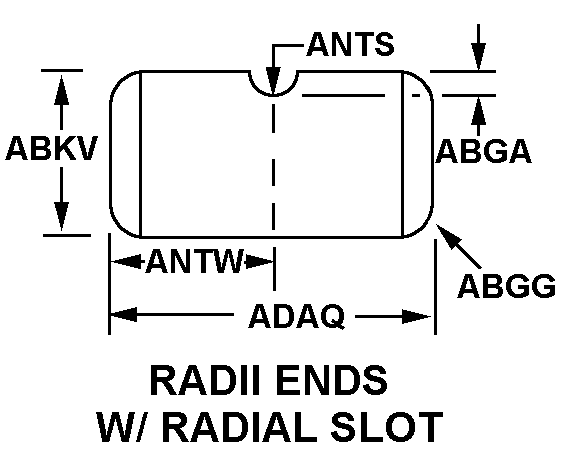

| BODY STYLE | 16A RADII ENDS W/RADIAL SLOT |
| GROOVE DEPTH | 0.0920 INCHES NOMINAL |
| RADIUS | 0.312 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.99950 INCHES MINIMUM AND 0.99970 INCHES MAXIMUM |
| BODY LENGTH | 3.5000 INCHES MINIMUM AND 3.5156 INCHES MAXIMUM |
| RADIAL GROOVE RADIUS | 0.188 INCHES NOMINAL |
| DISTANCE FROM END TO SLOT CENTER | 1.750 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |

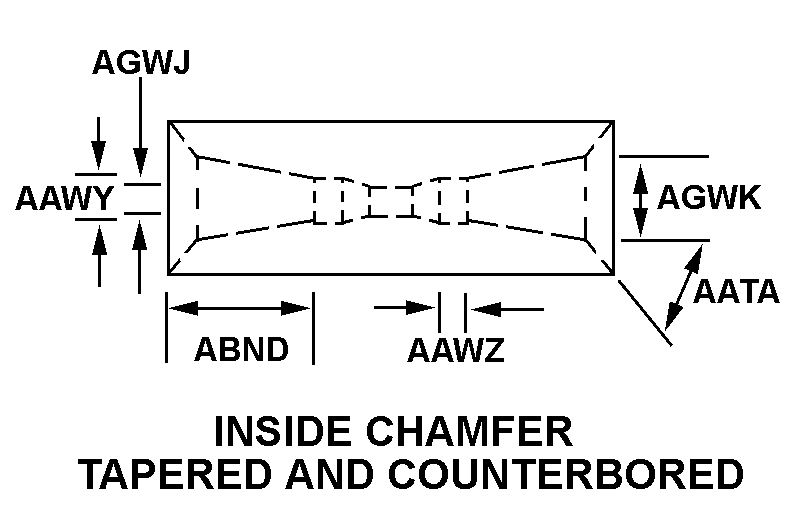

| BORE STYLE | 11 INSIDE CHAMFER, TAPERED AND COUNTERBORED |
