Product Details | VALVE STEM GUIDE
2805-00-353-7950 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: G254R, G337, G338, 3337, 600746, 852544, 1124959, 1201100, 120-1100, 1A60141, 234K40, 0001201100, 000120-1100, 2805-00-353-7950, 00-353-7950, 2805003537950, 003537950
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-353-7950 | 32562 ( GUIDE, VALVE STEM ) |
Drawings & Photos | NSN 2805-00-353-7950
Cross Reference | NSN 2805-00-353-7950
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000120-1100 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 1124959 | 01530 | CHRYSLER CORP 8MILE AND OUTER DR STAMPING PLANT |
| 1124959 | 12204 | DAIMLER CHRYSLER |
| 1124959 | 18113 | CHRYSLER CORP HAMTRAMCK ASSEMBLY |
| 1124959 | 93334 | ATWOOD FENCE COMPANY INC. |
| 120-1100 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 1A60141 | 95201 | NAPCO INTERNATIONAL LLC |
| 234K40 | 83299 | NACCO MATERIALS HANDLING GROUP INC DBA YALE MATERIALS HANDLING |
| 3337 | 54509 | NAPASCO INTERNATIONAL INC |
| 600746 | 12204 | DAIMLER CHRYSLER |
| 852544 | 12603 | CLARK EQUIPMENT CO |
| G254R | 76255 | MCQUAY-NORRIS INC OEM DIV |
| G337 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| G338 | 59875 | EATON INDUSTRIAL CORPORATION DBA ARGO-TECH |
| G338 | 92947 | ERTEL MFG CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2805-00-353-7950
Related Products | NSN 2805-00-353-7950
2805-00-353-7953, 2805-00-353-7958, 2805-00-353-7959, 2805-00-353-7964, 2805-00-353-7967
Technical Data | NSN 2805-00-353-7950
| Characteristic | Specifications |
|---|---|
| MATERIAL | GRAY IRON |
| METALLIC HARDNESS RATING | NOT RATED |

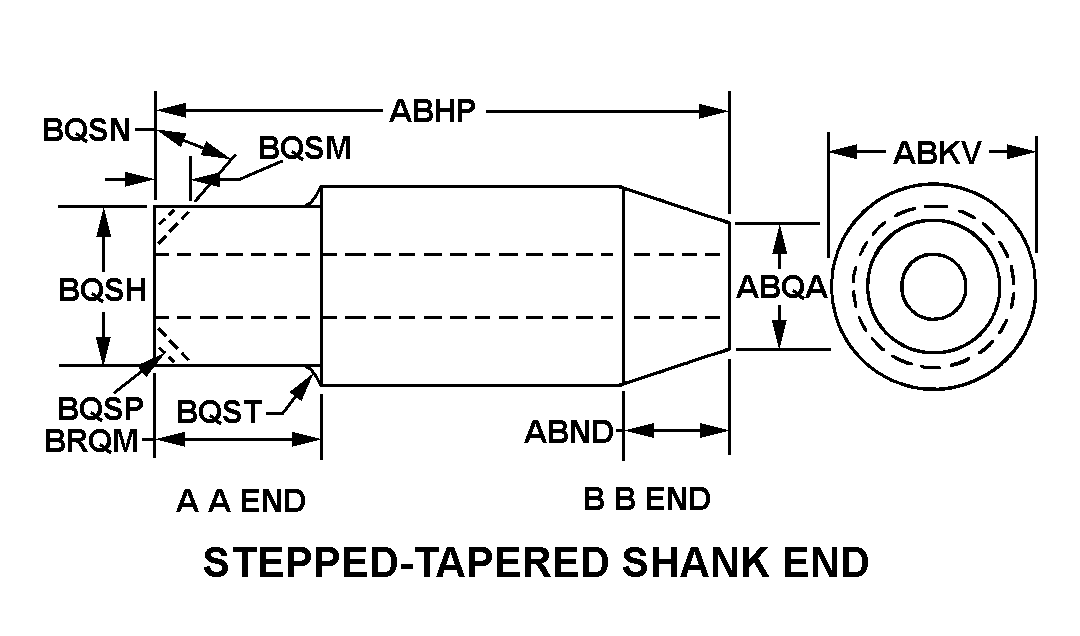

| STYLE DESIGNATOR | H8 STEPPED-TAPERED SHANK END |
