NSN 2805-00-386-3660 S1640, V1308, VE823
Product Details | ENGINE POPPET VALVE
2805-00-386-3660 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: S1640, V1308, VE823, D1192, D1225, 1049, 1079, 3835318, 608497, 839412, A964, 2805-00-386-3660, 00-386-3660, 2805003863660, 003863660
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-386-3660 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2805-00-386-3660
Demand History | NSN 2805-00-386-3660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1049 | 2021-03-83 | 30 | US |
Cross Reference | NSN 2805-00-386-3660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1049 | 80825 | ALLIED MOTOR PARTS CO |
| 1079 | 80825 | ALLIED MOTOR PARTS CO |
| 3835318 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 3835318 | 24617 | GENERAL MOTORS CORP |
| 3835318 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 608497 | 24617 | GENERAL MOTORS CORP |
| 839412 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 839412 | 24617 | GENERAL MOTORS CORP |
| 839412 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| A964 | 77576 | STERLING DIV FEDERAL MOGUL CORP |
| D1192 | 77220 | DANA CORP ENGINE PRODUCTS DIV |
| D1225 | 77220 | DANA CORP ENGINE PRODUCTS DIV |
| S1640 | 78557 | TOLEDO PICKLING & STEEL SALES |
| V1308 | 76255 | MCQUAY-NORRIS INC OEM DIV |
| VE823 | 45225 | SERVICE SOLUTIONS U.S. LLC |
| VE823 | 53781 | SPX CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-386-3660
Technical Data | NSN 2805-00-386-3660
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, SAE HNV4 OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | 42.0 ROCKWELL C NOMINAL TIP |

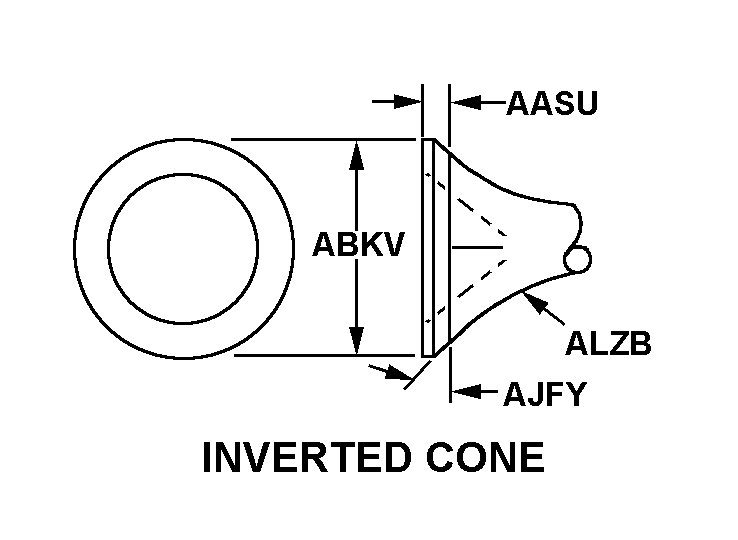

| HEAD STYLE | 3 INVERTED CONE |
| HEAD HEIGHT | 0.1650 INCHES MINIMUM AND 0.1800 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.4640 INCHES MINIMUM AND 1.4740 INCHES MAXIMUM |
| NECK RADIUS | 0.3440 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 30.0 |
| GROOVE DIAMETER | 0.3000 INCHES MINIMUM AND 0.3060 INCHES MAXIMUM |
| CHAMFER LENGTH | 0.0310 INCHES MINIMUM AND 0.1600 INCHES MAXIMUM |
| GROOVE WIDTH | 0.0950 INCHES MINIMUM AND 0.1050 INCHES MAXIMUM |
| STEM DIAMETER | 0.3400 INCHES MINIMUM AND 0.3407 INCHES MAXIMUM |
| DISTANCE FROM GROOVE TO STEM END | 0.4649 INCHES MINIMUM AND 0.4749 INCHES MAXIMUM |
| CHAMFER ANGLE IN DEG | 45.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
| III FSC APPLICATION DATA | GASOLINE ENGINE |
| MANUFACTURERS CODE | 7X677 |
| DESIGN CONTROL REFERENCE | 3835318 |
Restrictions/Controls & Freight Information | NSN 2805-00-386-3660
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
