NSN 2805-00-430-0320 17270, 17-270, 00-430-0320
Product Details | PISTON PIN
2805-00-430-0320 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 17270, 17-270, 2805-00-430-0320, 00-430-0320, 2805004300320, 004300320
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-430-0320 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-430-0320
Cross Reference | NSN 2805-00-430-0320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-270 | 35301 | DRESSER INDUSTRIES INC LEROI DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-430-0320
Technical Data | NSN 2805-00-430-0320
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-633, FS1020-CANCELED |
| METALLIC HARDNESS RATING | 51.0 MINIMUM ROCKWELL C AND 68.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |

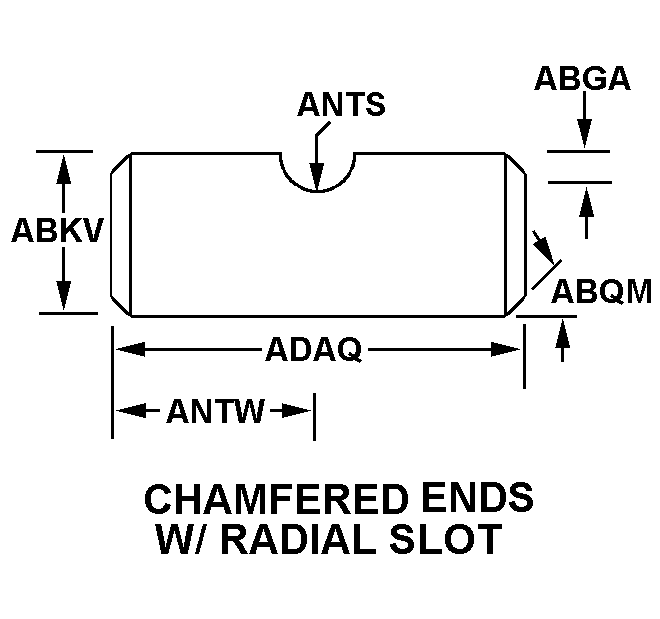

| BODY STYLE | 7 CHAMFERED ENDS W/RADIAL SLOT |
| GROOVE DEPTH | 0.1406 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.49960 INCHES MINIMUM AND 1.49980 INCHES MAXIMUM |
| BODY LENGTH | 5.2500 INCHES NOMINAL |
| RADIAL GROOVE RADIUS | 0.2656 INCHES NOMINAL |
| DISTANCE FROM END TO SLOT CENTER | 2.6250 INCHES NOMINAL |
| END CHAMFER ANGLE IN DEG | 45.0 |
| III FSC APPLICATION DATA | ENGINE GASOLINE |
Restrictions/Controls & Freight Information | NSN 2805-00-430-0320
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
