Product Details | PISTON PIN
2805-00-544-0681 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 230003, 2805-00-544-0681, 00-544-0681, 2805005440681, 005440681
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-544-0681 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2805-00-544-0681
Cross Reference | NSN 2805-00-544-0681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 230003 | 55469 | ESSEX INDUSTRIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-544-0681
Technical Data | NSN 2805-00-544-0681
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1016 OR STEEL, FED STD 66, AISI/SAE 1117 |
| METALLIC HARDNESS RATING | 60.0 MINIMUM ROCKWELL C AND 66.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 1A PLAIN ENDS |
| OUTSIDE DIAMETER | 0.62470 INCHES MINIMUM AND 0.62490 INCHES MAXIMUM |
| BODY LENGTH | 2.4700 INCHES MINIMUM AND 2.4750 INCHES MAXIMUM |

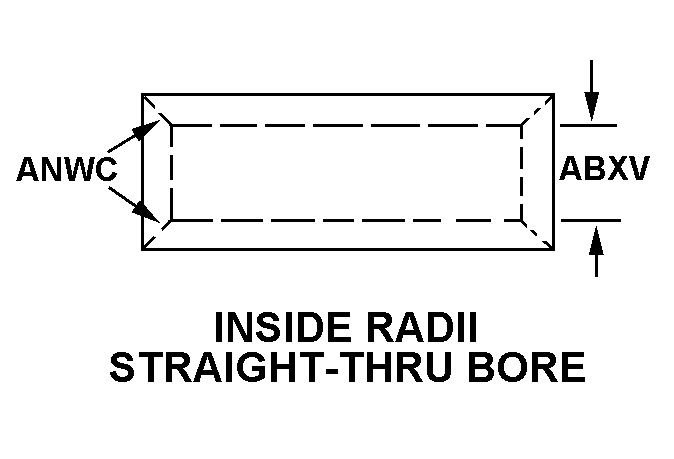

| BORE STYLE | 5 INSIDE RADII STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.5750 INCHES MINIMUM AND 0.5800 INCHES MAXIMUM |
| BORE RADIUS | 0.016 INCHES NOMINAL |
| III FSC APPLICATION DATA | ENGINE,GASOLINE,NONAIRCRAFT |
| MANUFACTURERS CODE | 55469 |
| DESIGN CONTROL REFERENCE | 230003 |
