NSN 2805-00-700-6944 203268, 7006944, 00-700-6944
Product Details | PISTON PIN PLUG
2805-00-700-6944 A cylindrically-shaped unthreaded item specifically designed to mate with and prevent a piston pin from working out against the side of a cylinder wall. Excludes PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 203268, 7006944, 2805-00-700-6944, 00-700-6944, 2805007006944, 007006944
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-700-6944 | 22332 ( PLUG, PISTON PIN ) |
Drawings & Photos | NSN 2805-00-700-6944
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-700-6944
Technical Data | NSN 2805-00-700-6944
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2017 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4118 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2800 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |

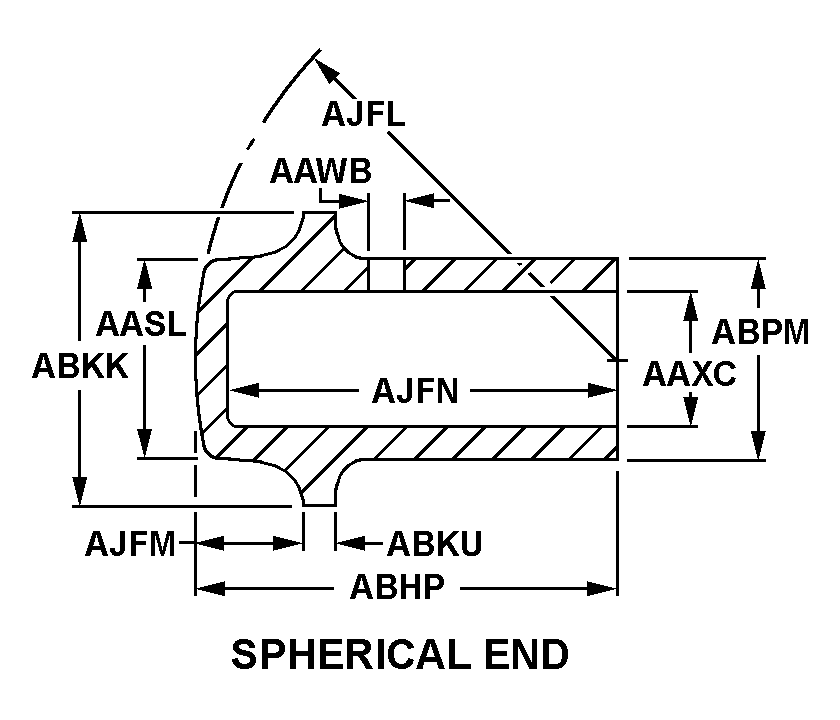

| STYLE DESIGNATOR | D1 SPHERICAL END |
| HEAD DIAMETER | 0.820 INCHES NOMINAL |
| SHANK UNTHREADED HOLE DIAMETER | 0.064 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.710 INCHES MINIMUM AND 0.720 INCHES MAXIMUM |
| OVERALL LENGTH | 1.843 INCHES MINIMUM AND 1.850 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.220 INCHES NOMINAL |
| FLANGE THICKNESS | 0.100 INCHES NOMINAL |
| BODY DIAMETER | 0.946 INCHES MINIMUM AND 0.947 INCHES MAXIMUM |
| SPHERICAL RADIUS | 1.750 INCHES NOMINAL |
| END TO FLANGE DISTANCE | 0.623 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| CONCENTRIC HOLE LENGTH | 1.740 INCHES NOMINAL |
| MANUFACTURERS CODE | 02978 |
| DESIGN CONTROL REFERENCE | 203268 |
