NSN 2805-01-129-5515 32581, 01-129-5515, 011295515
Product Details | VALVE SPRING RETAINER LOCK
2805-01-129-5515 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: 32581, 2805-01-129-5515, 01-129-5515, 2805011295515, 011295515
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 08 APR 1982 | 01-129-5515 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2805-01-129-5515
Cross Reference | NSN 2805-01-129-5515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32581 | 35211 | LAUSON DIVISION OF TECUMSEH PRODUCTS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-01-129-5515
Technical Data | NSN 2805-01-129-5515
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

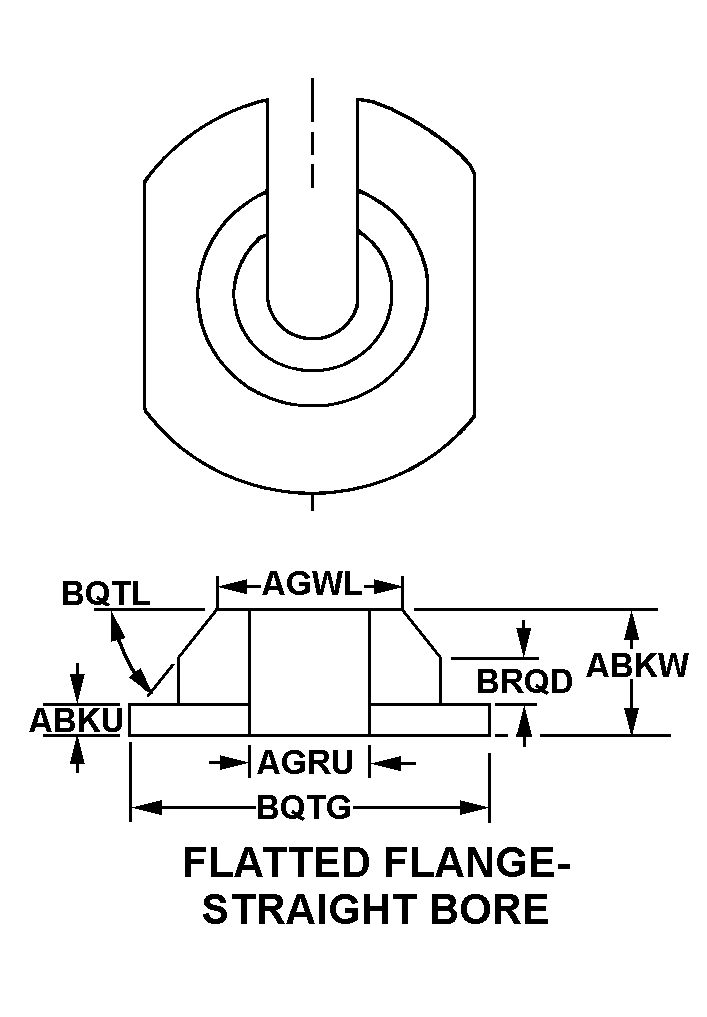

| STYLE DESIGNATOR | M4 FLATTED FLANGE-STRAIGHT BORE |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| OVERALL HEIGHT | 0.230 INCHES NOMINAL |
| LARGEST INSIDE DIAMETER | 0.215 INCHES NOMINAL |
| SMALLEST OUTSIDE DIAMETER | 0.460 INCHES NOMINAL |
| LARGEST OUTSIDE WIDTH | 0.962 INCHES NOMINAL |
| SMALLEST OUTSIDE DIAMETER CHAMFER ANGLE IN DEG | ANY ACCEPTABLE |
| HEIGHT TO SHOULDER | 0.100 INCHES NOMINAL |
| THREAD PROVISION | UNTHREADED |
Restrictions/Controls & Freight Information | NSN 2805-01-129-5515
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
