NSN 2815-00-107-1092 68752, 00-107-1092, 001071092
Product Details | PISTON RING
2815-00-107-1092 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: 68752, 2815-00-107-1092, 00-107-1092, 2815001071092, 001071092
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 24 JUL 1968 | 00-107-1092 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 2815-00-107-1092
Cross Reference | NSN 2815-00-107-1092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 68752 | 15434 | CUMMINS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-107-1092
Technical Data | NSN 2815-00-107-1092
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | A46 BEVELED FACE SCRAPER, VENTILATED OIL CONTROL |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.2700 INCHES NOMINAL |
| OVERALL WIDTH | 0.3000 INCHES NOMINAL |
| OIL PASSAGE TYPE AND QUANTITY | 12 SLOT HORIZONTALLY THROUGH RING |

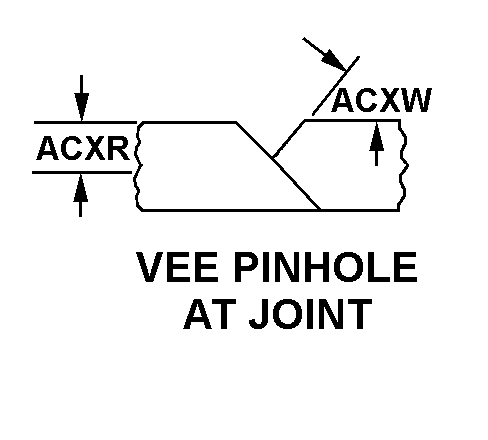

| PIN HOLE STYLE | 11 VEE PINHOLE AT JOINT |
| RING WIDTH PIN HOLE DEPTH | 0.010 INCHES NOMINAL |
| PIN HOLE ANGLE | 75.0 DEGREES NOMINAL |
| STANDARD BORE DIAMETER | 7.250 INCHES |
Restrictions/Controls & Freight Information | NSN 2815-00-107-1092
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
