NSN 2815-00-147-0475 MADG531PC6, ADD544A, ADE544A
Product Details | ENGINE VALVE SEAT INSERT
2815-00-147-0475 A metal ring designed to provide a seating surface for a VALVE, POPPET, ENGINE It is made of special high-grade alloy metal that can withstand high operating temperatures. For fulid valves, see SEAT, VALVE.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: MADG531PC6, ADD544A, ADE544A, 10ADE531PC6, 13ADD531PC6, 15ADD531PC6, 7ADD531PC6, 2815-00-147-0475, 00-147-0475, 2815001470475, 001470475
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-147-0475 | 42140 ( INSERT, ENGINE VALVE SEAT ) |

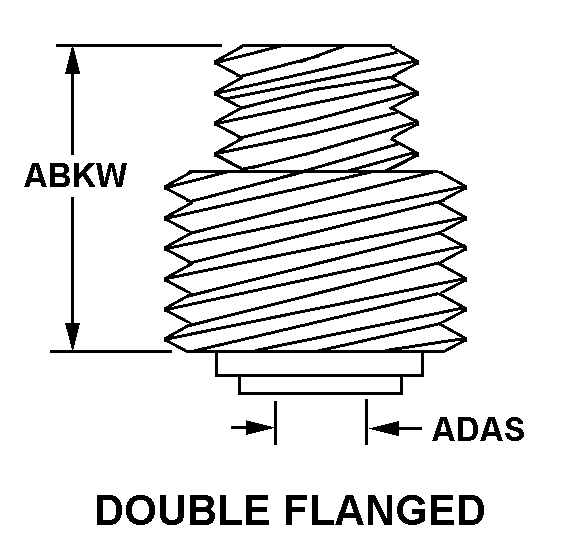

Drawings & Photos | NSN 2815-00-147-0475
Cross Reference | NSN 2815-00-147-0475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10ADE531PC6 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 13ADD531PC6 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 15ADD531PC6 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 7ADD531PC6 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| ADD544A | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| ADE544A | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| MADG531PC6 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-147-0475
Technical Data | NSN 2815-00-147-0475
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B3A DOUBLE THREAD |
| OVERALL HEIGHT | 1.625 INCHES NOMINAL |
| BODY STEPPED INSIDE DIAMETER | 0.289 INCHES NOMINAL FIRST STEP 0.405 INCHES NOMINAL SECOND STEP 0.500 INCHES NOMINAL THIRD STEP |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| SEATING SURFACE SHAPE | FLAT |
| THREAD SERIES DESIGNATOR | UNF FIRST THREADED PORTION UNF SECOND THREADED PORTION |
| NOMINAL THREAD SIZE | 0.625 INCHES FIRST THREADED PORTION 0.750 INCHES SECOND THREADED PORTION |
| THREAD CLASS | 2A FIRST THREADED PORTION 2A SECOND THREADED PORTION |
| THREAD LENGTH | 0.375 INCHES NOMINAL FIRST THREADED PORTION 0.490 INCHES NOMINAL SECOND THREADED PORTION |
| SPECIAL FEATURES | 1.000 IN. HEX WRENCHING FEATURE BETWEEN THREAD ENDS |
Restrictions/Controls & Freight Information | NSN 2815-00-147-0475
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-147-0475
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
