Product Details | ENGINE POPPET VALVE PUSH ROD
2815-00-215-1660 A tubular or solid item specifically designed to transmit intermittent motion from the engine poppet valve tappet to the engine poppet valve rocker arm.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: BM49803, 116540, 2815-00-215-1660, 00-215-1660, 2815002151660, 002151660
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1961 | 00-215-1660 | 22102 ( PUSH ROD, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2815-00-215-1660
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2815-00-215-1660
2815-00-215-4276, 2815-00-215-4526, 2815-00-215-4546, 2815-00-215-4547, 2815-00-215-4558
Technical Data | NSN 2815-00-215-1660
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| END HARDNESS RATING | NOT RATED |
| END CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 18.250 INCHES NOMINAL |

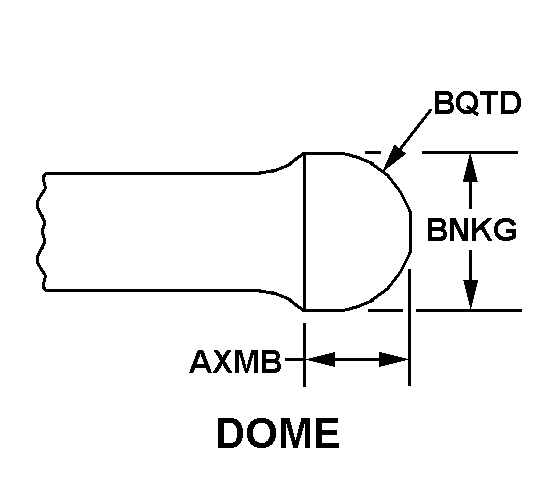

| STYLE DESIGNATOR | K1 DOME ENDS IDENTICAL |
| END LENGTH | 0.375 INCHES NOMINAL ENDS IDENTICAL |
| END LARGEST DIAMETER | 0.750 INCHES NOMINAL ENDS IDENTICAL |
| END SPHERICAL RADIUS | 0.375 INCHES NOMINAL ENDS IDENTICAL |
| BODY TYPE | TUBULAR |
Restrictions/Controls & Freight Information | NSN 2815-00-215-1660
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-215-1660
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Z EA : Each |
