NSN 2815-00-288-3651 AVP10S41033PC13, AVP10S41-033PC13, CL51S610842PC13
Product Details | VALVE SPRING RETAINER LOCK
2815-00-288-3651 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: AVP10S41033PC13, AVP10S41-033PC13, CL51S610842PC13, CL51S61-0842PC13, S610010036PC13, S6100-10036PC13, SS198S410536PC13, SS198S41-0536PC13, SS212S410537PC13, SS212S41-0537PC13, SS253S410537PC13, SS253S41-0537PC13, DD445S61001272PC13, DD445S6100-1272PC13, DD453S6101364PC13, DD453S61-01364PC13, 3301652, 81125S4121049ALT7PC6, 81125S41-21049ALT7PC6, 81125S4121249ALT7PC6, 81125S41-21249ALT7PC6, 2815-00-288-3651, 00-288-3651, 2815002883651, 002883651
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1961 | 00-288-3651 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2815-00-288-3651
Demand History | NSN 2815-00-288-3651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2815-00-288-3651 | 2013-12-350 | 10 | DIBBS |
| 2815-00-288-3651 | 2013-12-335 | 10 | DIBBS |
Cross Reference | NSN 2815-00-288-3651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3301652 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 3301652 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| 81125S41-21049ALT7PC6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 81125S41-21049ALT7PC6 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 81125S41-21249ALT7PC6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 81125S41-21249ALT7PC6 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| AVP10S41-033PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| AVP10S41-033PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| CL51S61-0842PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| CL51S61-0842PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| DD445S6100-1272PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| DD445S6100-1272PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| DD453S61-01364PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| DD453S61-01364PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| S6100-10036PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| S6100-10036PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| SS198S41-0536PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SS198S41-0536PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| SS212S41-0537PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SS212S41-0537PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| SS253S41-0537PC13 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SS253S41-0537PC13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-288-3651
Related Products | NSN 2815-00-288-3651
Technical Data | NSN 2815-00-288-3651
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

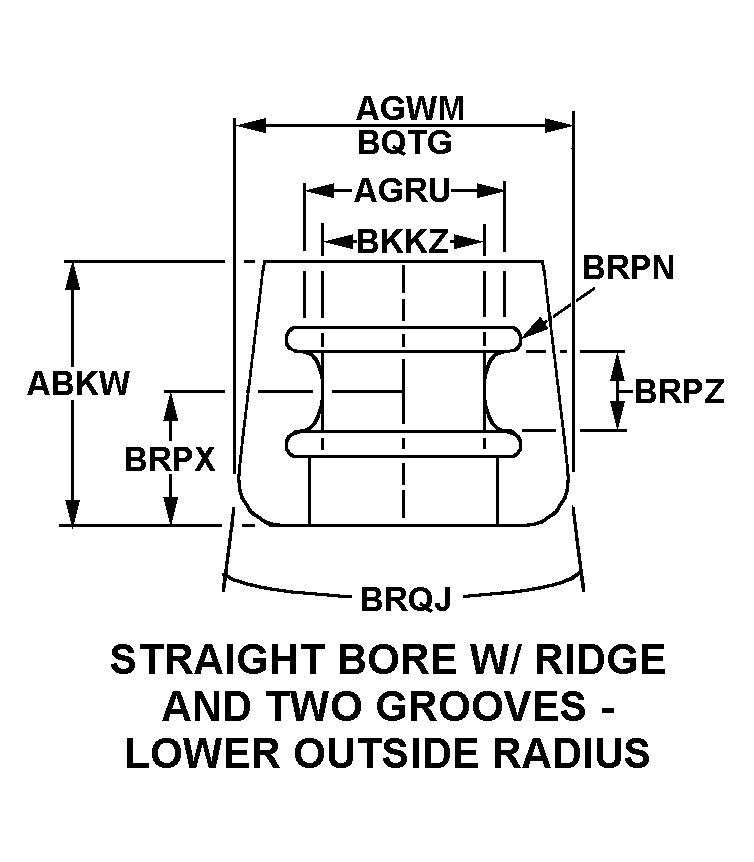

| STYLE DESIGNATOR | L27 STRAIGHT BORE W/RIDGE AND TWO GROOVES-LOWER OUTSIDE RADIUS |
| OVERALL HEIGHT | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| LARGEST INSIDE DIAMETER | 0.430 INCHES MINIMUM AND 0.434 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 0.650 INCHES MINIMUM AND 0.654 INCHES MAXIMUM |
| MINIMUM INSIDE DIAMETER | 0.376 INCHES |
| FIRST RIDGE RADIUS | 0.025 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| DISTANCE FROM BOTTOM TO FIRST RIDGE CENTER | 0.254 INCHES NOMINAL |
| FIRST RIDGE WIDTH | 0.123 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| OUTSIDE INCLUDED ANGLE IN DEG | 14.250 |
| THREAD PROVISION | UNTHREADED |
Restrictions/Controls & Freight Information | NSN 2815-00-288-3651
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-288-3651
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
