NSN 2815-00-423-4398 9160002, 9160-002, 00-423-4398
Product Details | ENGINE POPPET VALVE
2815-00-423-4398 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 9160002, 9160-002, 2815-00-423-4398, 00-423-4398, 2815004234398, 004234398
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1961 | 00-423-4398 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2815-00-423-4398
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-423-4398
Technical Data | NSN 2815-00-423-4398
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, AISI/SAE 3140 OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | NOT RATED |
| HEAD STYLE | 1 FLAT |
| HEAD HEIGHT | 0.3750 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.0000 INCHES NOMINAL |
| NECK RADIUS | 0.3120 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |

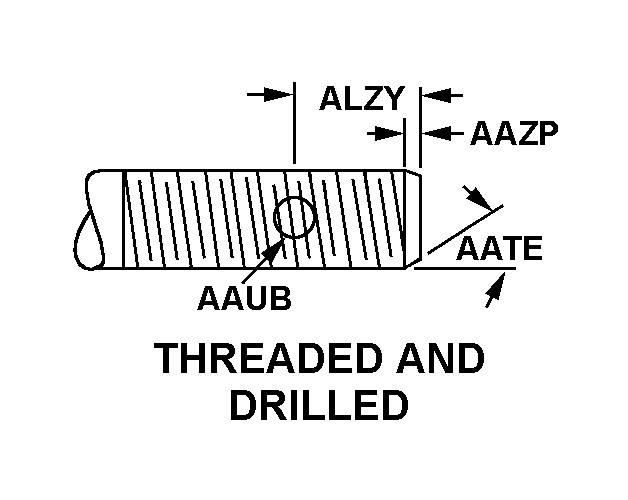

| STEM STYLE | 16 THREADED AND DRILLED |
| HOLE DIAMETER | 0.0930 INCHES NOMINAL |
| CHAMFER LENGTH | 0.0310 INCHES NOMINAL |
| DISTANCE FROM HOLE CENTER TO STEM END | 0.1870 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 45.0 |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.500-20 UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LENGTH | 1.0000 INCHES NOMINAL |
| CARBON RELIEF GROOVE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2815-00-423-4398
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-423-4398
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
