Product Details | INTERNAL COMBUSTION ENGINE PISTON
2815-00-427-0551 00020328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 11683943, 11683943-1, 6552161, 655216-1, 2815-00-427-0551, 00-427-0551, 2815004270551, 004270551, 116839431
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 08 MAY 1974 | 00-427-0551 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |

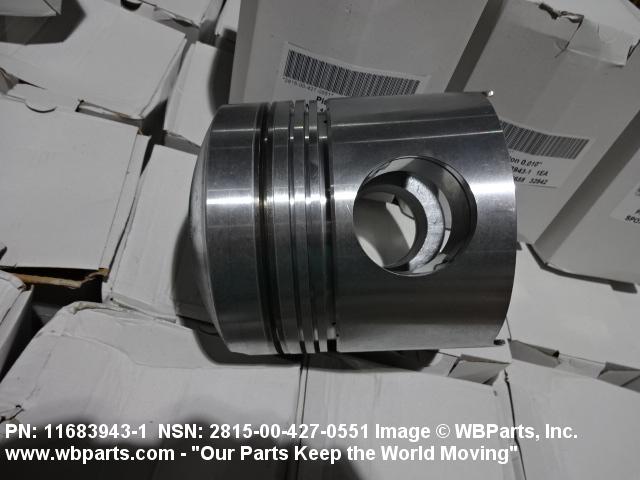

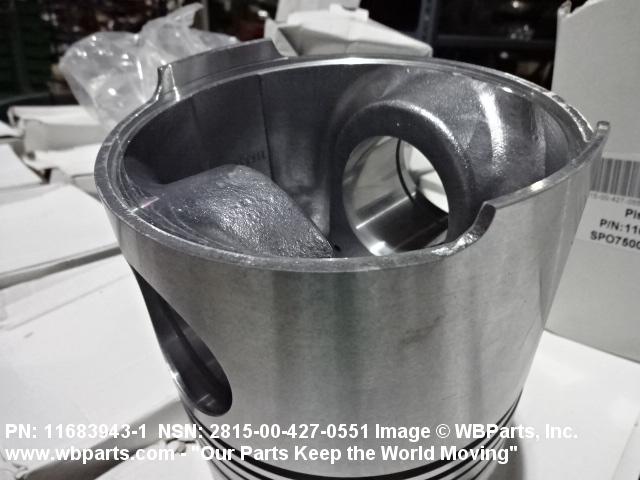

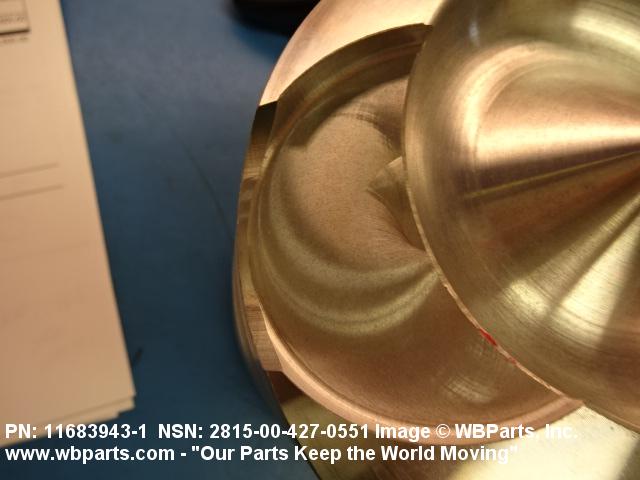

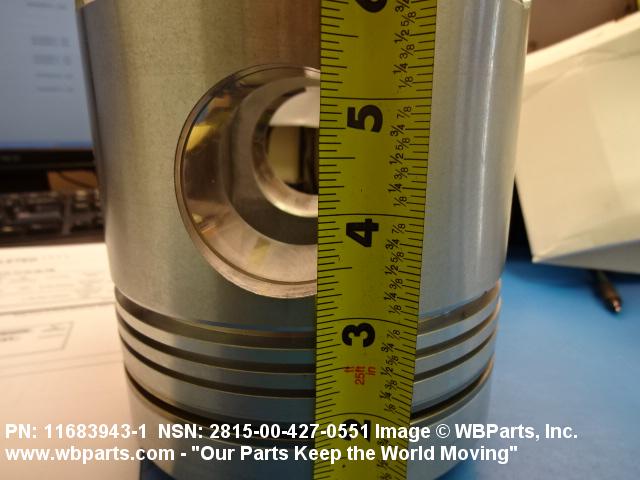

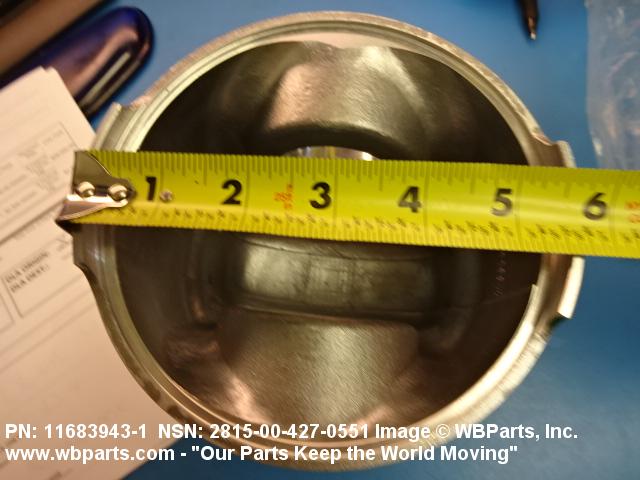

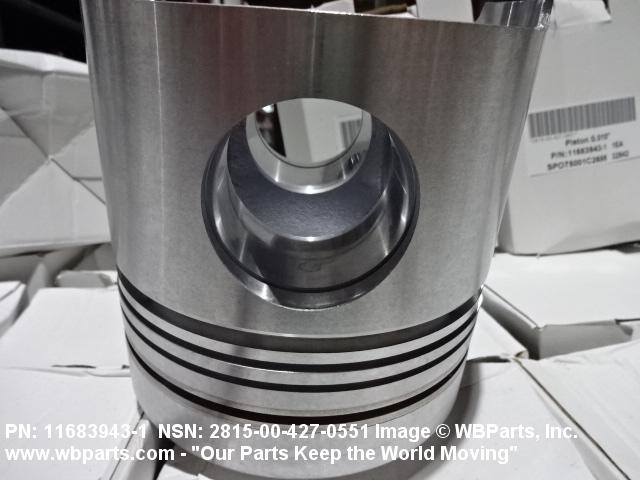

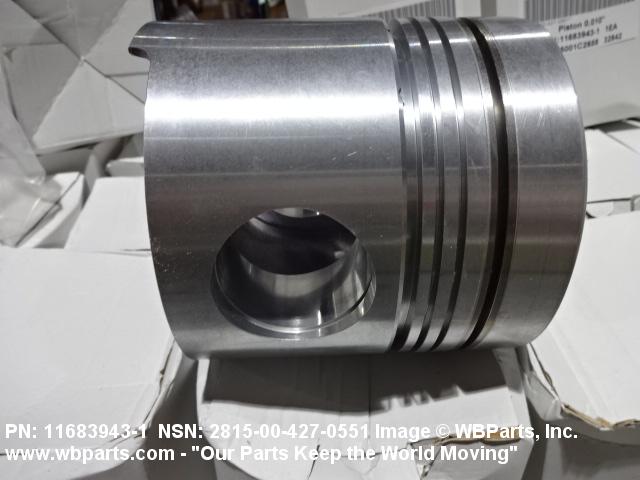

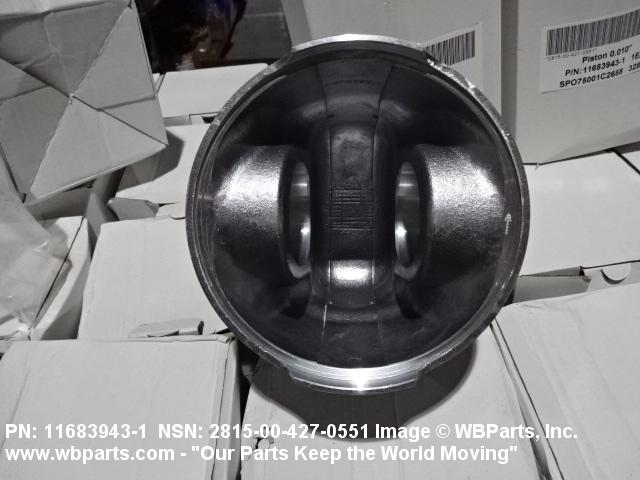

Drawings & Photos | NSN 2815-00-427-0551
Demand History | NSN 2815-00-427-0551
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11683943-1 | 2024-01-31 | 83 | DIBBS |
| 11683943-1 | 2023-08-24 | 120 | DIBBS |
| 11683943-1 | 2023-04-06 | 24 | DIBBS |
| 2815-00-427-0551 | 2022-11-14 | 132 | United States |
| 11683943-1 | 2022-10-17 | 195 | DIBBS |
| 2815-00-427-0551 | 2022-10-10 | 195 | us |
| 11683943-1 | 2022-10-06 | 195 | DIBBS |
| 116839431 | 2022-10-04 | 144 | United States |
| 11683943-1 | 2022-04-11 | 43 | DIBBS |
| 11683943-1 | 2022-03-31 | 43 | DIBBS |
| 11683943 | 2021-12-29 | 300 | US |
| 2815-00-427-0551 | 2021-12-16 | 120 | KR |
| 2815-00-427-0551 | 2021-11-30 | 144 | US |
| 2815-00-427-0551 | 2021-07-28 | 408 | US |
| 11683943-1 | 2021-07-06 | 408 | DIBBS |
| 11683943-1 | 2021-06-03 | 55 | DIBBS |
| 2815-00-427-0551 | 2020-11-30 | 319 | US |
| 2815-00-427-0551 | 2020-05-13 | 319 | US |
| 2815-00-427-0551 | 2020-05-06 | 400 | US |
| 2815-00-427-0551 | 2020-03-26 | 1000 | US |
| 2815-00-427-0551 | 2020-03-25 | 1000 | US |
| 116839431 | 2019-12-16 | 240 | United States |
| 2815-00-427-0551 | 2019-12-11 | 240 | US |
| 2815-00-427-0551 | 2019-12-09 | 12 | US |
| 2815-00-427-0551 | 2019-09-25 | 240 | us |
| 2815-00-427-0551 | 2019-09-24 | 1200 | EG |
| 116839431 | 2019-08-20 | 240 | us |
| 116839431 | 2019-08-19 | 240 | US |
| 11683943-1 | 2019-03-08 | 2153 | DIBBS |
| 2815-00-427-0551 | 2019-01-30 | 200 | United States |
| 2815-00-427-0551 | 2019-01-17 | 160 | Taiwan |
| 11683943-1 | 2019-01-17 | 60 | DIBBS |
| 2815-00-427-0551 | 2019-01-15 | 150 | TW |
| 11683943-1 | 2019-01-15 | 200 | DIBBS |
| 2815-00-427-0551 | 2018-12-10 | 60 | DIBBS |
| 2815-00-427-0551 | 2018-12-06 | 71 | DIBBS |
| 2815-00-427-0551 | 2018-12-06 | 60 | DIBBS |
| 2815-00-427-0551 | 2018-11-29 | 60 | KR |
| 2815-00-427-0551 | 2018-11-29 | 60 | DIBBS |
| 2815-00-427-0551 | 2018-11-18 | 71 | DIBBS |
| 2815-00-427-0551 | 2018-11-15 | 1340 | DIBBS |
| 2815-00-427-0551 | 2018-11-14 | 60 | DIBBS |
| 2815-00-427-0551 | 2018-09-17 | 200 | DIBBS |
| 2815-00-427-0551 | 2018-07-19 | 42 | DIBBS |
| 116839431 | 2018-04-24 | 100 | Saudi Arabia |
| 2815-00-427-0551 | 2018-02-05 | 460 | DIBBS |
| 2815-00-427-0551 | 2018-01-09 | 130 | DIBBS |
| 11683943 | 2017-11-15 | 308 | US |
| 116839431 | 2017-11-15 | 200 | US |
| 2815-00-427-0551 | 2017-08-01 | 376 | DIBBS |
| 2815-00-427-0551 | 2017-07-30 | 376 | DIBBS |
| 2815-00-427-0551 | 2017-06-19 | 376 | DIBBS |
| 2815-00-427-0551 | 2017-06-07 | 376 | DIBBS |
| 2815-00-427-0551 | 2017-01-23 | 1 | DIBBS-RFPs |
| 2815-00-427-0551 | 2017-01-02 | 355 | DIBBS |
| 2815-00-427-0551 | 2016-09-22 | 91 | DIBBS |
| 2815-00-427-0551 | 2016-09-12 | 91 | DIBBS |
| 2815-00-427-0551 | 2016-09-07 | 34 | DIBBS |
| 2815-00-427-0551 | 2016-07-31 | 121 | DIBBS |
| 2815-00-427-0551 | 2016-01-06 | 296 | DIBBS |
| 2815-00-427-0551 | 2015-04-02 | 36 | US |
| 2815-00-427-0551 | 2015-01-22 | 389 | DIBBS |
| 2815-00-427-0551 | 2015-01-14 | 104 | DIBBS |
| 2815-00-427-0551 | 2015-01-06 | 200 | DIBBS |
| 2815-00-427-0551 | 2014-12-25 | 89 | DIBBS |
| 2815-00-427-0551 | 2014-06-09 | 150 | DIBBS |
| 2815-00-427-0551 | 2014-05-04 | 113 | DIBBS |
| 2815-00-427-0551 | 2013-11-26 | 317 | DIBBS |
| 2815-00-427-0551 | 2013-10-31 | 200 | DIBBS |
| 2815-00-427-0551 | 2013-06-27 | 124 | DIBBS |
| 2815-00-427-0551 | 2013-06-12 | 108 | JO |
| 2815-00-427-0551 | 2013-05-02 | 124 | DIBBS |
| 2815-00-427-0551 | 2013-04-08 | 240 | us |
| 2815-00-427-0551 | 2013-03-19 | 5 | US |
| 2815-00-427-0551 | 2012-08-13 | 401 | DIBBS |
| 2815-00-427-0551 | 2012-06-06 | 348 | DIBBS |
| 2815-00-427-0551 | 2012-04-27 | 480 | Spain |
| 2815-00-427-0551 | 2010-06-25 | 145 | DIBBS |
| 2815-00-427-0551 | 2009-07-01 | 340 | DIBBS |
| 2815-00-427-0551 | 2007-06-05 | 100 | Netherlands |
| 2815-00-427-0551 | 2007-04-10 | 226 | DIBBS |
| 2815-00-427-0551 | 2007-04-10 | 287 | DIBBS |
| 2815-00-427-0551 | 2007-04-05 | 488 | DIBBS |
| 2815-00-427-0551 | 2007-03-28 | 624 | DIBBS |
| 2815-00-427-0551 | 2007-03-08 | 515 | DIBBS |
| 2815-00-427-0551 | 2007-02-16 | 424 | DIBBS |
| 2815-00-427-0551 | 2007-01-26 | 424 | DIBBS |
Cross Reference | NSN 2815-00-427-0551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11683943 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 11683943-1 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
| 11683943-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 11683943-1 | 32842 | MINOWITZ MANUFACTURING CO. |
| 11683943-1 | 6R738 | MACTEK INDUSTRIES CORP |
| 655216-1 | 02978 | L-3 COMMUNICATIONS CORPORATION DBA COMBAT PROPULSION SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2815-00-427-0551
Related Products | NSN 2815-00-427-0551
2815-00-427-0553, 2815-00-427-3004, 2815-00-427-3612, 2815-00-427-3762, 2815-00-427-4095
Technical Data | NSN 2815-00-427-0551

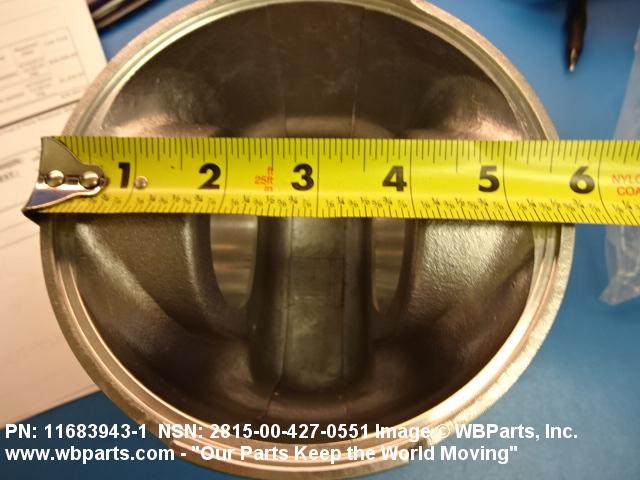

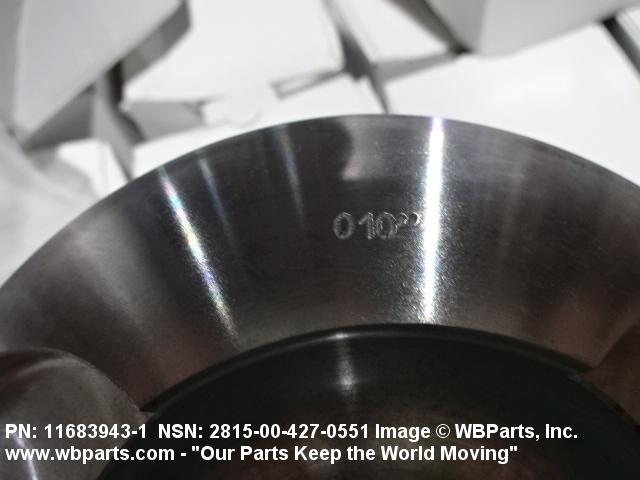

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CAST |
| DIAMETER | 5.695 INCHES MINIMUM AND 5.703 INCHES MAXIMUM |
| OVERALL HEIGHT | 6.870 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | OVERSIZE |
| OVERSIZE | 0.010 INCHES NOMINAL |
| WEIGHT | 126.3 OUNCES |

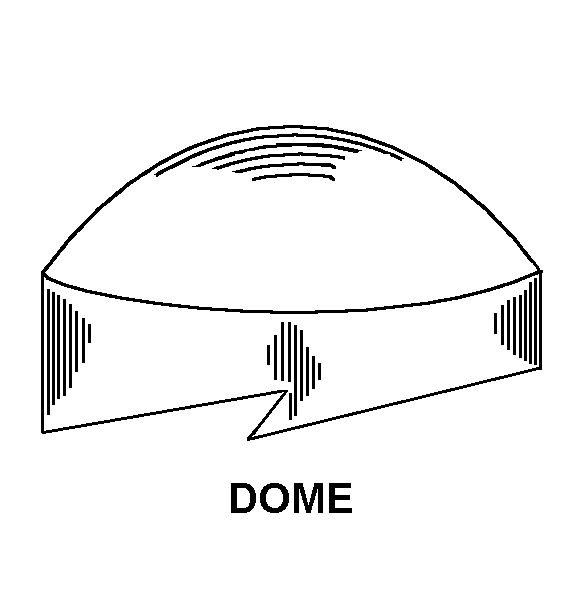

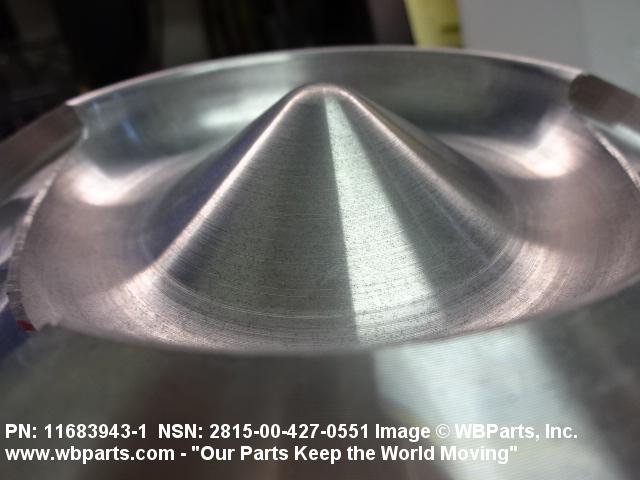

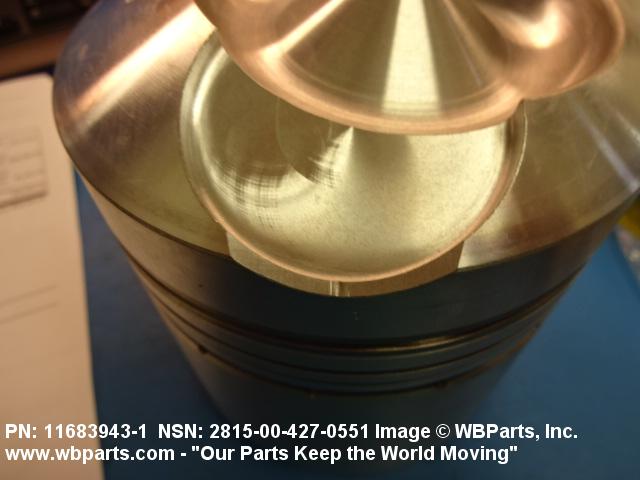

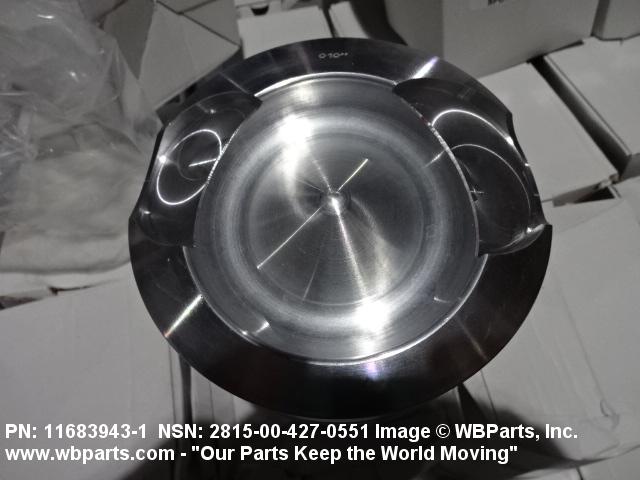

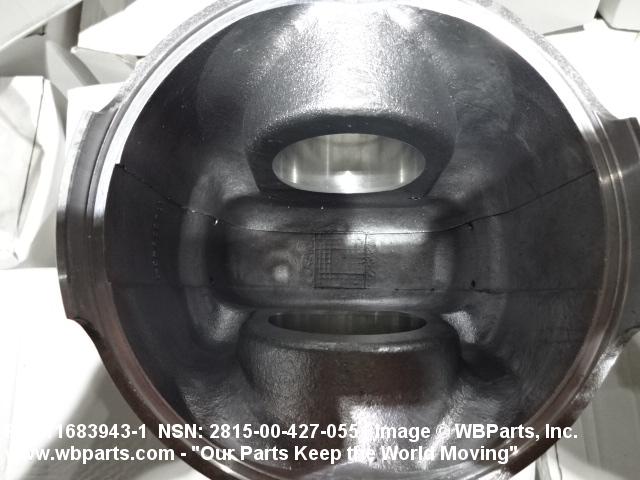

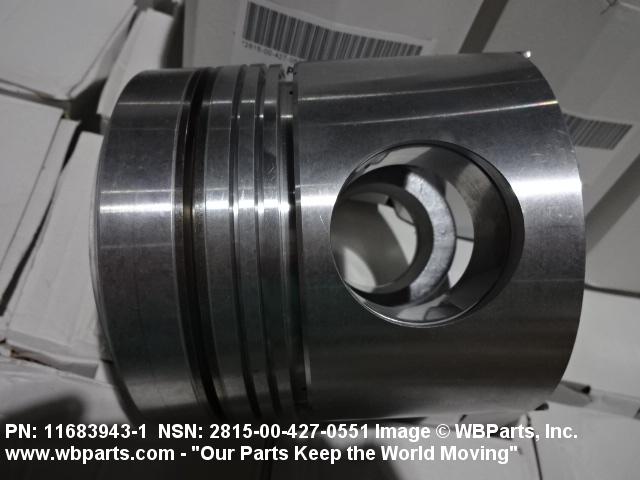

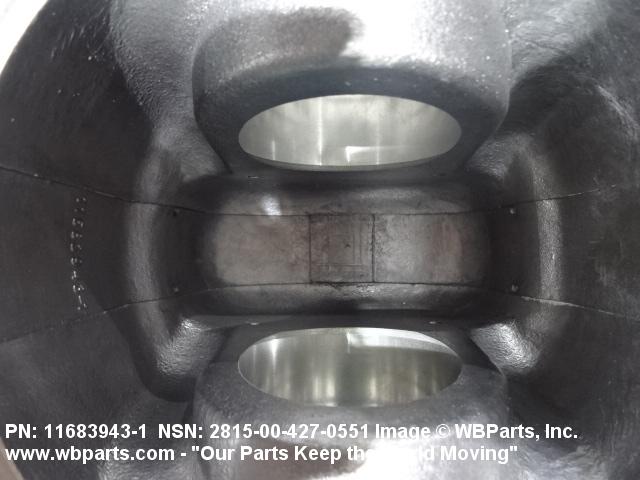

| HEAD STYLE | B5 DOME |
| SKIRT TYPE | SEMISPLIT |
| SKIRT BOTTOM CUTAWAY FEATURE | INCLUDED |
| CUT DEPTH | 5.120 INCHES NOMINAL |
| RING GROOVE QUANTITY | 4 |
| RING GROOVE POSITION | NUMBER 1,NUMBER 2,NUMBER 3 AND NUMBER 4 |
| RING GROOVE WIDTH | 0.0995 INCHES MINIMUM AND 0.1005 INCHES MAXIMUM 0.0990 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM 0.0980 INCHES MINIMUM AND 0.0990 INCHES MAXIMUM 0.1880 INCHES MINIMUM AND 0.0990 INCHES MAXIMUM |
| GROOVE TAPER ANGLE | 7 DEGREE 20 MINUTES PLUS 10 MINUTES |
| RING GROOVE DIAMETER | 5.197 INCHES MINIMUM 5.202 INCHES MAXIMUM 5.220 INCHES MINIMUM 5.230 INCHES MAXIMUM 5.220 INCHES MINIMUM 5.230 INCHES MAXIMUM 5.179 INCHES MINIMUM 1.189 INCHES MAXIMUM |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 4.750 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 2.1268 INCHES MINIMUM AND 2.1270 INCHES MAXIMUM |
| RETAINING RING GROOVE | NOT INCLUDED |
| PIN | NOT INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 11683943-1 |
