NSN 2815-00-528-6073 8076, 00-528-6073, 005286073
Product Details | VALVE SPRING RETAINER LOCK
2815-00-528-6073 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.20428050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps
Part Alternates: 8076, 2815-00-528-6073, 00-528-6073, 2815005286073, 005286073
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-528-6073 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
Drawings & Photos | NSN 2815-00-528-6073
Cross Reference | NSN 2815-00-528-6073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8076 | 15434 | CUMMINS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-528-6073
Technical Data | NSN 2815-00-528-6073
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,SAE 1020 |
| METALLIC HARDNESS RATING | 77.0 NOMINAL ROCKWELL B |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

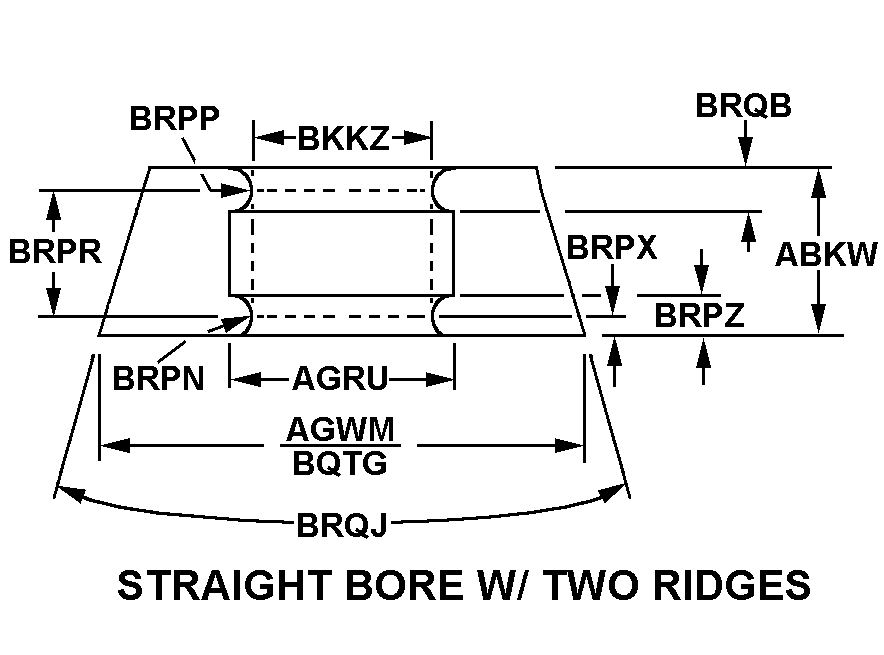

| STYLE DESIGNATOR | L15 STRAIGHT BORE W/TWO RIDGES |
| OVERALL HEIGHT | 0.558 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| LARGEST INSIDE DIAMETER | 0.750 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER | 1.030 INCHES MINIMUM AND 1.032 INCHES MAXIMUM |
| FIRST GROOVE WIDTH | 0.190 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| MINIMUM INSIDE DIAMETER | 0.625 INCHES |
| LARGEST OUTSIDE WIDTH | 0.200 INCHES NOMINAL |
| FIRST RIDGE RADIUS | 0.275 INCHES NOMINAL |
| SECOND RIDGE RADIUS | 0.275 INCHES NOMINAL |
| DISTANCE BETWEEN FIRST AND SECOND RIDGE CENTERS | 0.323 INCHES NOMINAL |
| DISTANCE FROM BOTTOM TO FIRST RIDGE CENTER | 0.092 INCHES NOMINAL |
| DISTANCE FROM BOTTOM TO FIRST GROOVE CENTER | 0.278 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| FIRST RIDGE WIDTH | 0.184 INCHES NOMINAL |
| SECOND RIDGE WIDTH | 0.184 INCHES NOMINAL |
| OUTSIDE INCLUDED ANGLE IN DEG | 11.0 |
| THREAD PROVISION | UNTHREADED |
Restrictions/Controls & Freight Information | NSN 2815-00-528-6073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-528-6073
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
