NSN 2815-01-074-0078 C41338, R51735, R73064/R83071
Product Details | ENGINE POPPET VALVE
2815-01-074-0078 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: C41338, R51735, R73064/R83071, R73064R83071, 2815-01-074-0078, 01-074-0078, 2815010740078, 010740078
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 24 MAR 1979 | 01-074-0078 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2815-01-074-0078
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-01-074-0078
Technical Data | NSN 2815-01-074-0078
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | NOT RATED |
| HEAD STYLE | 1 FLAT |
| HEAD HEIGHT | 0.1600 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.8200 INCHES NOMINAL |
| NECK RADIUS | 0.5000 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 30.0 |

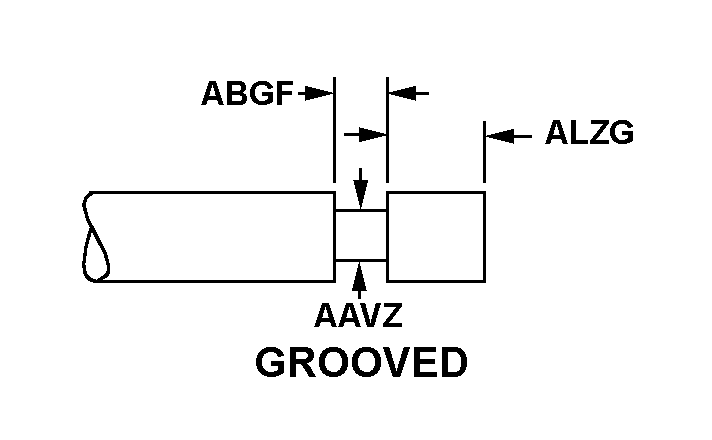

| STEM STYLE | 17 GROOVED |
| GROOVE DIAMETER | 0.3330 INCHES NOMINAL |
| GROOVE WIDTH | 0.0900 INCHES NOMINAL |
| STEM LENGTH | 5.0000 INCHES NOMINAL |
| STEM DIAMETER | 0.3750 INCHES NOMINAL |
| DISTANCE FROM GROOVE TO STEM END | 0.3410 INCHES NOMINAL |
| CARBON RELIEF GROOVE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2815-01-074-0078
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-01-074-0078
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
