NSN 2815-01-080-9462 5S6917, 01-080-9462, 010809462
Product Details | VALVE TAPPET ADJUSTING SCREW
2815-01-080-9462 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 5S6917, 2815-01-080-9462, 01-080-9462, 2815010809462, 010809462
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 04 AUG 1979 | 01-080-9462 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
Drawings & Photos | NSN 2815-01-080-9462
Cross Reference | NSN 2815-01-080-9462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5S6917 | 11083 | CATERPILLAR INC. DBA CATERPILLAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-01-080-9462
Technical Data | NSN 2815-01-080-9462
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |
| SURFACE TREATMENT | BLACK OXIDE |

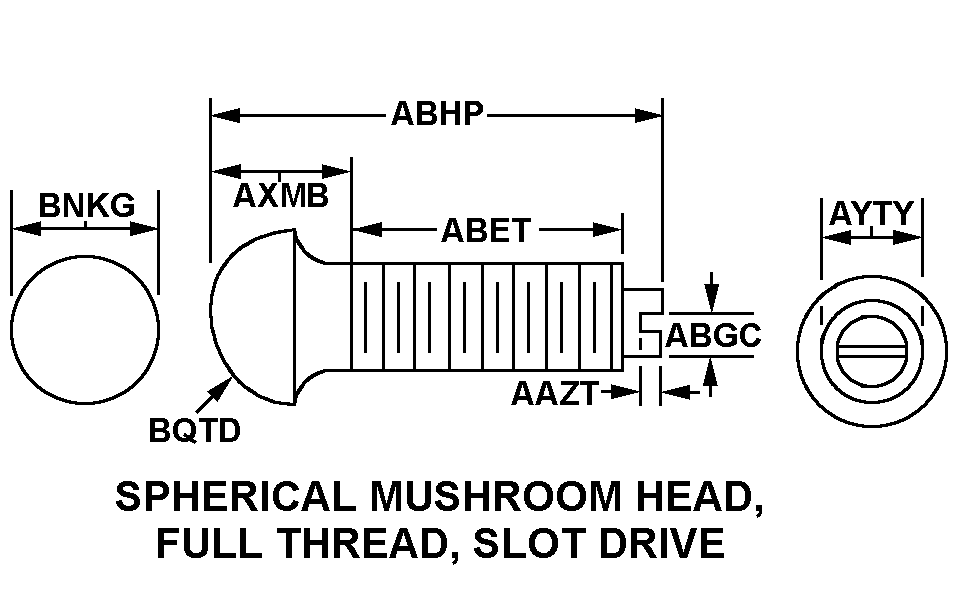

| STYLE DESIGNATOR | T3 SPHERICAL MUSHROOM HEAD, FULL THREAD, SLOT DRIVE |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| THREAD LENGTH | 1.125 INCHES |
| SLOT WIDTH | 0.063 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| END LENGTH | 0.375 INCHES NOMINAL |
| SMALLEST DIAMETER | 0.313 INCHES NOMINAL |
| END LARGEST DIAMETER | 0.368 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.184 INCHES NOMINAL |
| THREAD SIZE | 3/8-24 |
| THREAD SERIES | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 11083 |
| DESIGN CONTROL REFERENCE | 5S6917 |
Restrictions/Controls & Freight Information | NSN 2815-01-080-9462
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
