NSN 2815-01-085-5190 AR11780, 217929, 01-085-5190
Product Details | ENGINE POPPET VALVE PUSH ROD
2815-01-085-5190 A tubular or solid item specifically designed to transmit intermittent motion from the engine poppet valve tappet to the engine poppet valve rocker arm.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: AR11780, 217929, 2815-01-085-5190, 01-085-5190, 2815010855190, 010855190
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 09 NOV 1979 | 01-085-5190 | 22102 ( PUSH ROD, ENGINE POPPET VALVE ) |
Drawings & Photos | NSN 2815-01-085-5190
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-01-085-5190
Technical Data | NSN 2815-01-085-5190
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| END HARDNESS RATING | NOT RATED |
| END CASEHARDENING INDICATOR | CASEHARDENED |
| BODY OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 17.688 INCHES NOMINAL |

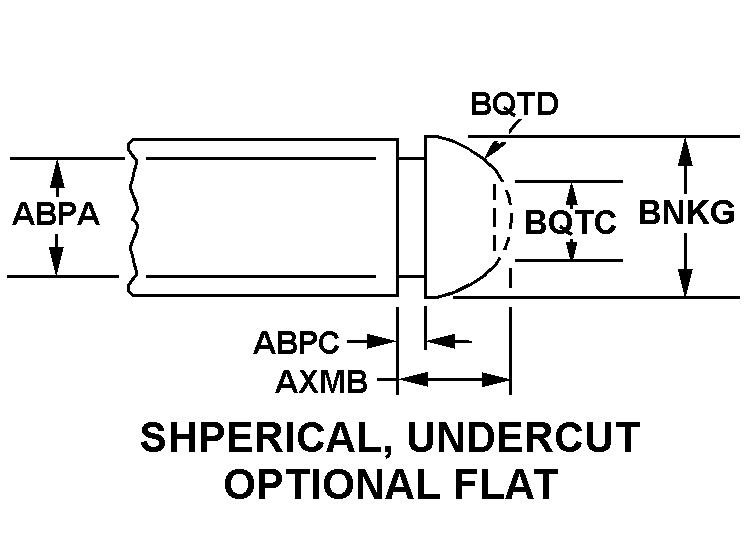

| STYLE DESIGNATOR | K6 SPHERICAL, UNDERCUT OPTIONAL FLAT FIRST END |
| UNDERCUT DIAMETER | K10 CONCAVE SECOND END |
| UNDERCUT WIDTH | 0.525 INCHES NOMINAL FIRST END |
| END LENGTH | 0.125 INCHES NOMINAL FIRST END 0.387 INCHES NOMINAL FIRST END |
| END LARGEST DIAMETER | 0.425 INCHES NOMINAL SECOND END 0.615 INCHES NOMINAL FIRST END |
| END SPHERICAL RADIUS | 0.626 INCHES NOMINAL SECOND END 0.313 INCHES NOMINAL FIRST END |
| SPHERICAL RADIUS DEPTH | 0.250 INCHES NOMINAL SECOND END |
| BODY TYPE | 0.280 INCHES NOMINAL SECOND END TUBULAR |
Restrictions/Controls & Freight Information | NSN 2815-01-085-5190
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
