Product Details | PISTON PIN
2815-01-180-5946 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: P104640, P12615042, P12615884, 2815-01-180-5946, 01-180-5946, 2815011805946, 011805946
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 31 MAY 1984 | 01-180-5946 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2815-01-180-5946
Demand History | NSN 2815-01-180-5946
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2815-01-180-5946 | 2018-06-154 | 7 | DIBBS |
| 2815-01-180-5946 | 2018-05-130 | 6 | DIBBS |
| 2815-01-180-5946 | 2013-09-254 | 6 | DIBBS |
| 2815-01-180-5946 | 2013-06-164 | 2 | DIBBS |
| 2815-01-180-5946 | 2013-04-93 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-01-180-5946
Technical Data | NSN 2815-01-180-5946
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| METALLIC HARDNESS RATING | 60.0 MINIMUM ROCKWELL C AND 64.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |
| BODY STYLE | 1C PLAIN ENDS |
| OUTSIDE DIAMETER | 6.69240 INCHES NOMINAL |
| BODY LENGTH | 14.0890 INCHES NOMINAL |
| BORE STYLE | 1 INSIDE CHAMFER STRAIGHT-THRU BORE |
| BORE DIAMETER | 2.3050 INCHES NOMINAL |
| COUNTERSINK ANGLE IN DEG | 30.0 |

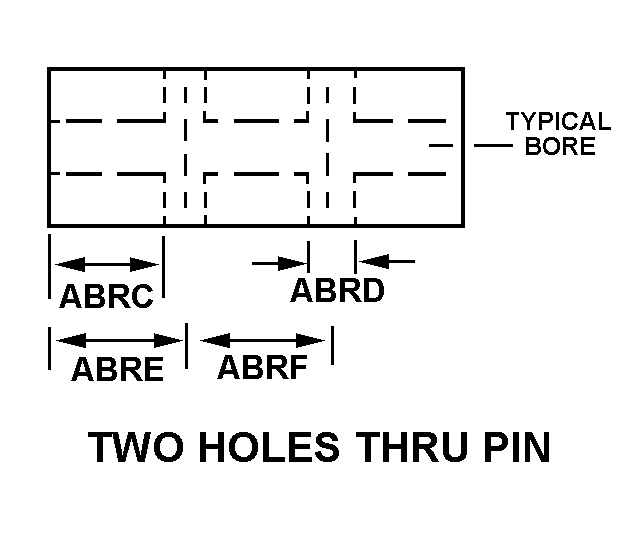

| HOLE ARRANGEMENT STYLE | 4 TWO HOLES THRU PIN |
