Product Details | PISTON CONNECTING ROD
2815-01-201-7788 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.20725300060Vehicular Brake, Steering, Axle, Wheel, and Track Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: SYB4082, RAB8568 , 15420722, 1542072-2, 3581063, 35810639, 3581063-9 , 860381 , 8603813, 860381-3, 2815-01-201-7788, 01-201-7788, 2815012017788, 012017788
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 22 FEB 1985 | 01-201-7788 | 60266 ( CONNECTING ROD, PISTON ) |

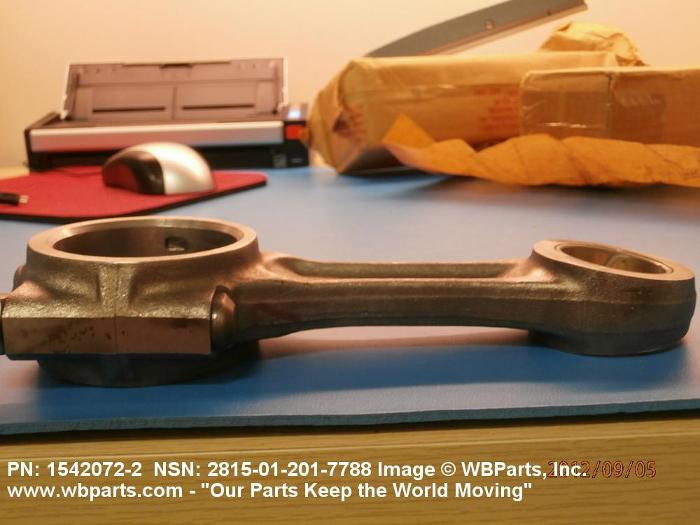

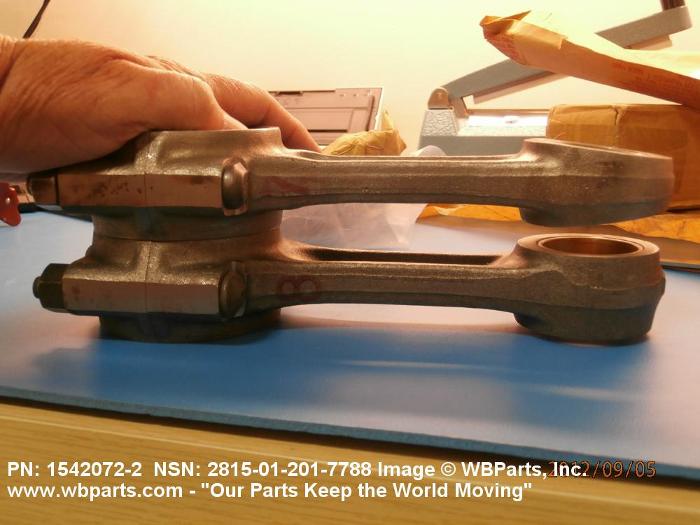

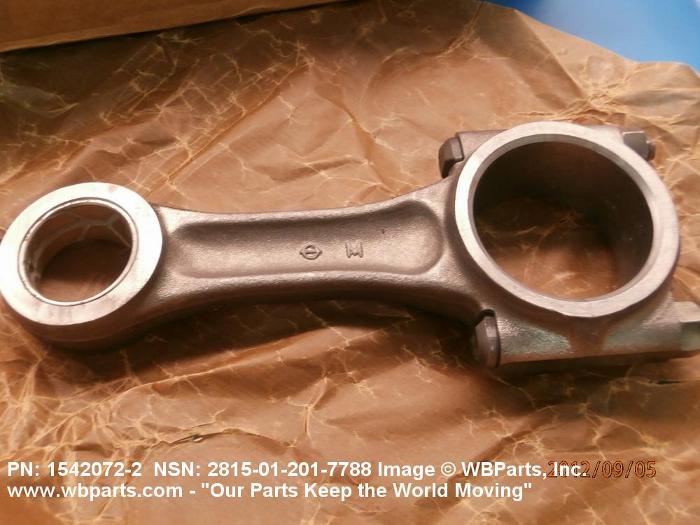

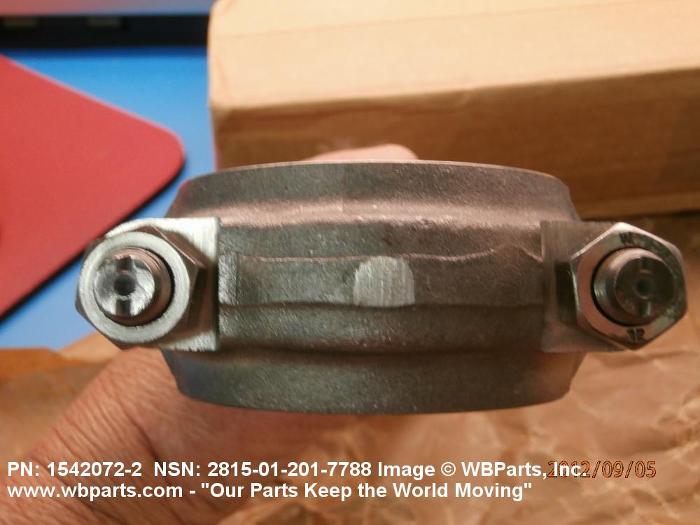

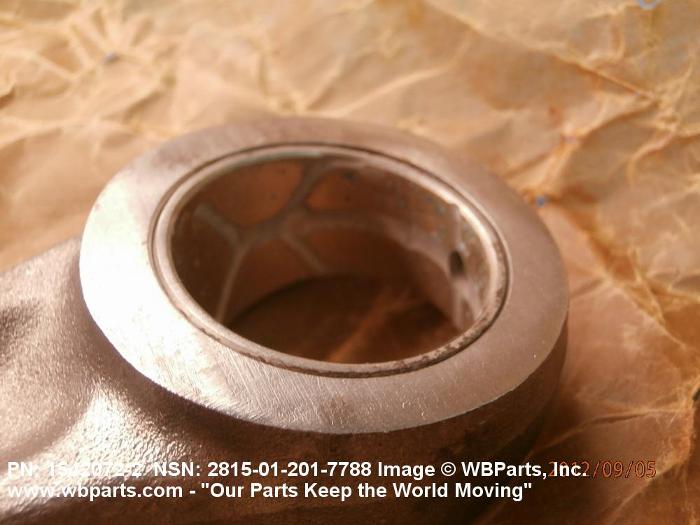

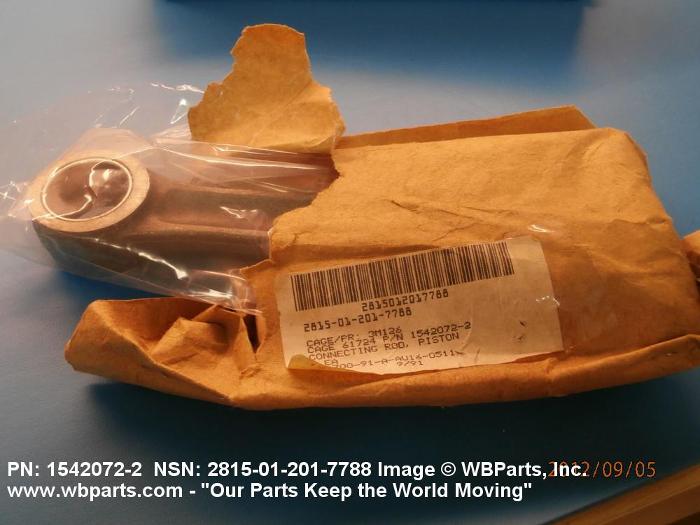

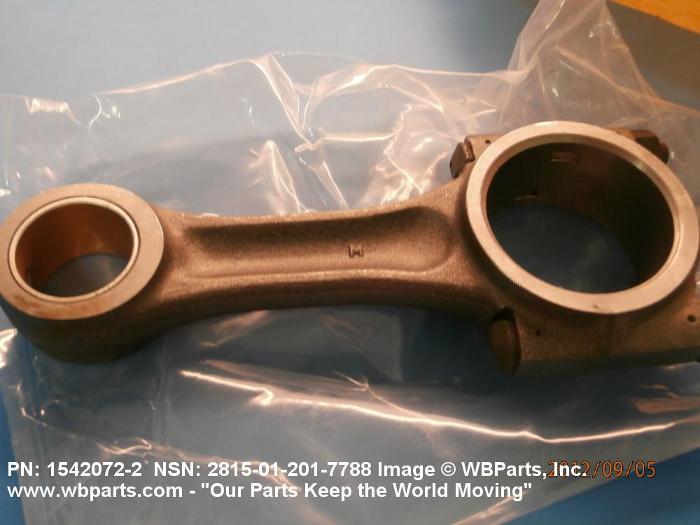

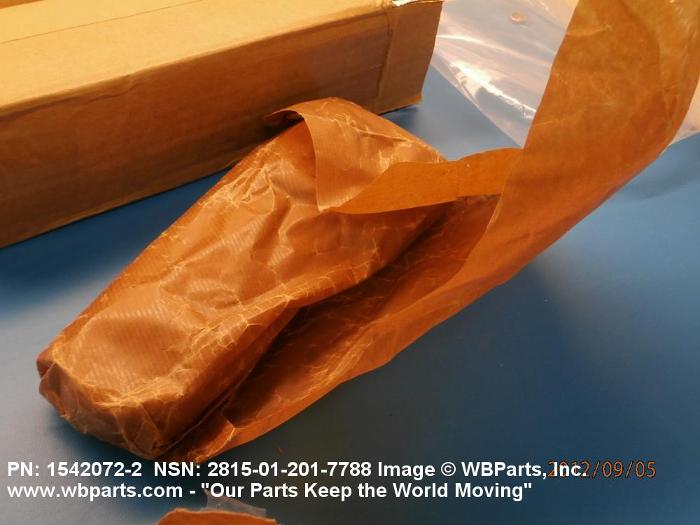

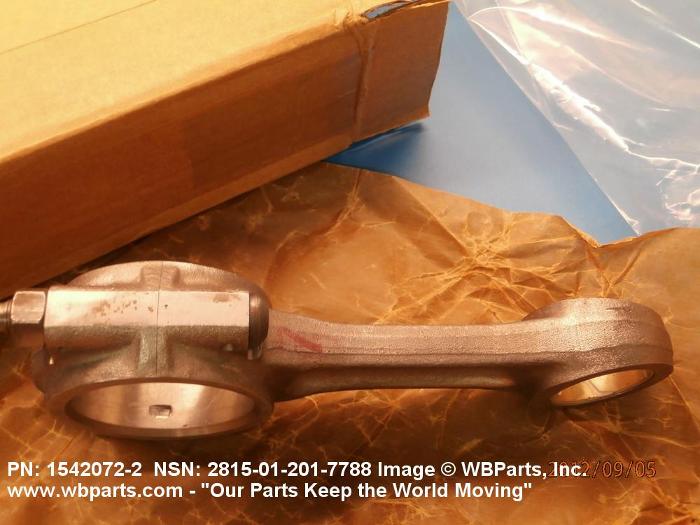

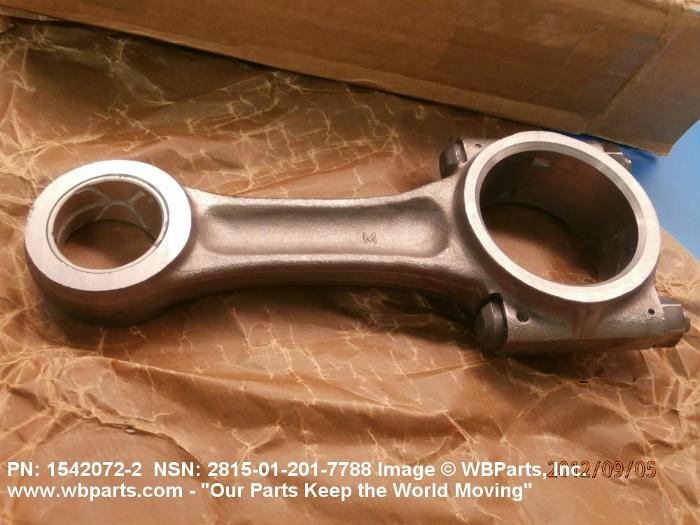

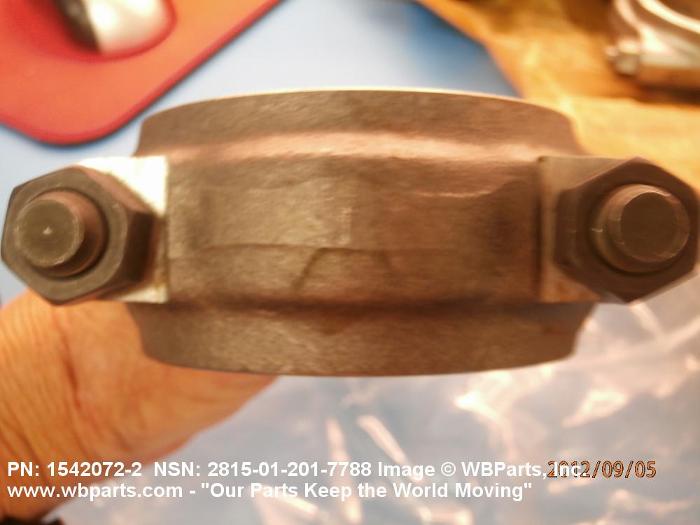

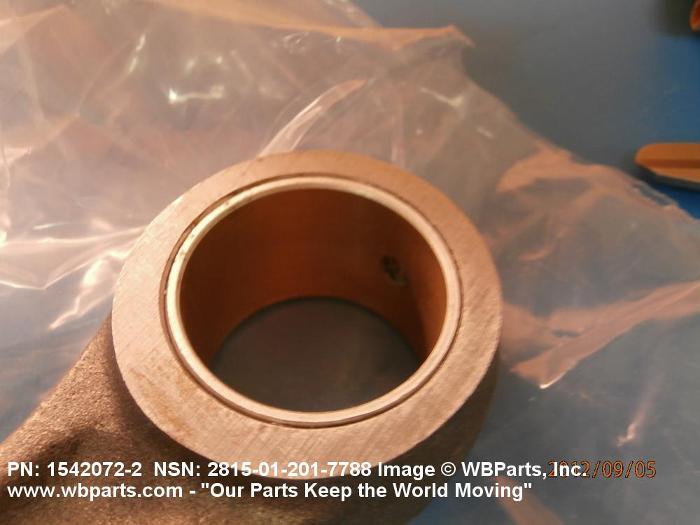

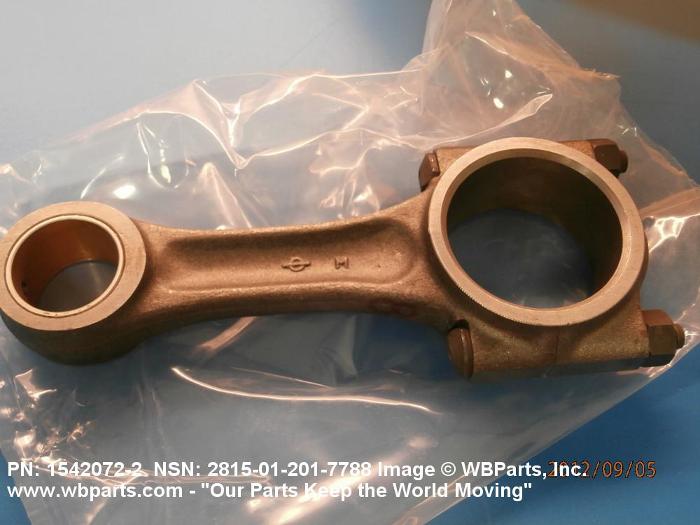

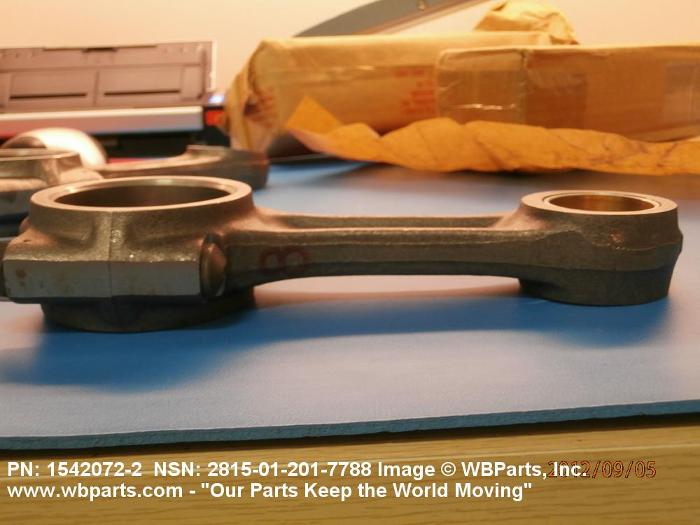

Drawings & Photos | NSN 2815-01-201-7788
Demand History | NSN 2815-01-201-7788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2815-01-201-7788 | 2023-08-05 | 1 | UK |
| 8603813 | 2021-02-15 | 1 | MY |
| 8603813 | 2021-01-29 | 17 | US |
| 8603813 | 2021-01-28 | 16 | US |
| 2815-01-201-7788 | 2021-01-27 | 16 | MY |
| 2815-01-201-7788 | 2020-11-29 | 1 | PT |
| 15420722 | 2015-04-22 | 1 | UK |
| 15420722 | 2012-08-23 | 2 | United States |
| 2815-01-201-7788 | 2007-10-09 | 9 | DIBBS |
| 2815-01-201-7788 | 2007-10-05 | 4 | DIBBS |
| 2815-01-201-7788 | 2007-09-07 | 6 | DIBBS |
| 2815-01-201-7788 | 2007-07-13 | 8 | DIBBS |
Cross Reference | NSN 2815-01-201-7788
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1542072-2 | 61724 | VOLVO PENTA OF THE AMERICAS INC |
| 1542072-2 | S3662 | AB VOLVO PENTA |
| 3581063 | 61724 | VOLVO PENTA OF THE AMERICAS INC |
| 3581063 | S3662 | AB VOLVO PENTA |
| 3581063-9 | S3662 | AB VOLVO PENTA |
| 860381 | S3662 | AB VOLVO PENTA |
| 860381-3 | 61724 | VOLVO PENTA OF THE AMERICAS INC |
| 860381-3 | S3662 | AB VOLVO PENTA |
| RAB8568 | F3015 | DCNS NAVIRES ARMES LORIENT |
| SYB4082 | F3015 | DCNS NAVIRES ARMES LORIENT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2815-01-201-7788
2815-01-201-7853, 2815-01-201-8177, 2815-01-201-8178, 2815-01-201-8179, 2815-01-201-8180
Technical Data | NSN 2815-01-201-7788
| Characteristic | Specifications |
|---|---|
| STRENGTH RATING | NOT RATED |
| METALLIC HARDNESS RATING | NOT RATED |
| PISTON CONNECTING END BEARING | NOT INCLUDED |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | NOT INCLUDED |
| SHAFT CONNECTING END BEARING | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | NOT INCLUDED |
| CROSS-SECTIONAL SHAPE STYLE | G1 I-SECTION TYPE |
Restrictions/Controls & Freight Information | NSN 2815-01-201-7788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104340 | BARS/RODS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-01-201-7788
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
