NSN 2825-00-221-5395 LA91141, 91141, 91141001
Product Details | PISTON RING
2825-00-221-5395 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: LA91141, 91141, 91141001, 91141-001 , 2825-00-221-5395, 00-221-5395, 2825002215395, 002215395
Engines, Turbines, and Components | Steam Turbines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 25 JUN 1969 | 00-221-5395 | 11459 ( RING, PISTON ) |

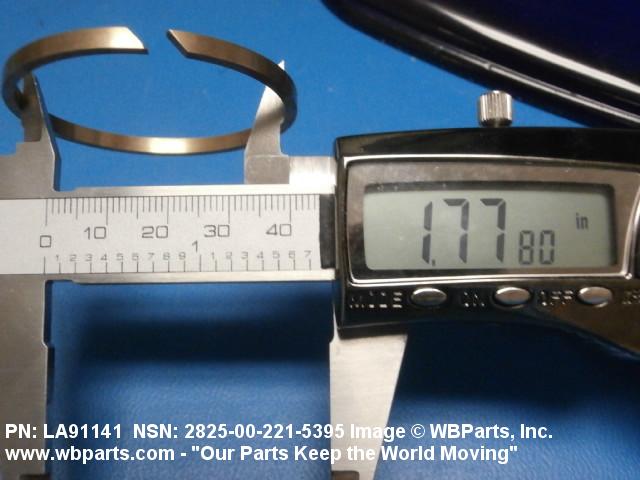

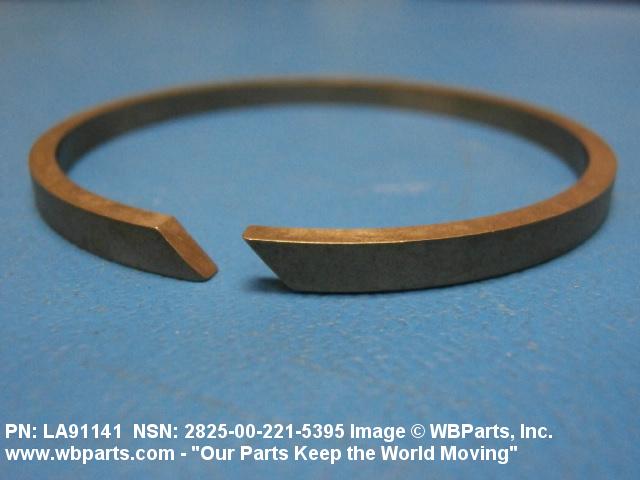

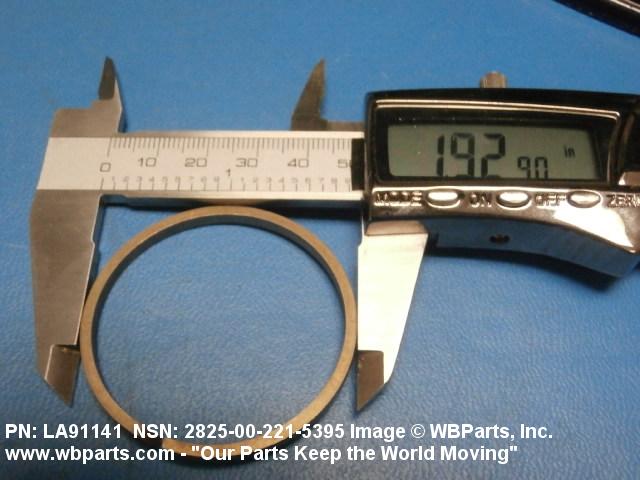

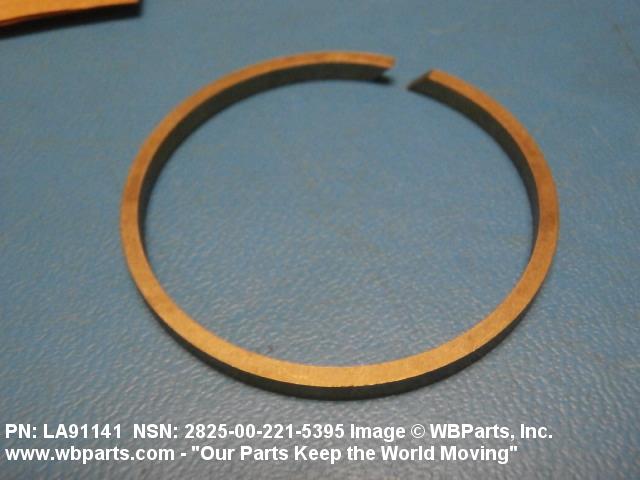

Drawings & Photos | NSN 2825-00-221-5395
Demand History | NSN 2825-00-221-5395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 91141 | 2020-04-97 | 16 | US |
| 2825-00-221-5395 | 2017-11-306 | 2 | DIBBS |
| 2825-00-221-5395 | 2015-08-235 | 2 | DIBBS |
| 2825-00-221-5395 | 2015-08-231 | 3 | us |
| 2825-00-221-5395 | 2015-05-130 | 3 | DIBBS |
| 2825-00-221-5395 | 2013-10-304 | 2 | DIBBS |
| 2825-00-221-5395 | 2010-11-305 | 22 | DIBBS |
| 2825-00-221-5395 | 2010-06-171 | 1 | DIBBS |
| 2825-00-221-5395 | 2010-01-29 | 3 | DIBBS |
| 2825-00-221-5395 | 2009-10-283 | 7 | DIBBS |
| 2825-00-221-5395 | 2007-10-292 | 4 | DIBBS |
Cross Reference | NSN 2825-00-221-5395
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 91141 | 0BR59 | DRESSER-RAND COMPANY DBA STEAM TRBINE MTR GENERATOR DIV |
| 91141 | 93235 | TURBODYNE DIV OF DRESSER INDUSTRIES INC |
| 91141-001 | 0BR59 | DRESSER-RAND COMPANY DBA STEAM TRBINE MTR GENERATOR DIV |
| LA91141 | 0BR59 | DRESSER-RAND COMPANY DBA STEAM TRBINE MTR GENERATOR DIV |
| LA91141 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| LA91141 | 93235 | TURBODYNE DIV OF DRESSER INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2825-00-221-5395
Technical Data | NSN 2825-00-221-5395
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 7322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |
| JOINT STYLE | 1 VERTICAL JOINT |
| RING STYLE | 1 CONCENTRIC |

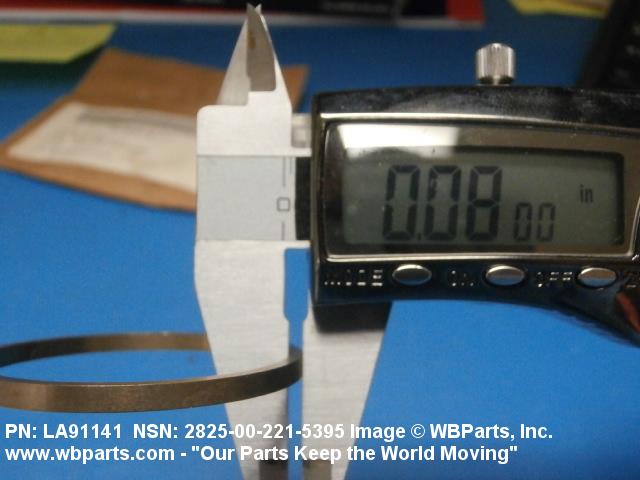

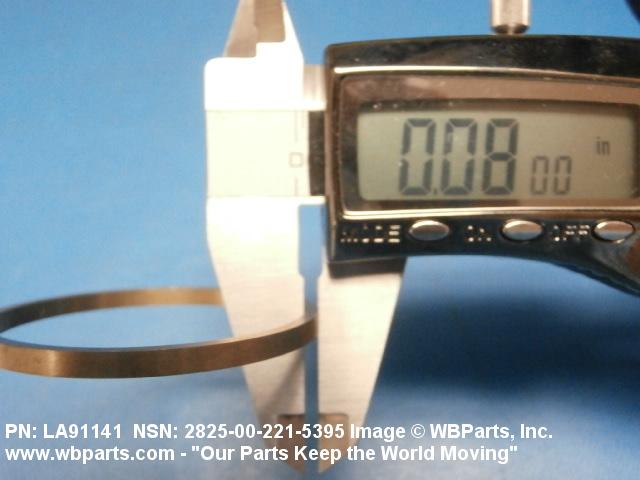

| RADIAL WALL THICKNESS | 0.0750 INCHES MINIMUM AND 0.0850 INCHES MAXIMUM |

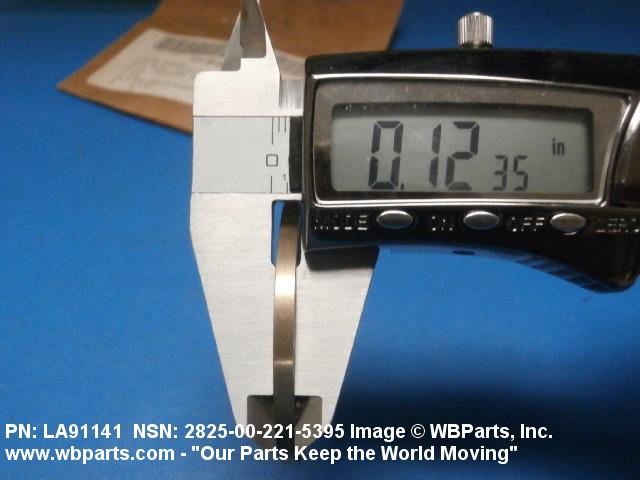

| OVERALL WIDTH | 0.1230 INCHES MINIMUM AND 0.1240 INCHES MAXIMUM |
| STANDARD BORE DIAMETER | 1.875 INCHES |
| III FSC APPLICATION DATA | TURBINE GENERATOR |
| MANUFACTURERS CODE | 0BR59 |
| DESIGN CONTROL REFERENCE | 91141 |
Restrictions/Controls & Freight Information | NSN 2825-00-221-5395
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126700 | PISTON RINGS,IRON |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2825-00-221-5395
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
