NSN 2840-00-225-2564 6859606, 6871376, 00-225-2564
Product Details | AIRCRAFT GAS TURBINE ENGI COMPRESSOR VANE ASSEMBLY
2840-00-225-2564 A stationary item designed for the purpose of directing air at the proper angle and velocity from a ROTOR, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE. It has provisions for attaching to a CASE, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE. It may have an inner support shroud. The assembled item forms a complete circle.
Part Alternates: 6859606, 6871376, 2840-00-225-2564, 00-225-2564, 2840002252564, 002252564
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 MAR 1971 | 00-225-2564 | 50607 ( VANE ASSEMBLY, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE ) |

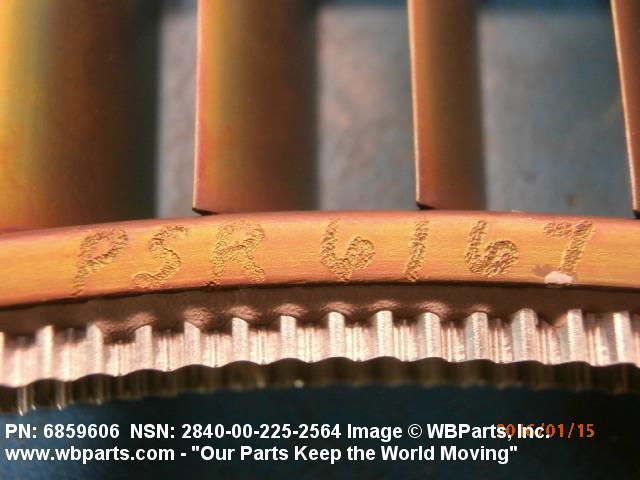

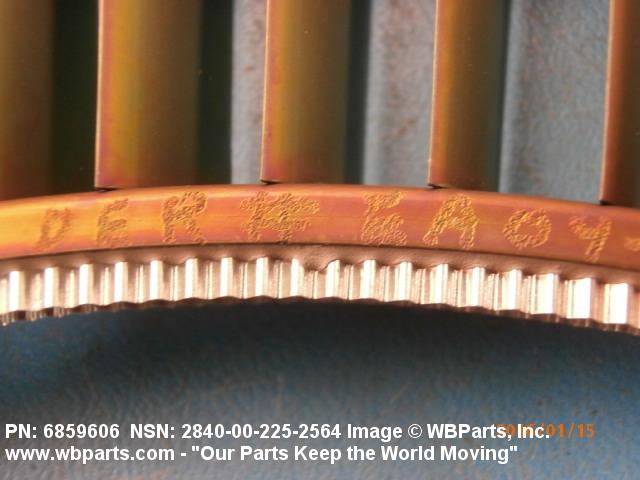

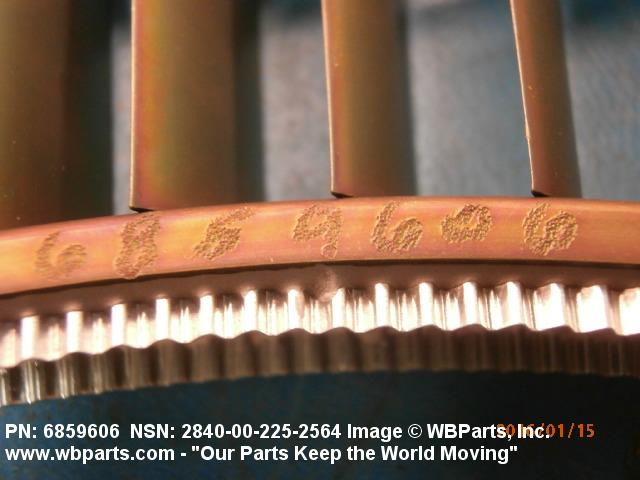

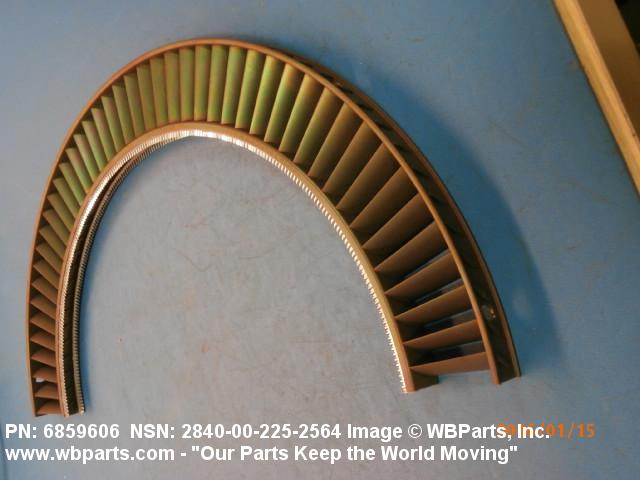

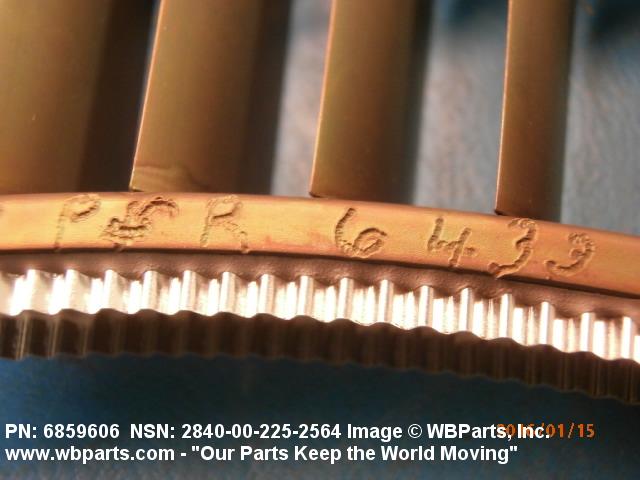

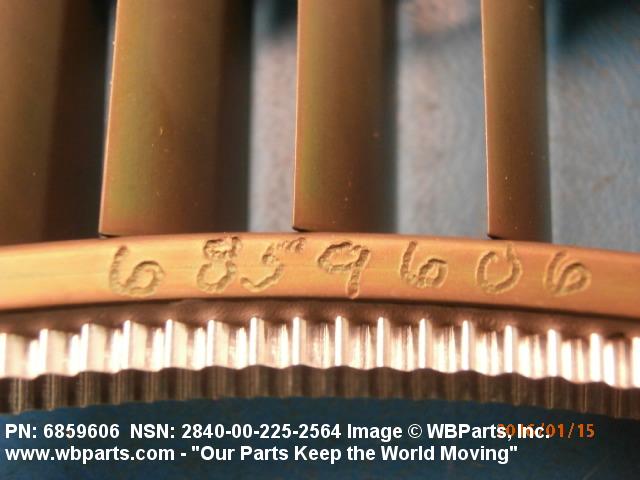

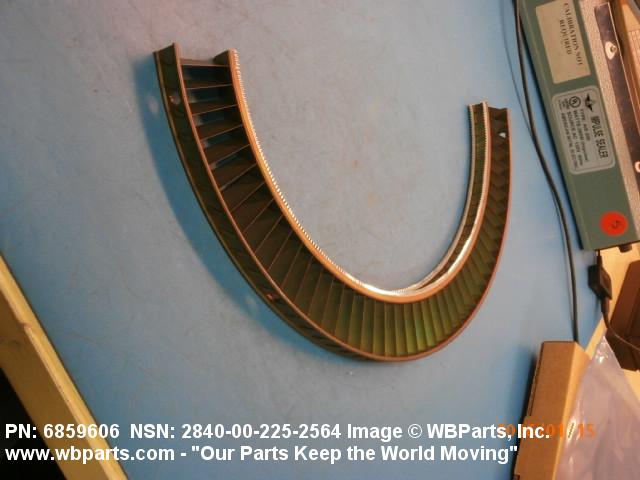

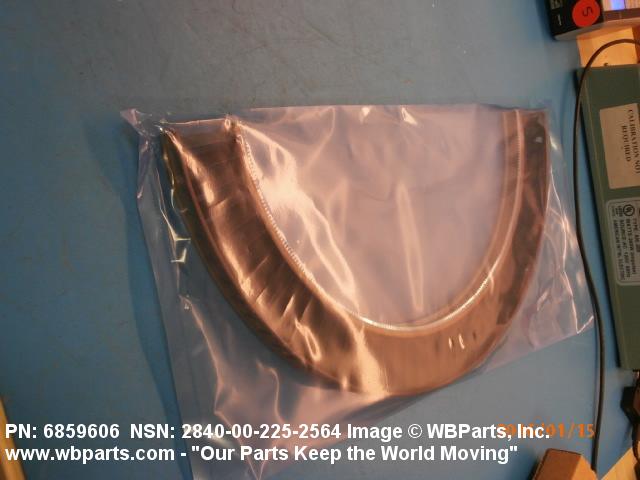

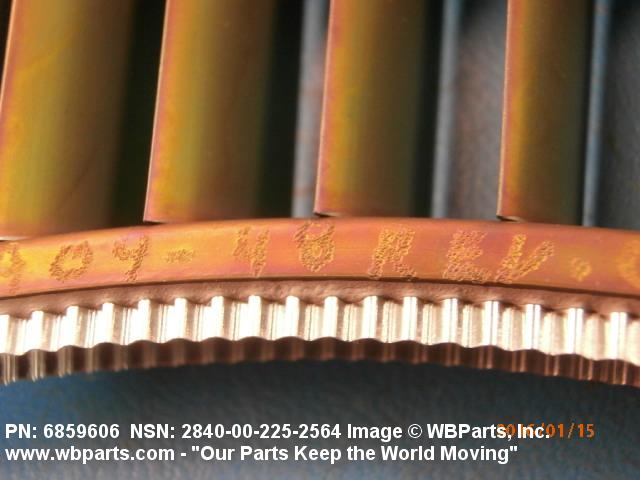

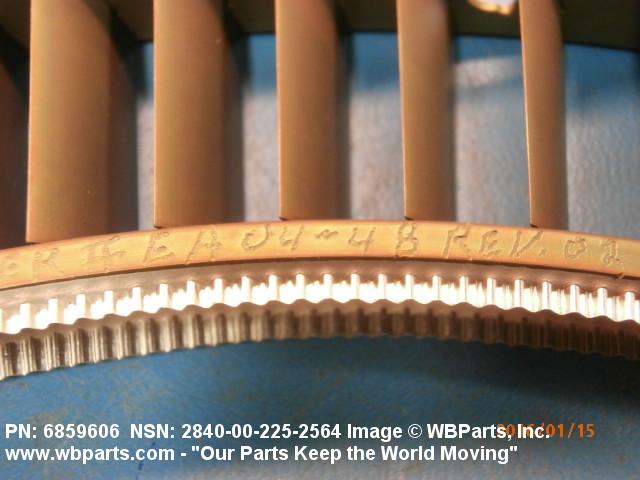

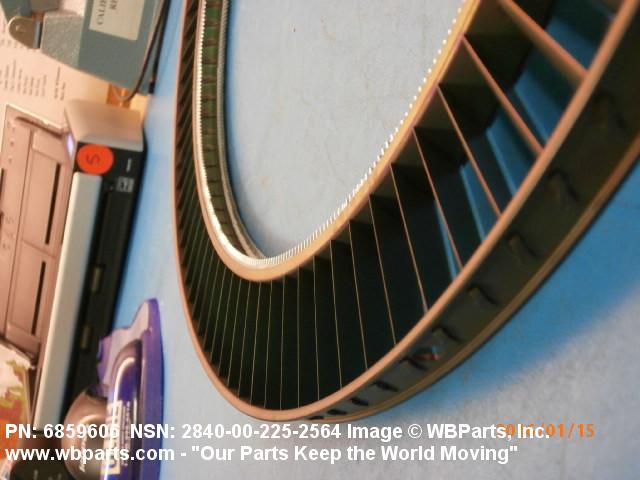

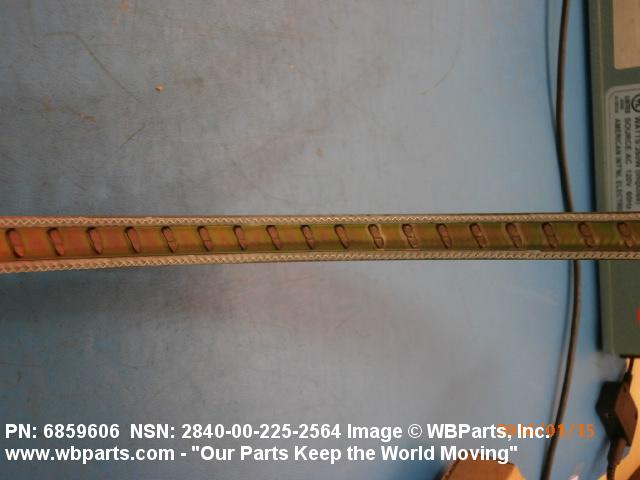

Drawings & Photos | NSN 2840-00-225-2564
Demand History | NSN 2840-00-225-2564
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6859606 | 2016-03-75 | 4 | |
| 2840-00-225-2564 | 2015-05-125 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2840-00-225-2564
Technical Data | NSN 2840-00-225-2564
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CADMIUM OVERALL |
| DESIGN TYPE | AXIAL COMPRESSOR |
| ENGINE SECTION LOCATION | COMPRESSOR |
| STAGE NUMBER | 6 |
| SPECIAL FEATURES | T.O. 2J-T56-24, FIG 27, IND 13; CADIUM PLATING IS CONSIDERED HAZARDOUS TO THE ENVIORNMENT PER THE MANUFACTURER |
| CRITICALITY CODE JUSTIFICATION | SFTT AND FEAT AND CZBJ AND CZCJ |
| III END ITEM IDENTIFICATION | T-56 AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 63005 |
| DESIGN CONTROL REFERENCE | 6859606 |
Restrictions/Controls & Freight Information | NSN 2840-00-225-2564
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-225-2564
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
