NSN 2840-00-876-6682 2-100-055-01, 00-876-6682, 210005501
Product Details | HOLLOW DOWEL
2840-00-876-6682
Part Alternates: 2-100-055-01, 2840-00-876-6682, 00-876-6682, 2840008766682, 210005501, 008766682
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1962 | 00-876-6682 | 77777 ( ) |

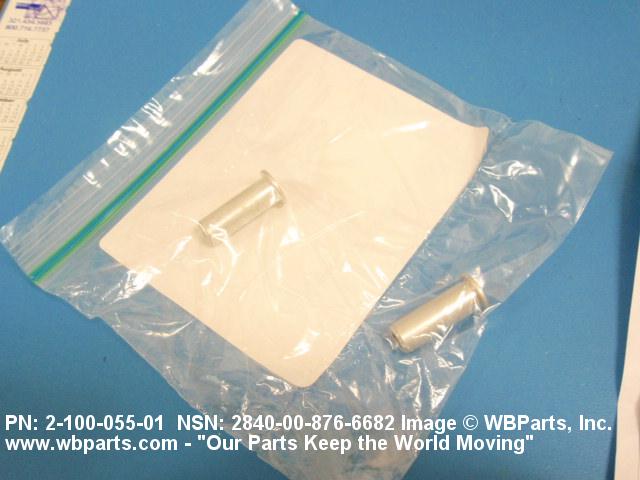

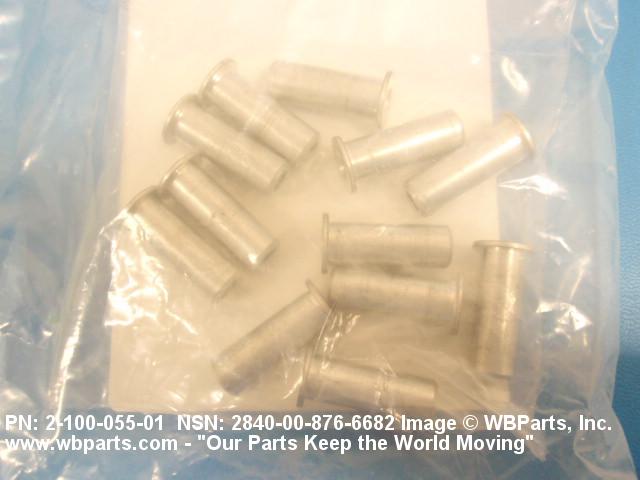

Drawings & Photos | NSN 2840-00-876-6682
Demand History | NSN 2840-00-876-6682
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2840-00-876-6682 | 2013-12-342 | 187 | DIBBS |
| 2840-00-876-6682 | 2013-11-310 | 102 | DIBBS |
| 2840-00-876-6682 | 2013-10-300 | 102 | DIBBS |
| 210005501 | 2009-04-114 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-00-876-6682
Related Products | NSN 2840-00-876-6682
Technical Data | NSN 2840-00-876-6682
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL AMS5069,ROCKWELL C SCALE 23 MAX HARDNESS,CADMIUM PLATED AMS2400-3,1.265 IN. MIN,1.275 IN. MAX O/A LG,0.436 IN. MIN,0.437 IN. MAX OD,0.250 IN. MIN,0.252 IN. MAX ID,FLANGED 0.055 IN. MIN,0.065 IN. MAX THK,0.600 IN. MIN,0.620 IN. MAX OD,INTERNAL THD FLANGED END,0.360 IN. DEPTH,0.3125-24 UNJF,CLASS 3B THD,FLANGED END COUNTERSUNK 90 DEG BY 0.340 IN. NOM DIA |
| III END ITEM IDENTIFICATION | ENG T-55 |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 2-100-055-01 |
Restrictions/Controls & Freight Information | NSN 2840-00-876-6682
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-876-6682
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
