NSN 2910-00-705-4664 B16040, D23135, FC2824
Product Details | FILLER OPENING CAP
2910-00-705-4664 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: B16040, D23135, FC2824, FC3517, 9135104, 2910-00-705-4664, 00-705-4664, 2910007054664, 007054664
Engine Accessories | Engine Fuel System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-705-4664 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 2910-00-705-4664
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2910-00-705-4664
Technical Data | NSN 2910-00-705-4664
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

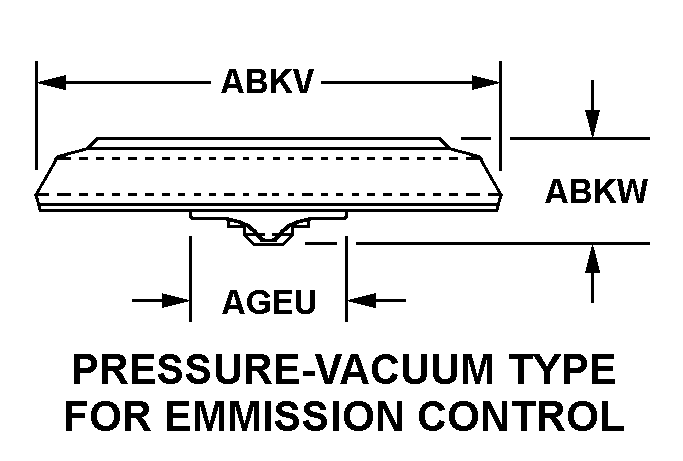

| STYLE DESIGNATOR | B23 PRESSURE-VACUUM TYPE FOR EMISSION CONTROL |
| OUTSIDE DIAMETER | 4.375 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| (NON-CORE DATA) BASE DIAMETER | 3.312 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | NOT RATED |
| PRESSURE RELIEF METHOD | MANUAL |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 2.938 INCHES NOMINAL |
| CAM QUANTITY | 2 |
| GRIPPING ACCOMMODATION TYPE | PLAIN |
| FEATURES PROVIDED | BREATHER HOLE |
Restrictions/Controls & Freight Information | NSN 2910-00-705-4664
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
