NSN 2915-00-942-2508 CP00014, 2518001, 251800-1
Product Details | CENTRIFUGAL FUEL BOOSTER PUMP
2915-00-942-2508
Part Alternates: CP00014, 2518001, 251800-1, 2518011, 251801-1, 2915-00-942-2508, 00-942-2508, 2915009422508, 009422508
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 21 DEC 1965 | 00-942-2508 | 77777 ( ) |

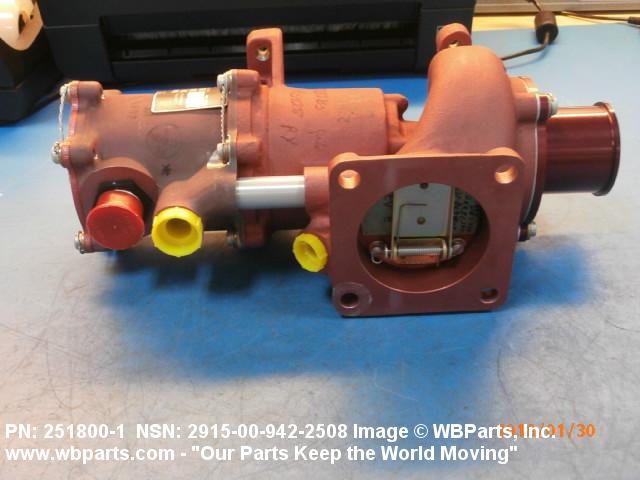

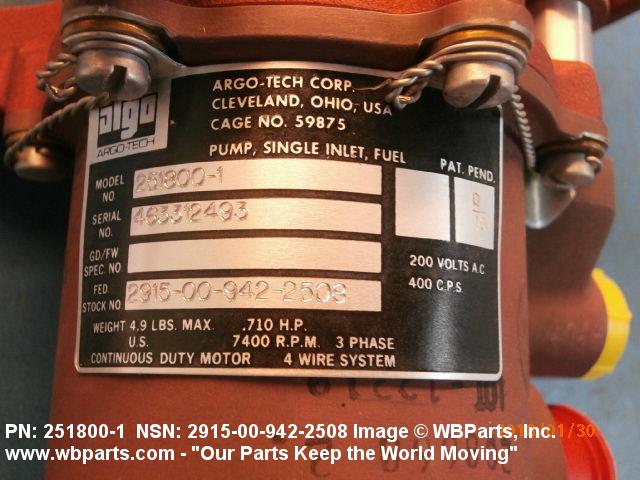

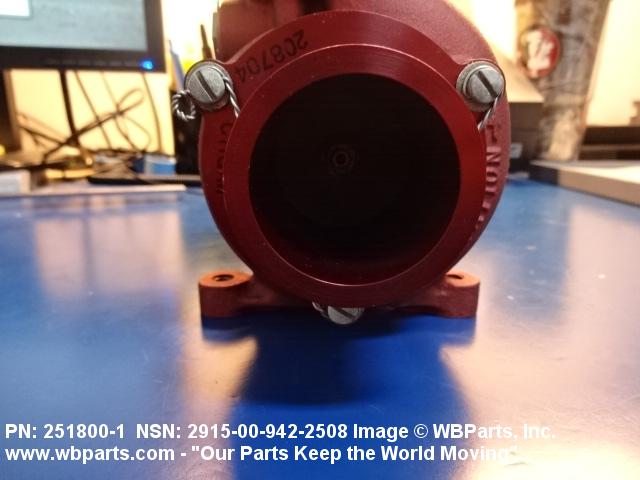

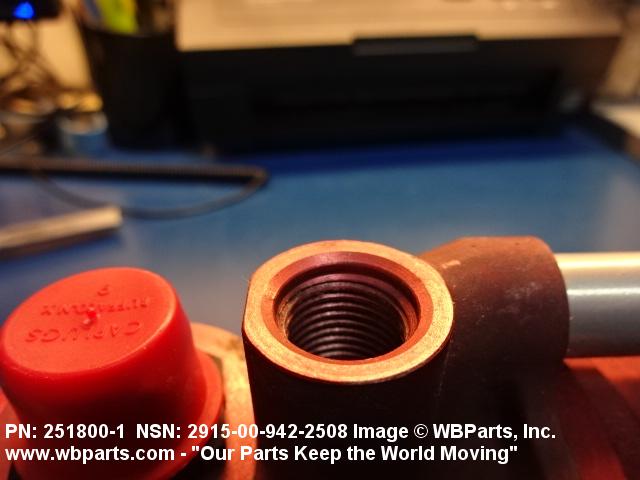

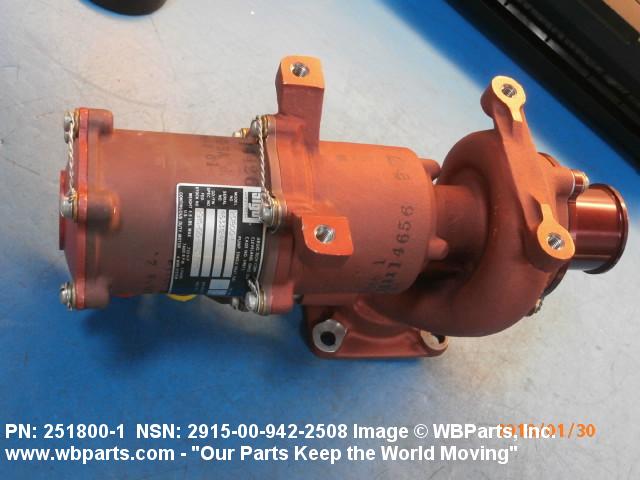

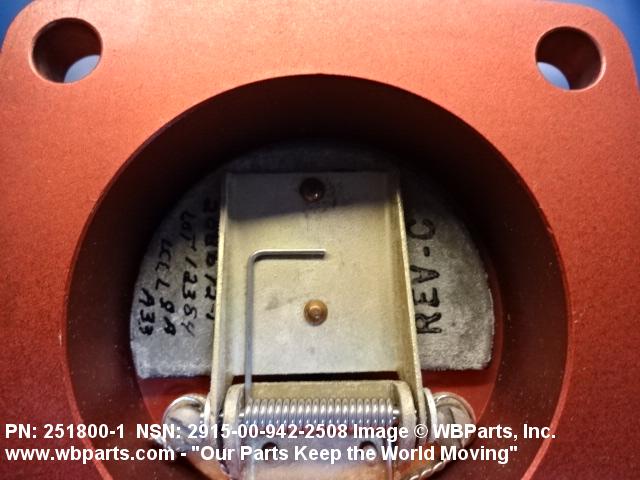

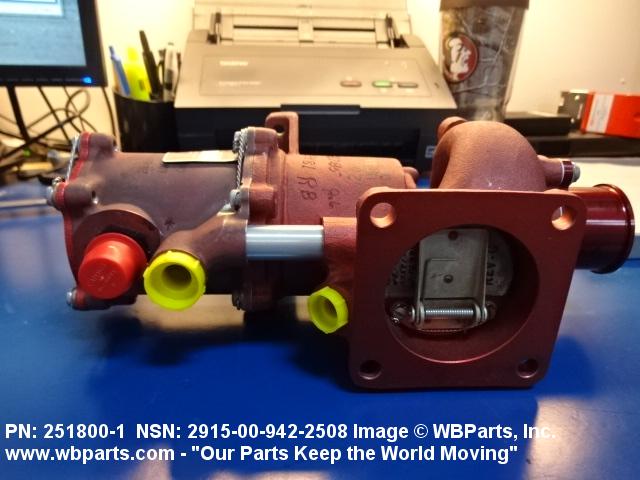

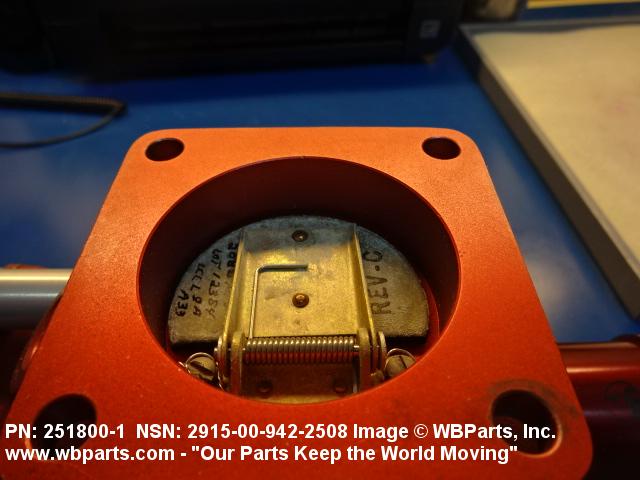

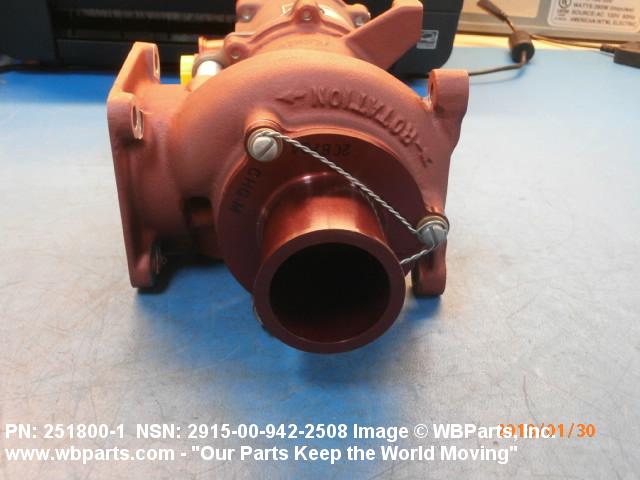

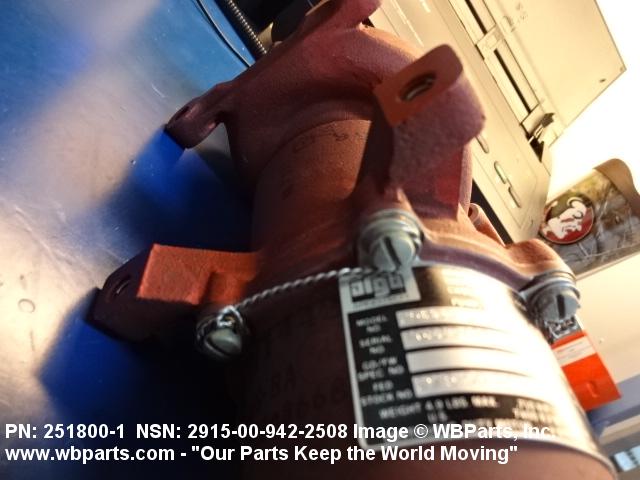

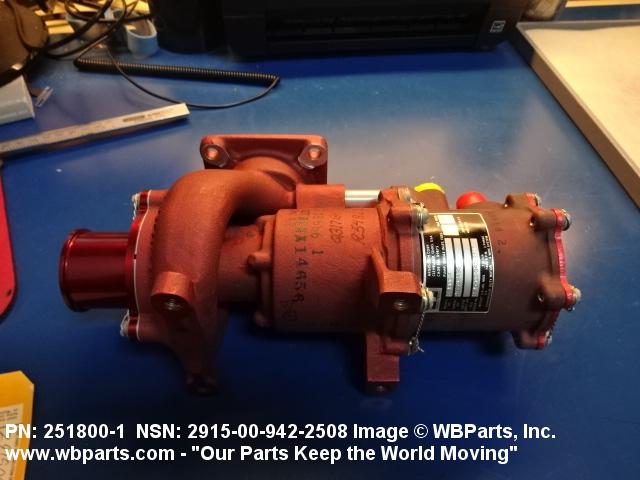

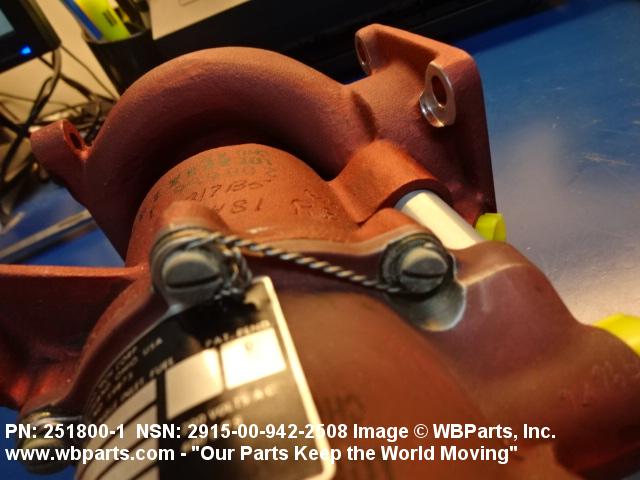

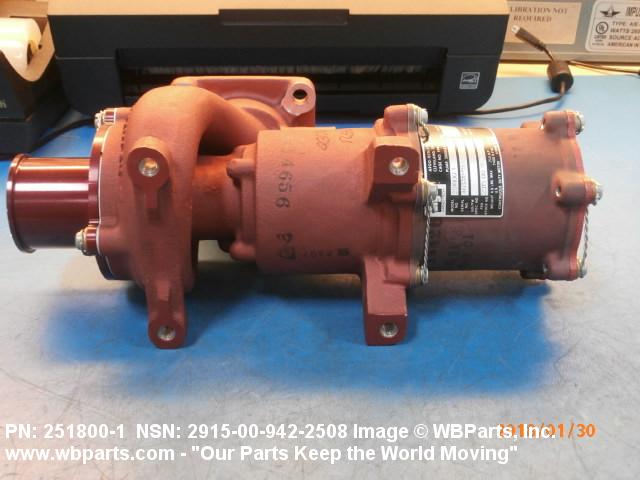

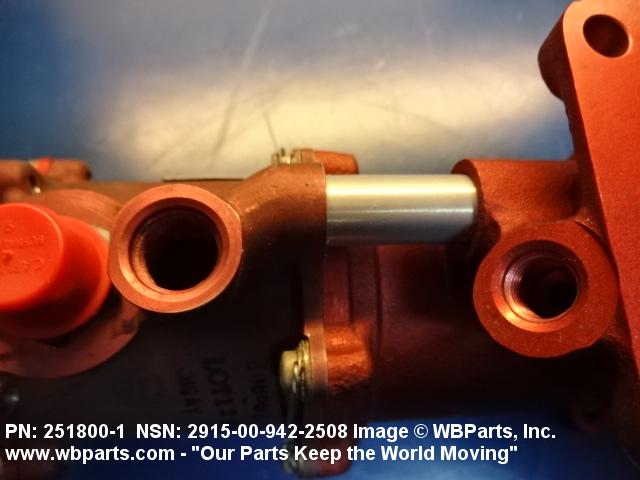

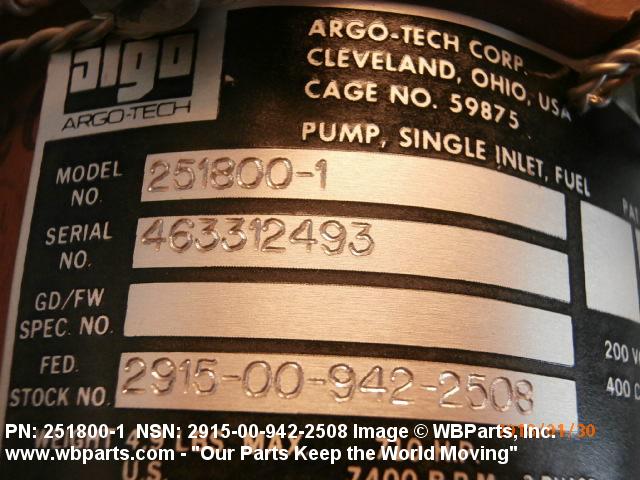

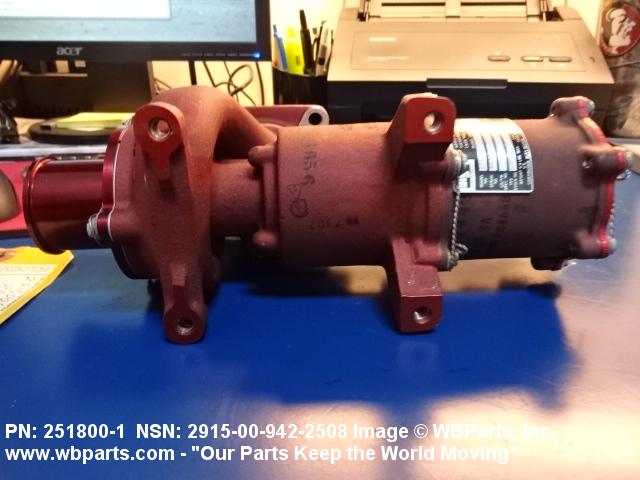

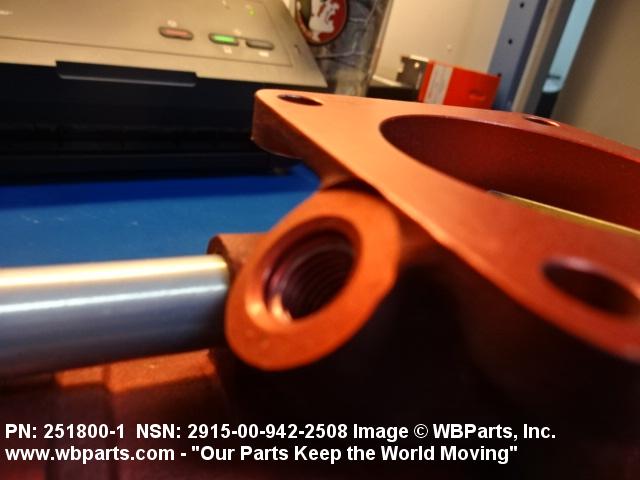

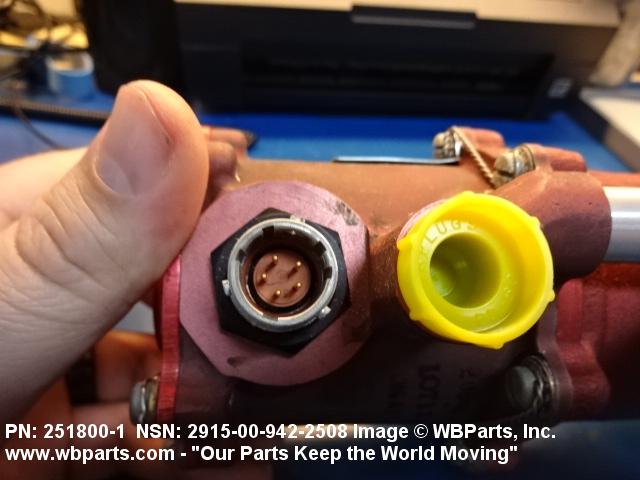

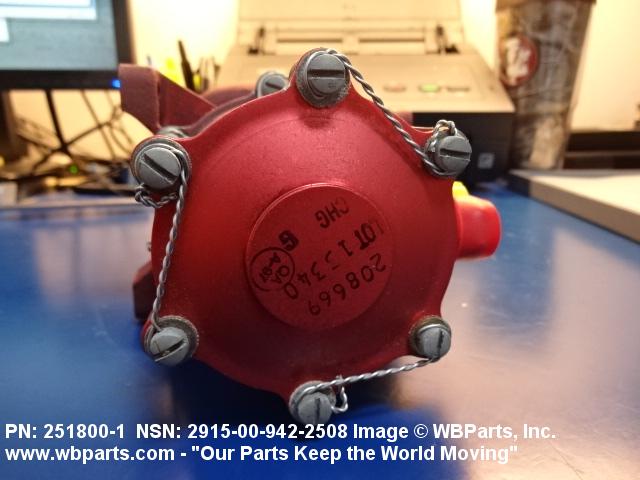

Drawings & Photos | NSN 2915-00-942-2508
Demand History | NSN 2915-00-942-2508
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2915-00-942-2508 | 2018-01-22 | 2 | United States |
| 2915-00-942-2508 | 2018-01-10 | 3 | US |
Cross Reference | NSN 2915-00-942-2508
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2915-00-942-2508
Related Products | NSN 2915-00-942-2508
Technical Data | NSN 2915-00-942-2508
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | ELECTRICALLY OPERATED CONTINUOUS DUTY,200 VOLTS,ALTERNATING CURRENT,400 CYCLES,3 PHASE,0.710 HP AT 7400 RPM,46 GPM AT 12 PSI PRESSURE RISE W/OPERATING TEMP OF 165 DEG F,ROTATES COUNTER CLOCKWISE,O/A DIM. APPROX 9.920 IN. MIN TO 9.980 IN. MAX LG BY 4.792 IN. MIN TO 4.832 IN. MAX H,SINGLE INLET PORT W/APPROX 1.637 IN. MIN TO 1.642 IN. MAX DIA OPENING,SINGLE OUTLET PORT W/SQ FLANGE AND APPROX 1.500 IN. DIA OPENING,FLANGE ON EACH END,RIGHT END HAS 6 INSERTS AND LEFT END HAS 3 INSERTS,4 INSERTS UNDERNEATH SIZE 0.250-28 BY 0.375 IN. DEEP,EXPLOSIVE PROOF CASE |
| III END ITEM IDENTIFICATION | F111 AIRCRAFT |
| MANUFACTURERS CODE | 68037 |
| DESIGN CONTROL REFERENCE | 251801-1 |
Restrictions/Controls & Freight Information | NSN 2915-00-942-2508
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
