Product Details | FLUID FILTER ELEMENT
2915-01-073-0240 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: AC6091F8Y9, AC6091F-8Y9, 03807205, 038072-05, 215633, 2915-01-073-0240, 01-073-0240, 2915010730240, 010730240
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 08 MAR 1979 | 01-073-0240 | 32624 ( FILTER ELEMENT, FLUID ) |

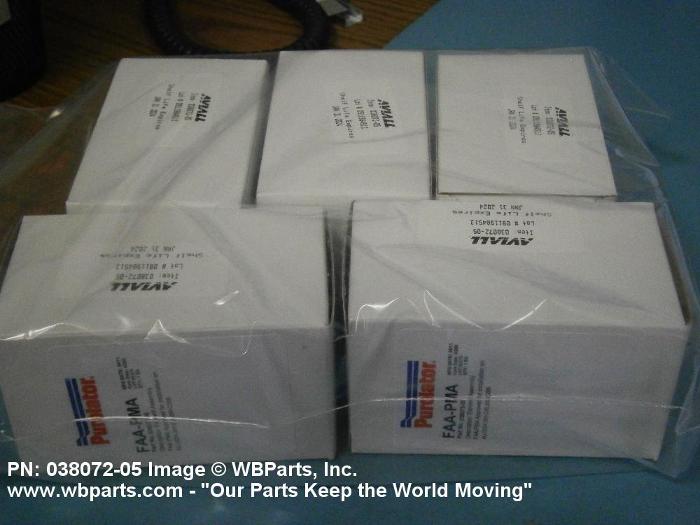

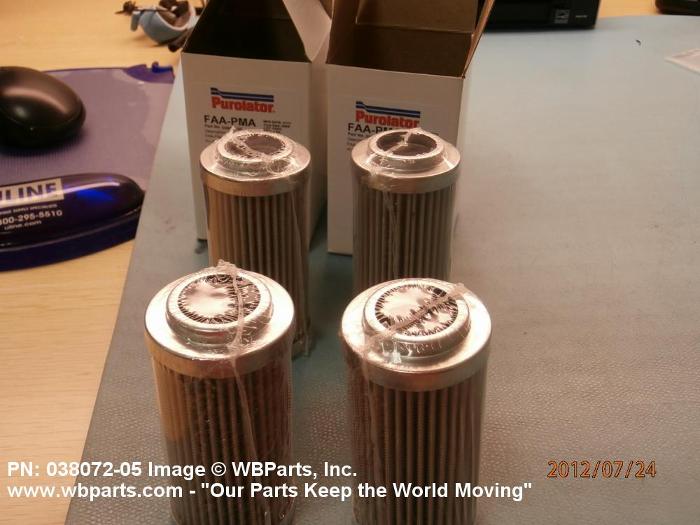

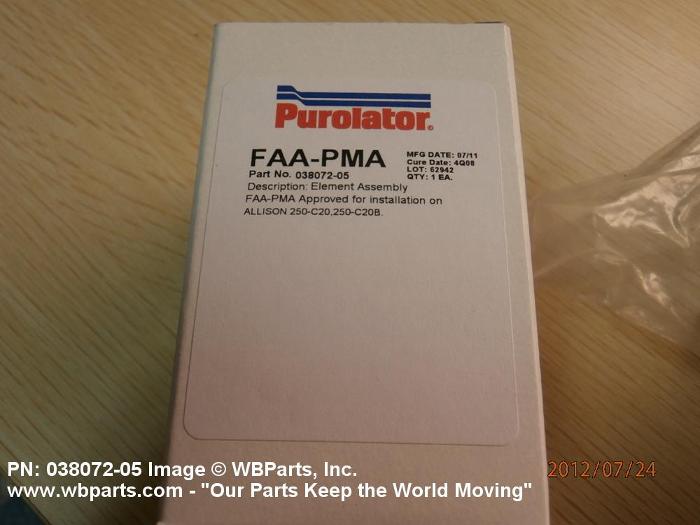

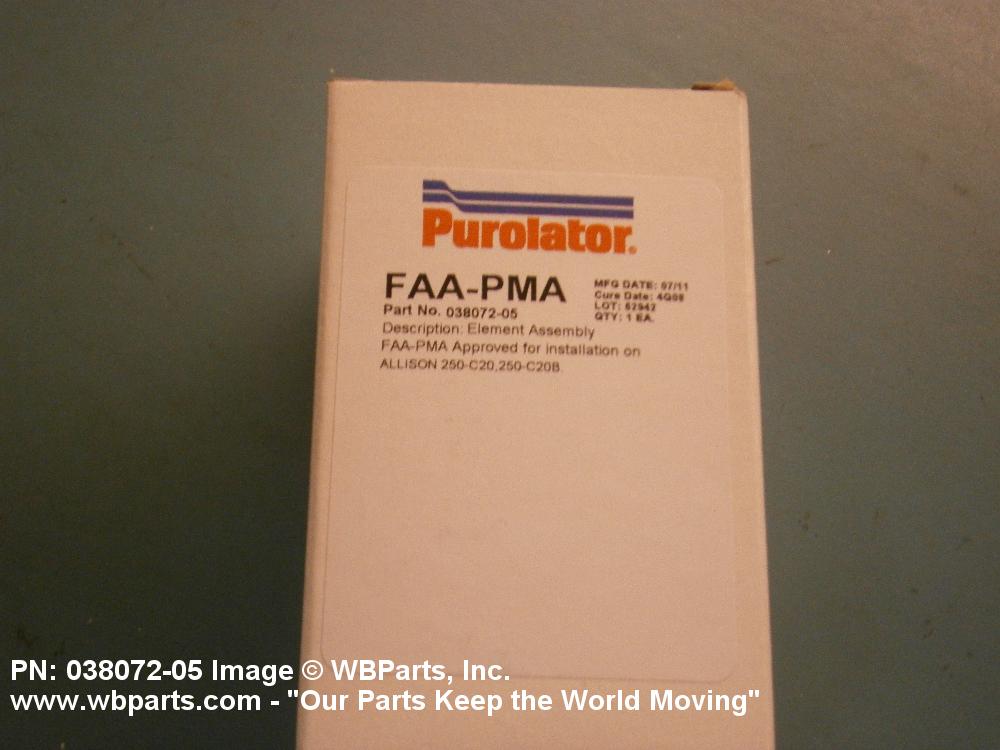

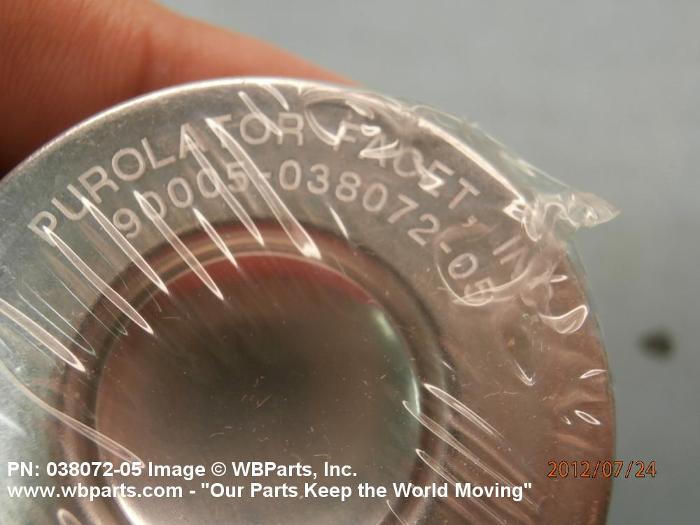

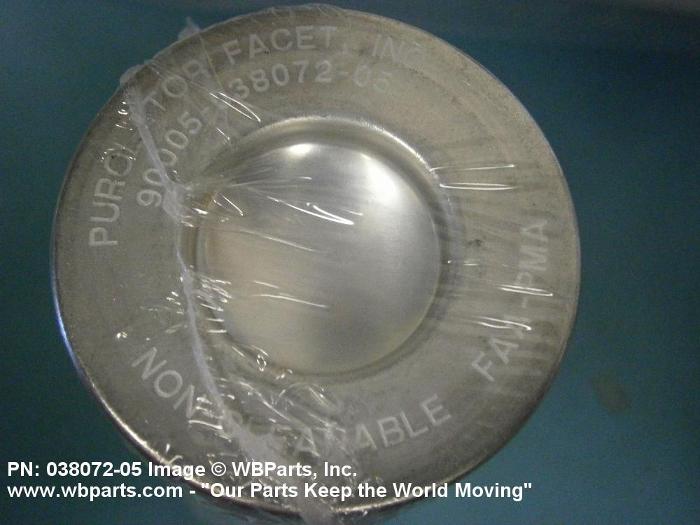

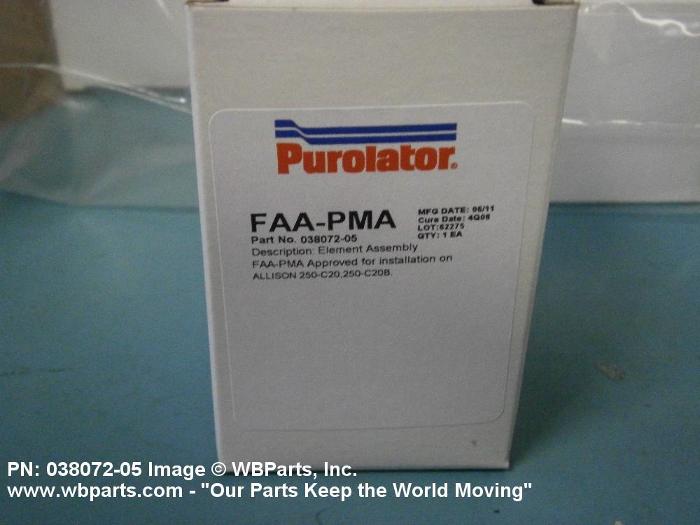

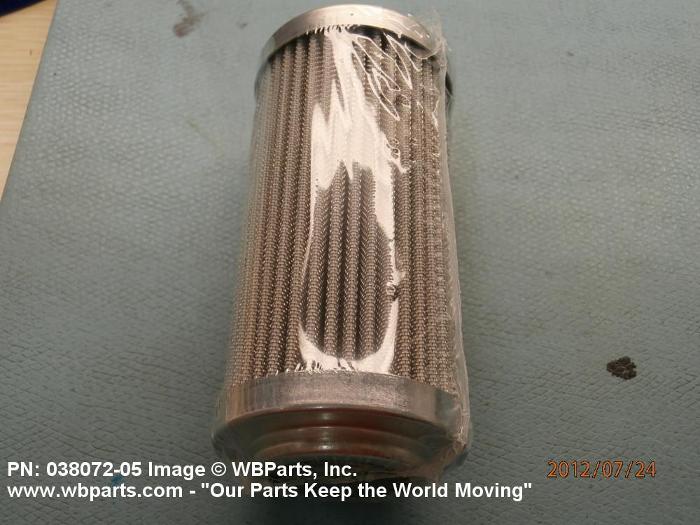

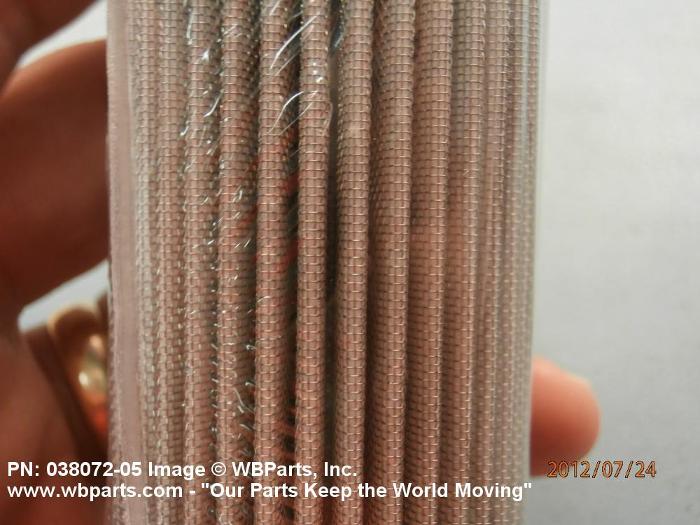

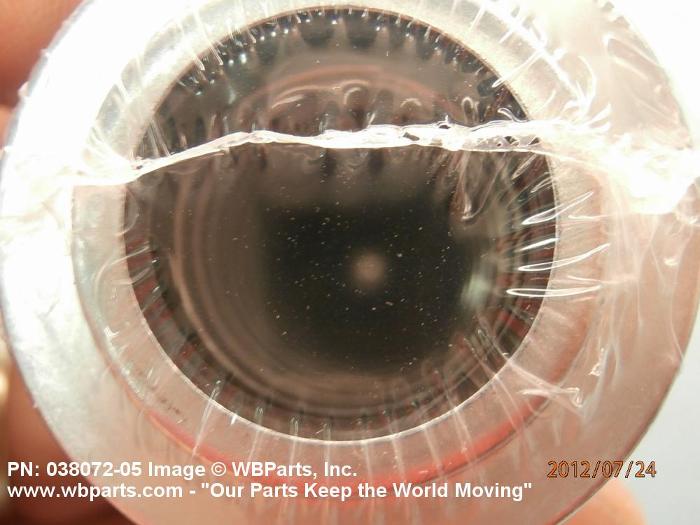

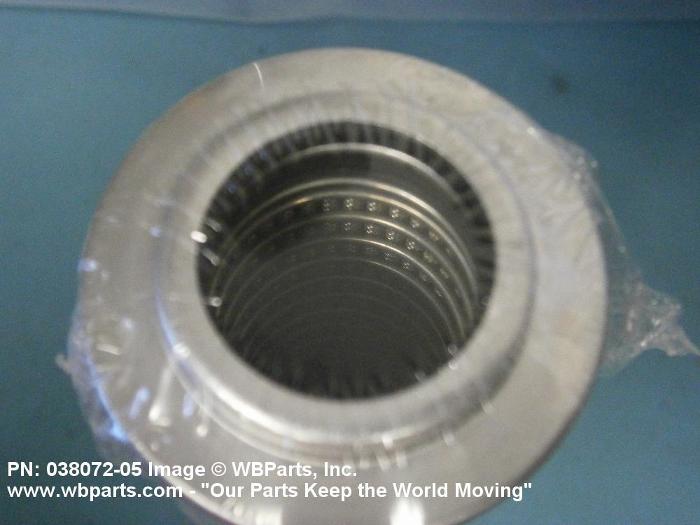

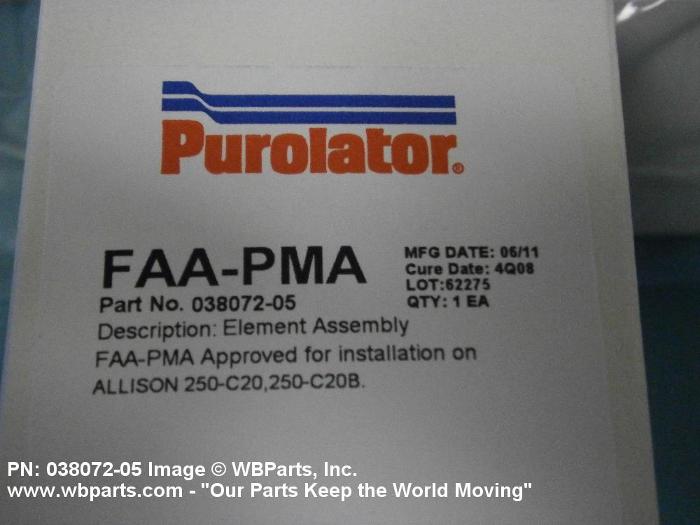

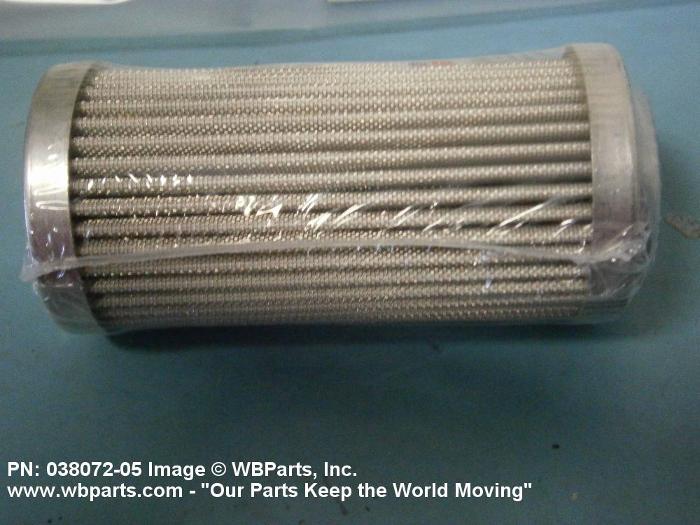

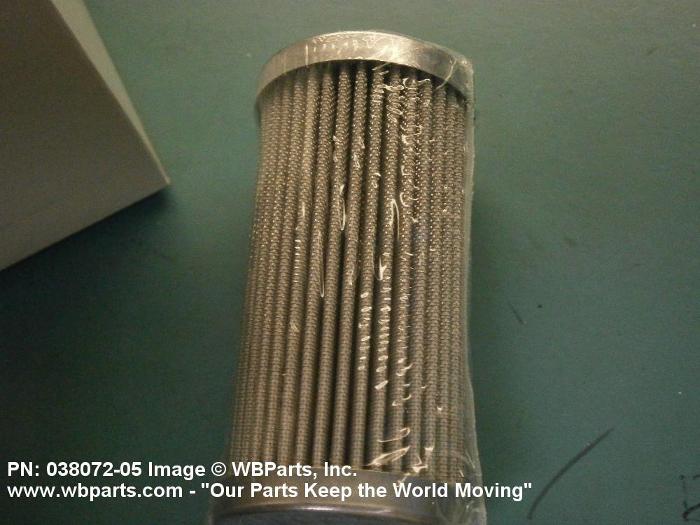

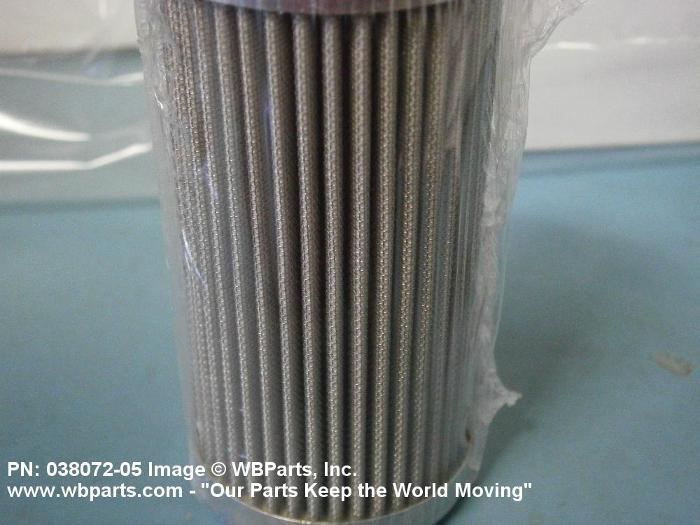

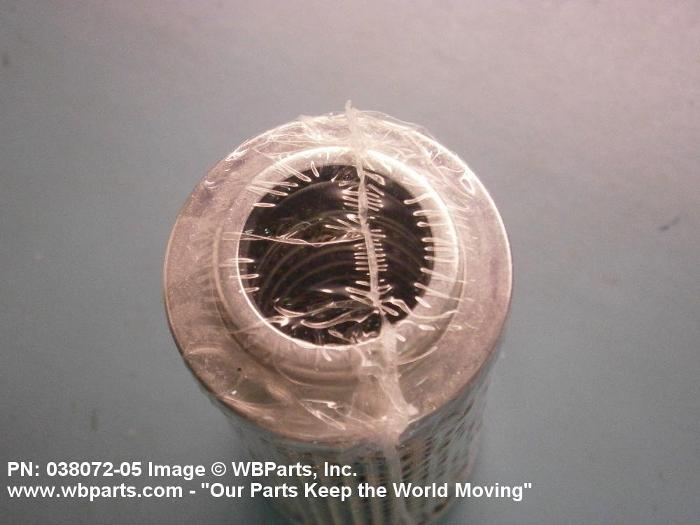

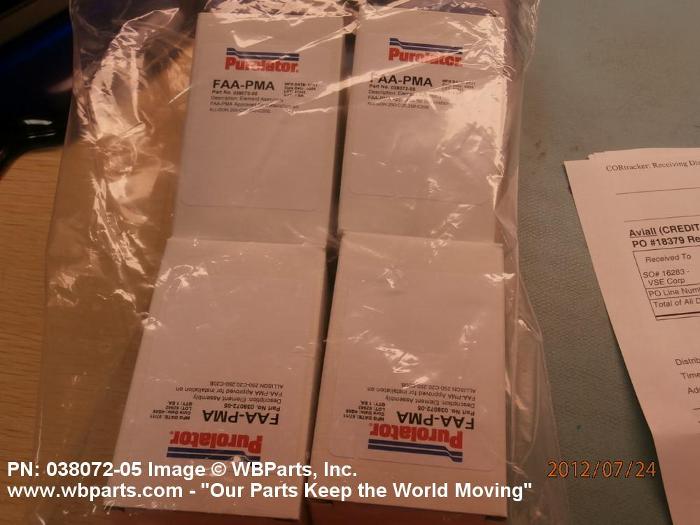

Drawings & Photos | NSN 2915-01-073-0240
Demand History | NSN 2915-01-073-0240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2915-01-073-0240 | 2023-01-03 | 2 | PH |
| 2915-01-073-0240 | 2017-03-28 | 165 | DIBBS |
| 2915-01-073-0240 | 2017-03-20 | 165 | DIBBS |
| 03807205 | 2016-03-24 | 1 | MX |
| 2915-01-073-0240 | 2015-01-12 | 110 | DIBBS |
| 2915-01-073-0240 | 2013-01-03 | 94 | DIBBS |
| 2915-01-073-0240 | 2012-09-20 | 50 | DIBBS |
| 2915-01-073-0240 | 2012-06-06 | 17 | DIBBS |
| 2915-01-073-0240 | 2012-04-09 | 12 | DIBBS |
| 2915-01-073-0240 | 2012-02-07 | 10 | DIBBS |
| 2915-01-073-0240 | 2012-01-28 | 10 | DIBBS |
| 03807205 | 2010-11-22 | 1 | Korea |
| AC6091F8Y9 | 2007-01-30 | 2 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2915-01-073-0240
2915-01-073-2277, 2915-01-073-2657, 2915-01-073-2720, 2915-01-073-2721, 2915-01-073-3837
Technical Data | NSN 2915-01-073-0240
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A10 CYLINDRICAL W/CONTAINER |
| BODY DIAMETER | 1.609 INCHES MINIMUM AND 1.656 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.875 INCHES MINIMUM AND 0.906 INCHES MAXIMUM |
| BODY OVERALL LENGTH | 3.438 INCHES MINIMUM AND 3.500 INCHES MAXIMUM |
| DESIGN TYPE | REUSABLE |
| FILTRATION RATING IN MICRONS | 15.0 ABSOLUTE AND 5.0 NOMINAL |
| FLOW DIRECTION | OUTSIDE IN |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 140.0 DEG FAHRENHEIT MAXIMUM |
| DROP PRESSURE | 2.0 POUNDS PER SQUARE INCH |
| DIFFERENTIAL PRESSURE | NOT RATED |
| MANUFACTURERS CODE | 59875 |
| MFR SOURCE CONTROLLING REFERENCE | 215633 |
Restrictions/Controls & Freight Information | NSN 2915-01-073-0240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2915-01-073-0240
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
