NSN 2915-01-163-5493 31674802, 3167480-2, 01-163-5493
Product Details | SPECIAL SHAPED VALVE DIAPHRAGM
2915-01-163-5493 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers42200038Marine Lifesaving and Diving Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 31674802, 3167480-2, 2915-01-163-5493, 01-163-5493, 2915011635493, 011635493
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 05 OCT 1983 | 01-163-5493 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

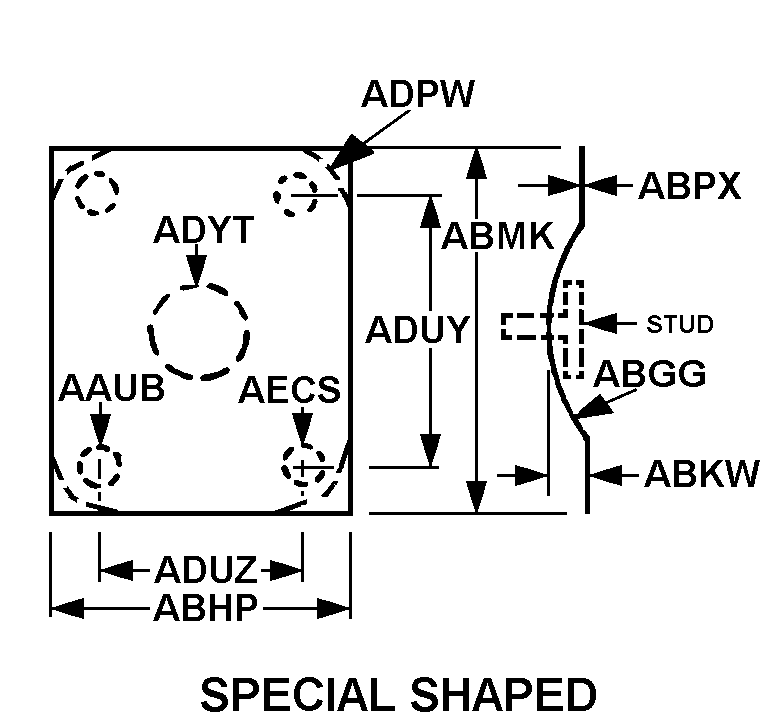

Drawings & Photos | NSN 2915-01-163-5493
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2915-01-163-5493
Technical Data | NSN 2915-01-163-5493
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 69 SPECIAL SHAPED |
| HOLE DIAMETER | 0.180 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| OVERALL LENGTH | 1.654 INCHES NOMINAL |
| OVERALL HEIGHT | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| OVERALL WIDTH | 1.654 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.012 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 1.254 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 1.254 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 4 |
| MEDIA FOR WHICH DESIGNED | AIR |
| PRESSURE RATING | 50.0 POUNDS PER SQUARE INCH NOMINAL |
| TEMP RATING | 400.0 DEG FAHRENHEIT MAXIMUM |
| FSC APPLICATION DATA | ENGINE START SYSTEM |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 3167480-2 |
Restrictions/Controls & Freight Information | NSN 2915-01-163-5493
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2915-01-163-5493
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | GF | (Non-HSP) FIGHTER SUPPORTAIRCRAFT(F/A-18) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
