NSN 2915-01-167-8039 105244, 01-167-8039, 011678039
Product Details | FLUID FILTER COVER
2915-01-167-8039 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters
Part Alternates: 105244, 2915-01-167-8039, 01-167-8039, 2915011678039, 011678039
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 06 DEC 1983 | 01-167-8039 | 22569 ( COVER, FLUID FILTER ) |
Drawings & Photos | NSN 2915-01-167-8039
Cross Reference | NSN 2915-01-167-8039
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105244 | 11599 | TRIUMPH ENGINE CONTROL SYSTEMS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2915-01-167-8039
Technical Data | NSN 2915-01-167-8039
| Characteristic | Specifications |
|---|---|
| ATTACHMENT METHOD | BOLTED |

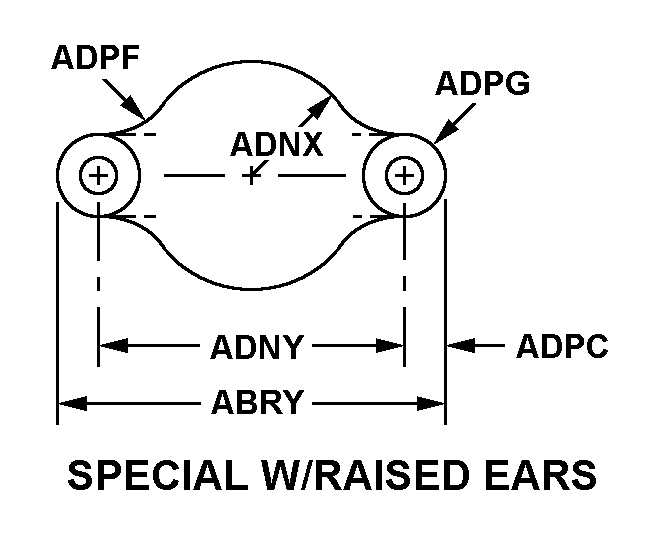

| PERIPHERAL SHAPE STYLE | 40 SPECIAL W/RAISED EARS |
| MOUNTING HOLE TYPE AND QUANTITY | 2 PLAIN |
| FLUID FILTER ELEMENT RETAINER | INCLUDED |
| SPECIAL FEATURES | BOTTOM-CENTER BORED FOR SCREW THD LOCKING INSERT MS21209-F1-15 |
| III FUNCTIONAL DESCRIPTION | PART OF INTERSTAGE STRAINER ASSY,105613,TO RETAIN STRAINER ASSY 105157 |
| III FSC APPLICATION DATA | MAIN FUEL PUMP FOR F100 ENG |
| MANUFACTURERS CODE | 11599 |
| DESIGN CONTROL REFERENCE | 105244 |
Restrictions/Controls & Freight Information | NSN 2915-01-167-8039
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133320 | MACHINERY PARTS OIL/FUEL FILTER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
