NSN 2915-01-178-2703 2C392, 2C39-2, 01-178-2703

Product Details | AIRCRAFT SUBMERGED PUMP


2915-01-178-2703 A completely inclosed machine consisting of a positive or nonpositive displacement pump with a driving motor used to transmit or transfer fluid from an aircraft tank to an engine driven pump or to another tank. It is designed to be partially or completely submerged in the fluid it is intended to pump.

Part Alternates: 2C392, 2C39-2, 2915-01-178-2703, 01-178-2703, 2915011782703, 011782703

Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers

Supply Group (FSG) NSN Assign. NIIN
29 03 MAY 1984 01-178-2703

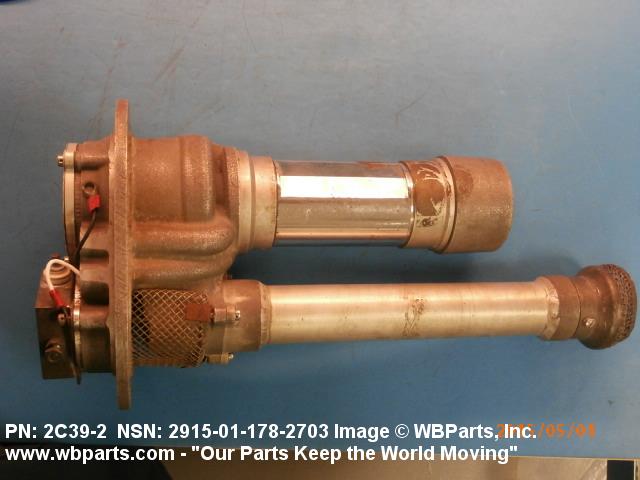

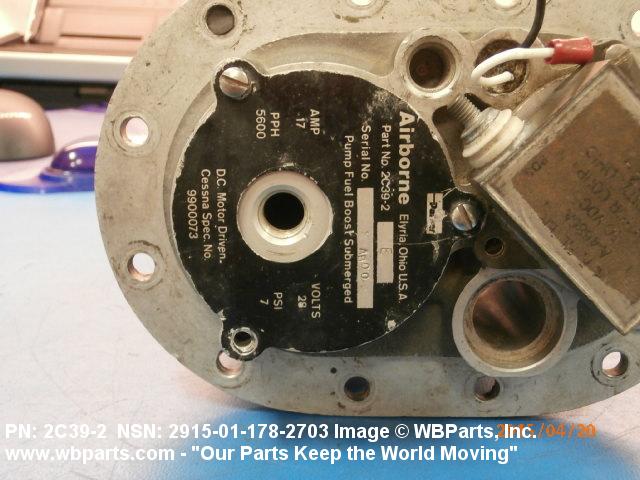

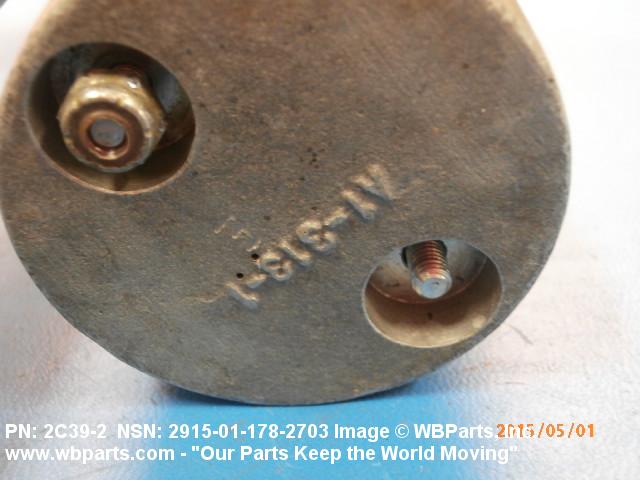

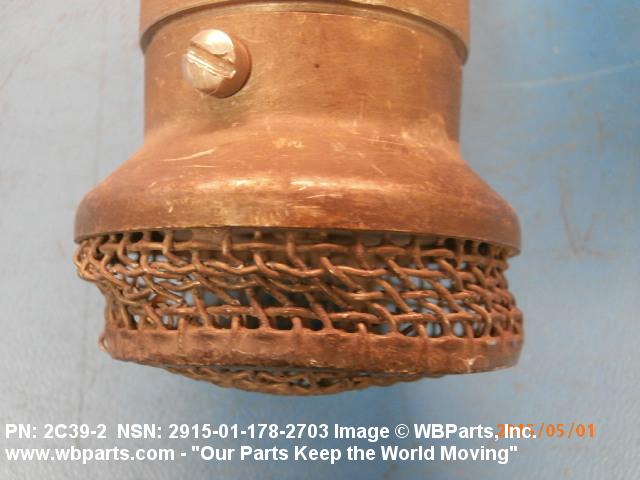

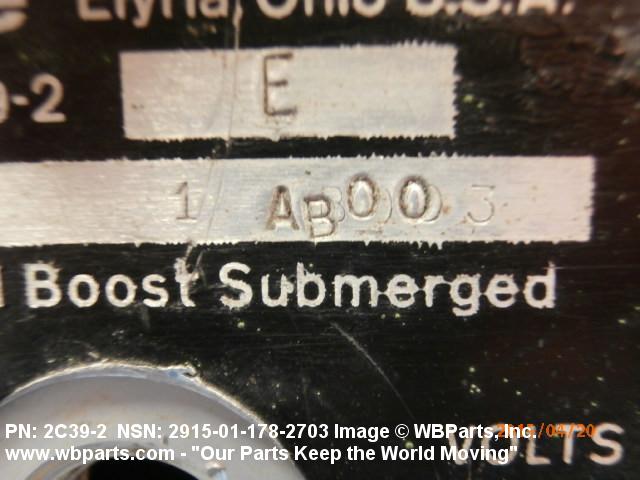

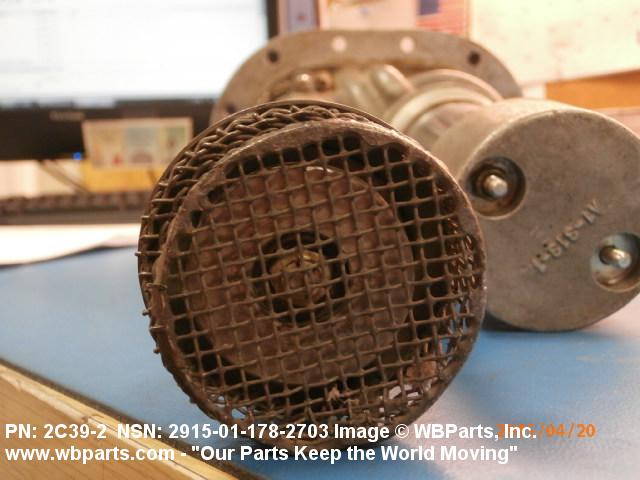

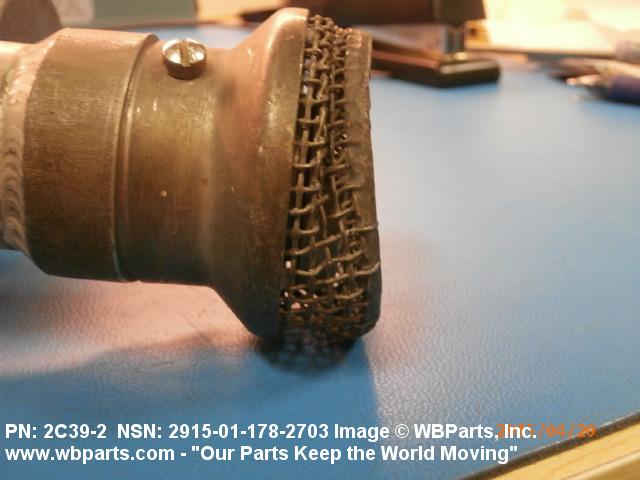

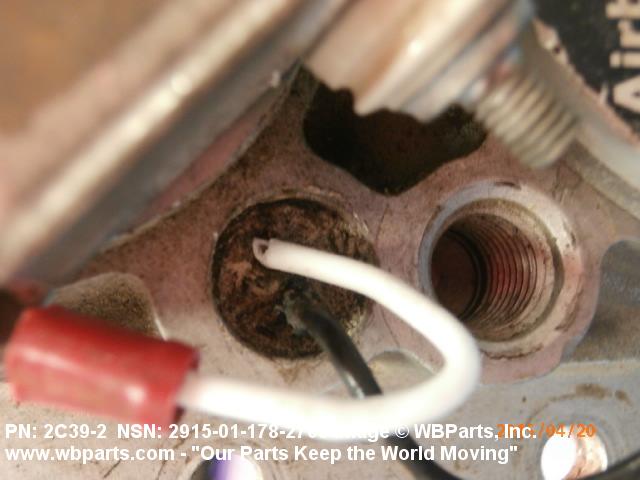

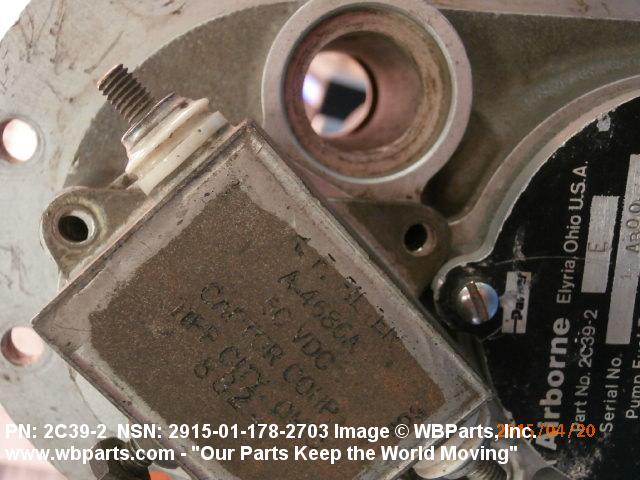

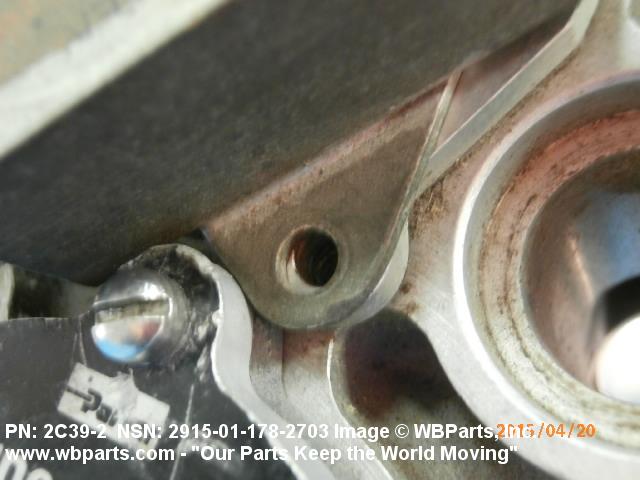

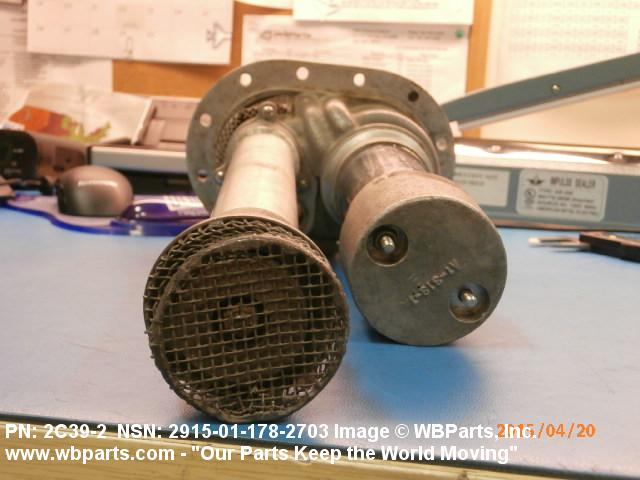

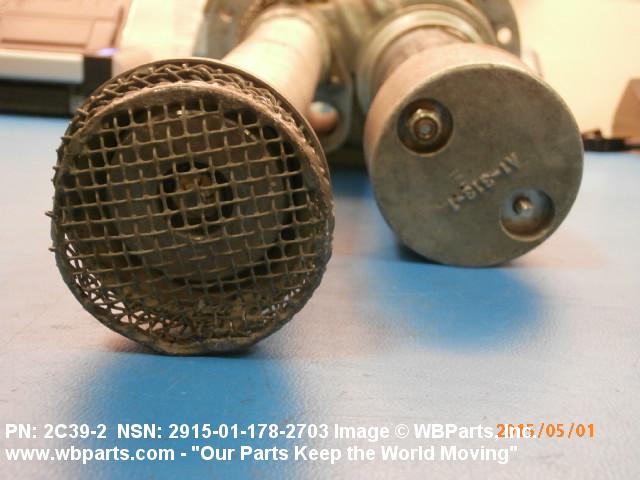

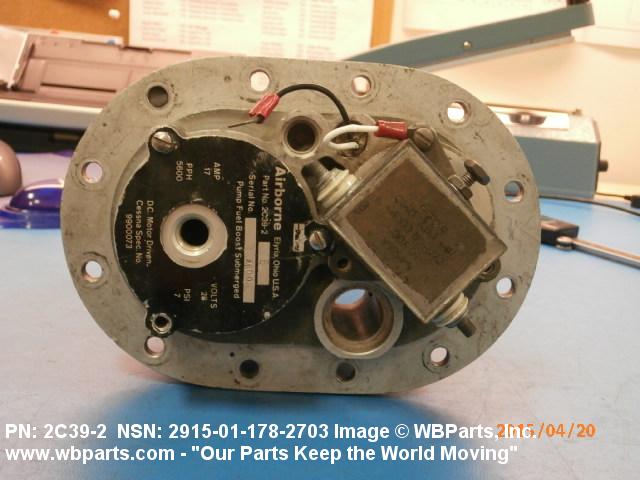

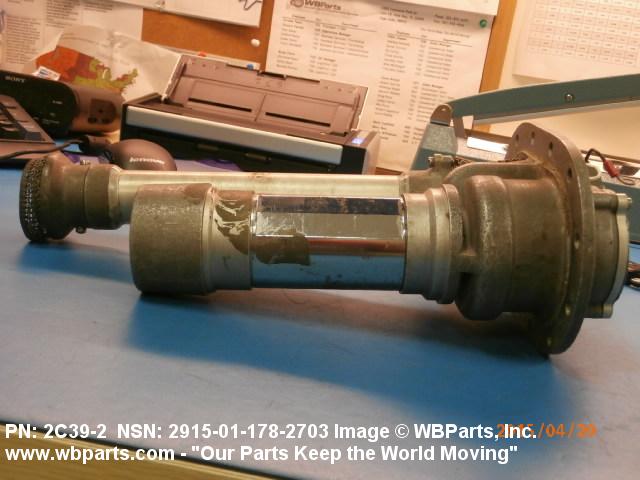

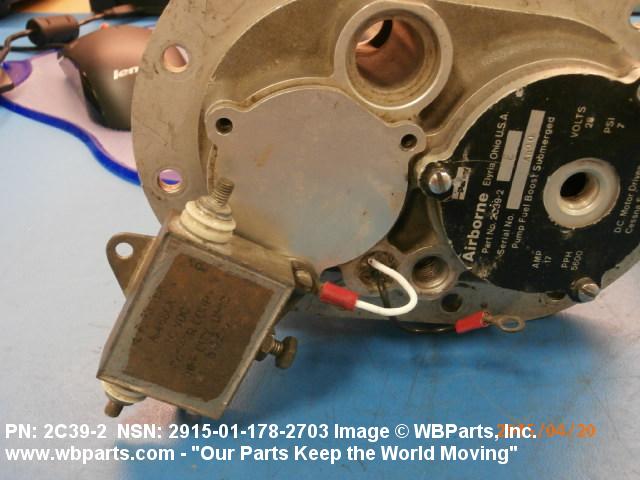

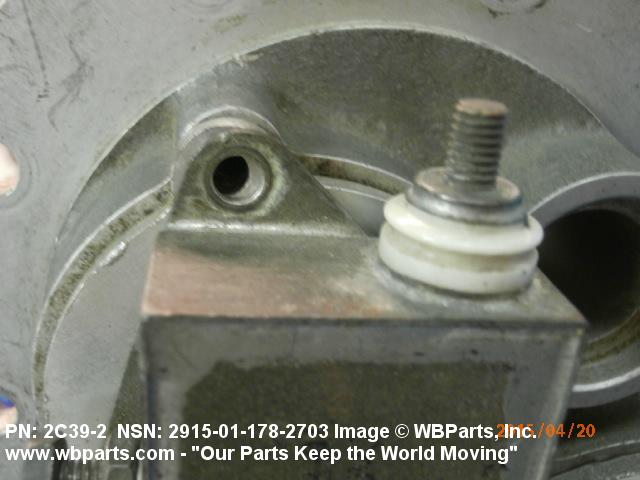

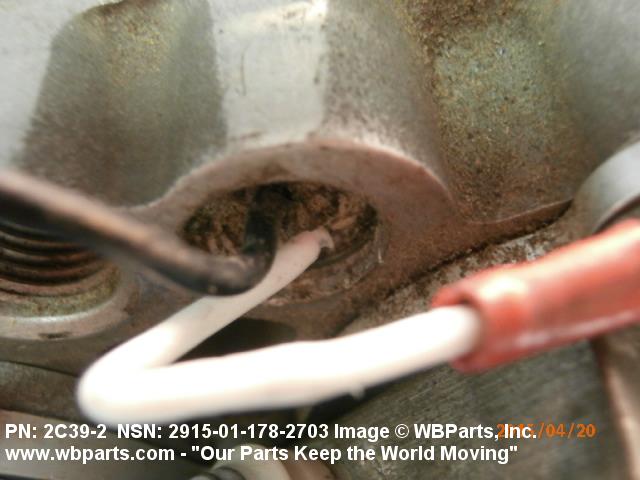

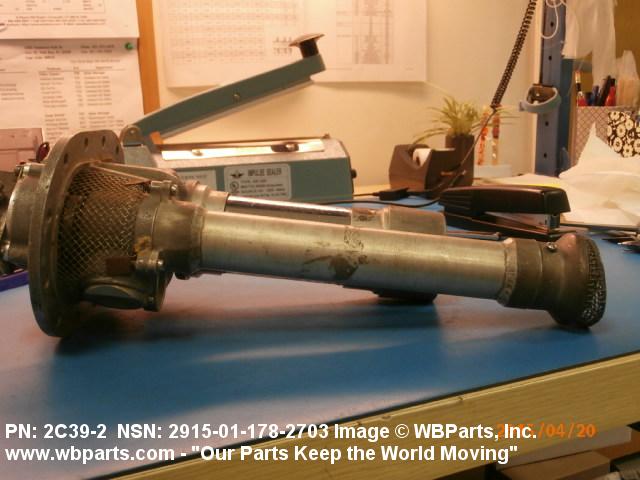

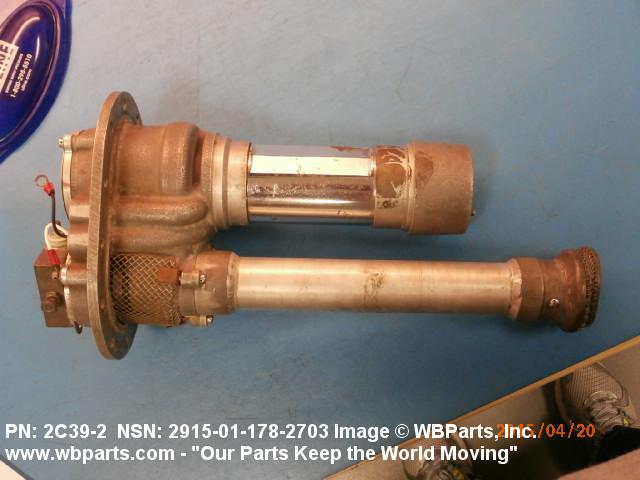

Drawings & Photos | NSN 2915-01-178-2703



Demand History | NSN 2915-01-178-2703


Part Number Request Date QTY Origin
2915-01-178-2703 2018-08-24 1 United States
2915-01-178-2703 2018-08-22 1 us
2C392 2015-04-29 1 United States
2C392 2015-03-29 1 US
2C392 2006-01-17 1 US

Cross Reference | NSN 2915-01-178-2703


Part Number Cage Code Manufacturer
2C39-2 26433 PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 2915-01-178-2703


Technical Data | NSN 2915-01-178-2703


Characteristic Specifications

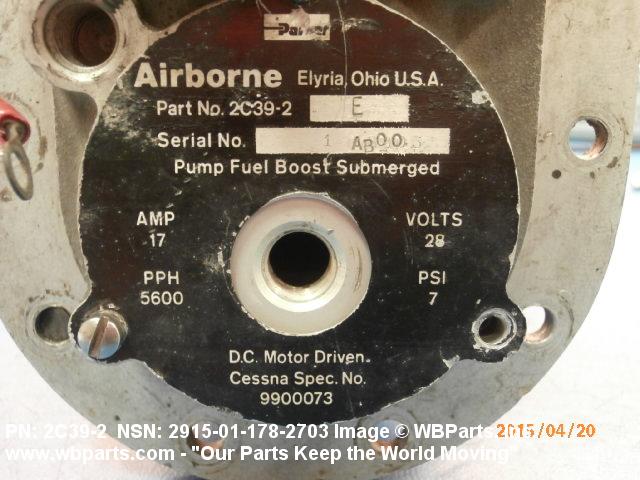

GENERAL CHARACTERISTICS ITEM DESCRIPTION FUEL BOOST PUMP 12.50 IN. L BOTTOM INLET SCREEN TO MTG FLANGE; 12 HOLES 0.281 IN. DIA THRU 0.25 IN. THK 4.91 X 7.06 IN. OVAL FLANGE; WET MOTOR LUBRICATED BY FUEL; 28VDC,17 AMPS,5600 PPH AT 7 PSI RATED CAPACITY
III END ITEM IDENTIFICATION A/T 37 AIRCRAFT FUEL CELL INSTALLATION
MANUFACTURERS CODE 26433
DESIGN CONTROL REFERENCE 2C39-2

Restrictions/Controls & Freight Information | NSN 2915-01-178-2703


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 2915-01-178-2703


Category Code Description
Budget CodeN 8757X3080:Procurement Other than Air Force
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeVUVendor to user-of-supply concept.
Materiel Management Aggregation CodeXVSX:FMS UNIQUE/OC-ALC
Source of SupplyF8UOklahoma City Air Logistics Center
Tinker AFB, OK 73145-5989
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityTAF Recoverable Assembly Management System (AFRAMS)
Acquisition Advice CodesPRESTRICTED REQUISITION - SECURITY ASSISTANCE PROGRAM (SAP) 1. Indicates item is stocked or acquired only for SAP (replaces Military Assistance Program (MAP)) requirements, or 2. Indicates item is nonstocked and materiel is ordered from the contractor for shipment directly to the foreign government. 3. Base, post, camp, or station will not requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
