NSN 2920-00-257-1347 FF170, IC49T, TC82
Product Details | IGNITION COIL
2920-00-257-1347 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: FF170, IC49T, TC82, 7812036, 78-12036, 2920-00-257-1347, 00-257-1347, 2920002571347, 002571347
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 00-257-1347 | 00303 ( COIL, IGNITION ) |
Drawings & Photos | NSN 2920-00-257-1347
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-257-1347
Technical Data | NSN 2920-00-257-1347
| Characteristic | Specifications |
|---|---|

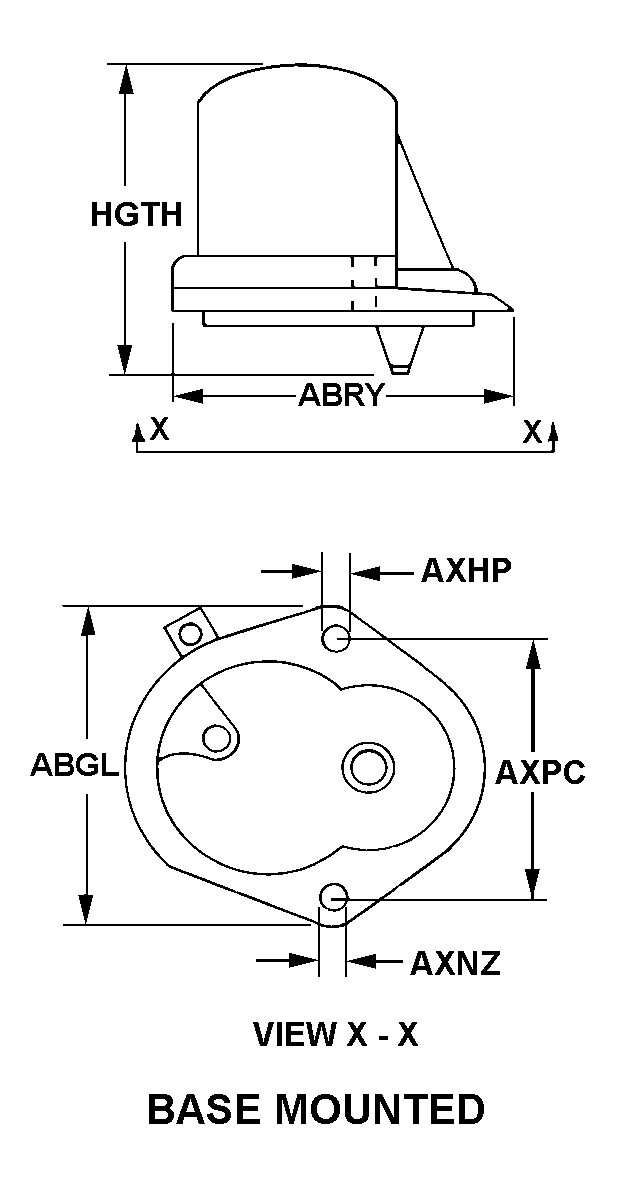

| STYLE DESIGNATOR | 12 BASE MOUNTED |
| WIDTH | 3.375 INCHES NOMINAL |
| LENGTH | 4.125 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 3.000 INCHES NOMINAL |
| HEIGHT | 4.562 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 3.7 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | CARBON BRUSH |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD SPIRAL COIL |
| LOW VOLTAGE TERMINAL QUANTITY | 1 1 |
| GROUND TERMINAL | PROVIDED |
| INCLOSURE MATERIAL TYPE | NONMETALLIC |
| FILLING MEDIUM | COMPOUND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
Restrictions/Controls & Freight Information | NSN 2920-00-257-1347
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
