NSN 2920-00-257-1362 FF173, IC48, TC83
Product Details | IGNITION COIL
2920-00-257-1362 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: FF173, IC48, TC83, 86D38741, 1GA12024, 2920-00-257-1362, 00-257-1362, 2920002571362, 002571362
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-257-1362 | 00303 ( COIL, IGNITION ) |

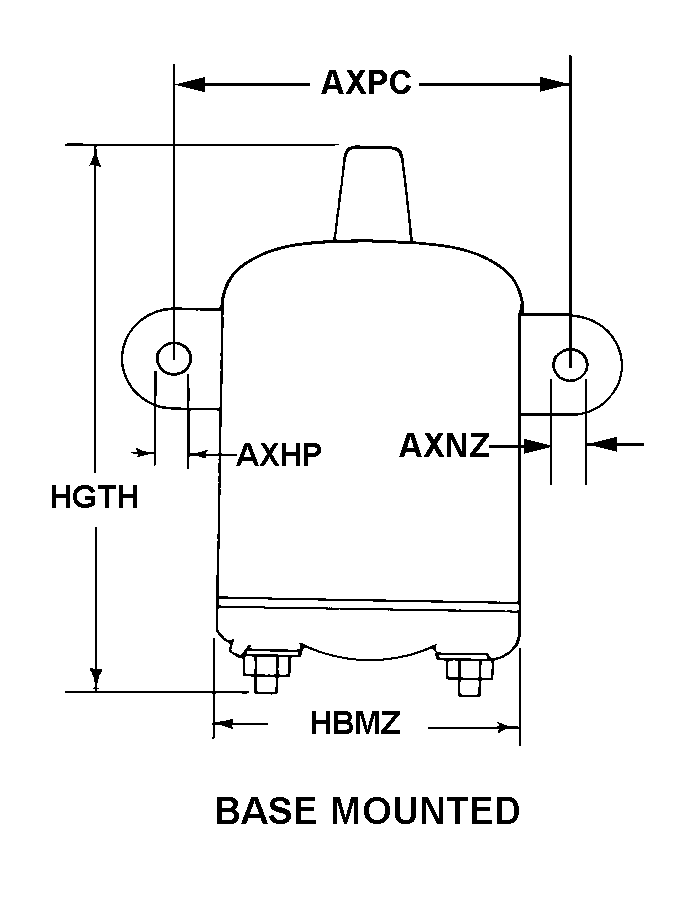

Drawings & Photos | NSN 2920-00-257-1362
Cross Reference | NSN 2920-00-257-1362
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1GA12024 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 1GA12024 | 90927 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 86D38741 | 29092 | COLT INDUSTRIES INC HOLLEY AUTOMOTIVE DIV |
| FF173 | 66614 | TRW INC REPLACEMENT PARTS DIV |
| FF173 | 76761 | C. E. NIEHOFF & CO. |
| IC48 | 19239 | ECHLIN INC |
| TC83 | 01843 | AMBAC INTERNATIONAL CORPORATION |
| TC83 | 24956 | UNITED TECHNOLOGIES CORP ELECTRO SYSTEMS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-257-1362
Technical Data | NSN 2920-00-257-1362
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 15 BASE MOUNTED |
| DIAMETER | 2.750 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| SECOND MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 3.500 INCHES NOMINAL |
| HEIGHT | 5.000 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 3.5 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | FRICTION |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 2 |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | NONMETALLIC |
| FILLING MEDIUM | COMPOUND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
| MANUFACTURERS CODE | 90927 |
| DESIGN CONTROL REFERENCE | 1GA12024 |
Restrictions/Controls & Freight Information | NSN 2920-00-257-1362
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063120 | SPARK COILS IN BOXES/PKGS 1241/1273 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
