Product Details | IGNITION COIL
2920-00-324-0371 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: MS511141, MS51114-1, CY4002, 8328027, 1394885, 2920-00-324-0371, 00-324-0371, 2920003240371, 003240371
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-324-0371 | 00303 ( COIL, IGNITION ) |

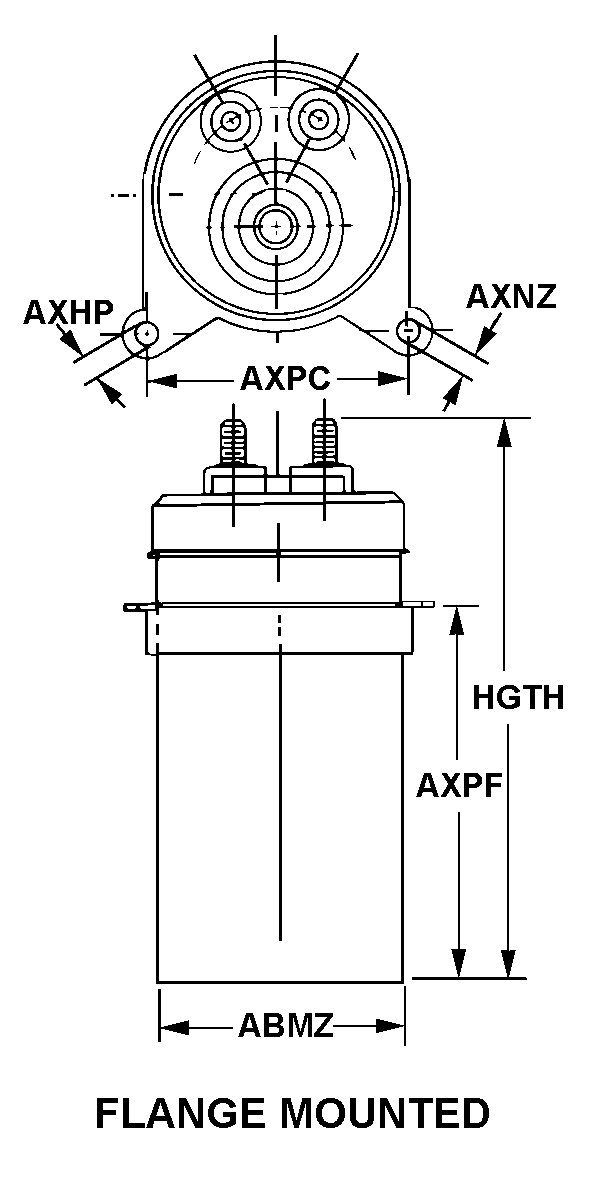

Drawings & Photos | NSN 2920-00-324-0371
Cross Reference | NSN 2920-00-324-0371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1394885 | 12204 | DAIMLER CHRYSLER |
| 8328027 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| CY4002 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| CY4002 | 68505 | PRESTOLITE ELECTRIC INC |
| MS51114-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2920-00-324-0371
Related Products | NSN 2920-00-324-0371
2920-00-324-0388, 2920-00-324-0389, 2920-00-324-0392, 2920-00-324-0815, 2920-00-324-0902
Technical Data | NSN 2920-00-324-0371
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 21 FLANGE MOUNTED |
| DIAMETER | 2.062 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.2083 INCHES MINIMUM AND 0.2097 INCHES MAXIMUM |
| SECOND MOUNTING HOLE DIAMETER | 0.2083 INCHES MINIMUM AND 0.2097 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 1.750 INCHES NOMINAL |
| DISTANCE FROM BASE OF COIL TO MOUNTING | 3.094 INCHES NOMINAL |
| HEIGHT | 4.578 INCHES MAXIMUM |
| DC PRIMARY VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | CARBON BRUSH |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 2 |
| GROUND TERMINAL | NOT PROVIDED |
| INCLOSURE MATERIAL TYPE | METALLIC |
| FILLING MEDIUM | COMPOUND |
| SUBMERSIBILITY | SUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
| MANUFACTURERS CODE | 24975 |
| DESIGN CONTROL REFERENCE | CY4002 |
Restrictions/Controls & Freight Information | NSN 2920-00-324-0371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063120 | SPARK COILS IN BOXES/PKGS 1241/1273 |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-324-0371
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9A | Navy-owned stocks of parts peculiar to combat and tactical vehicles of Army design Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
