Product Details | SPARK PLUG
2920-00-865-6665 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: AER3SA, SR8F23B, WR43L, XML12, YD302, 1015T1011, 1015T101-1 , 2384, 5611324, 943624, 2920-00-865-6665, 00-865-6665, 2920008656665, 008656665
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1962 | 00-865-6665 | 00294 ( SPARK PLUG ) |

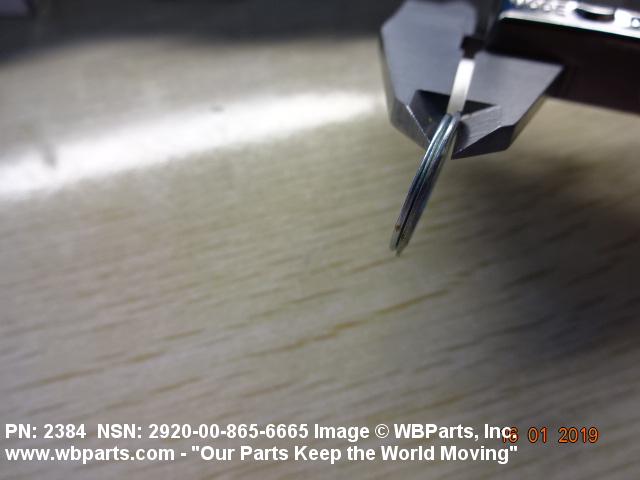

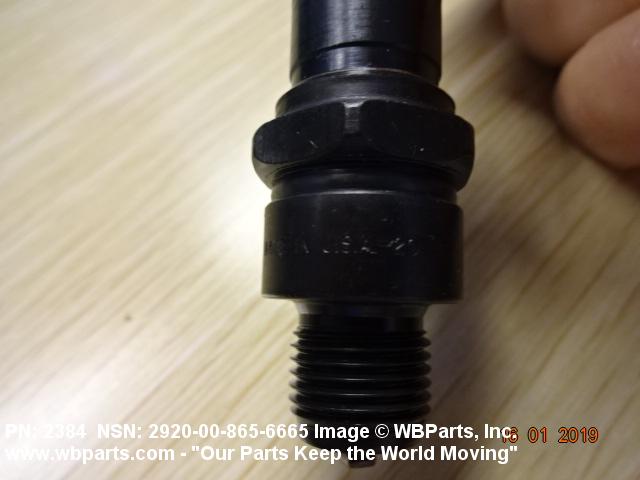

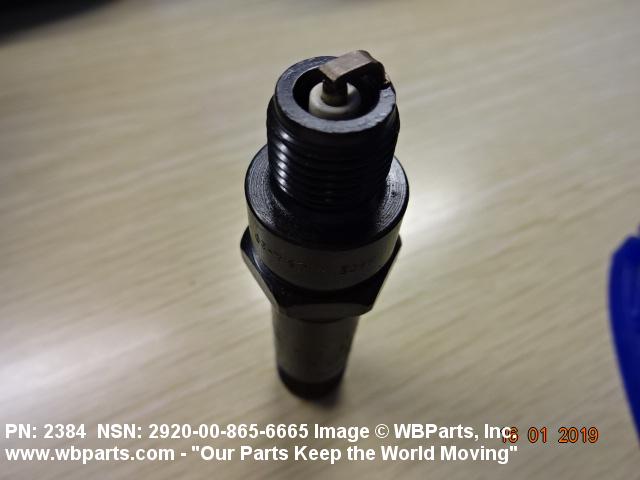

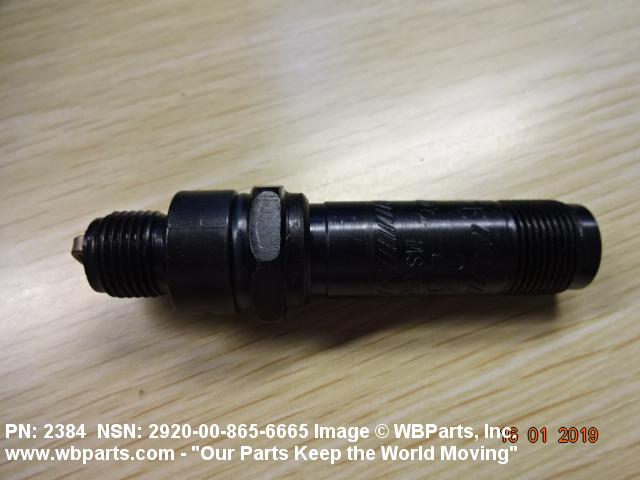

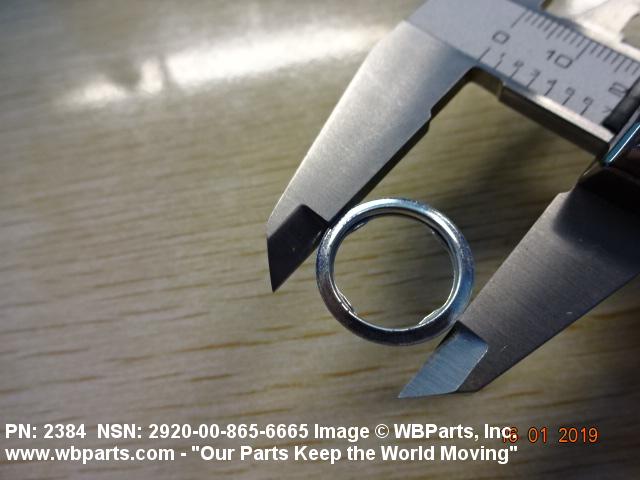

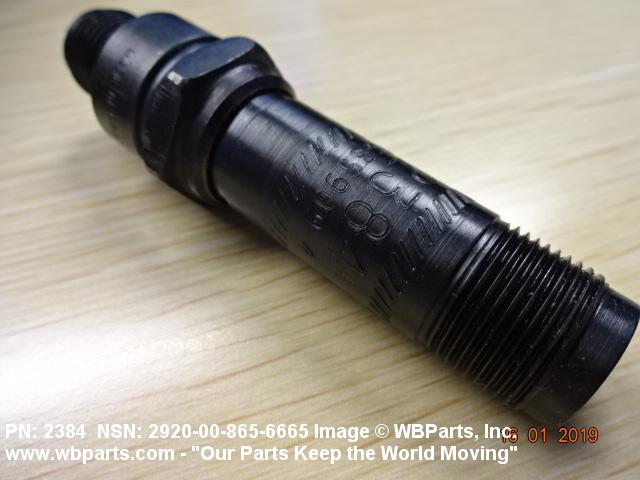

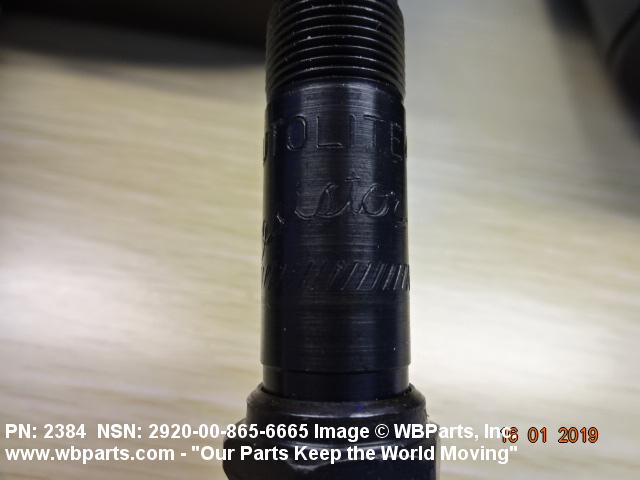

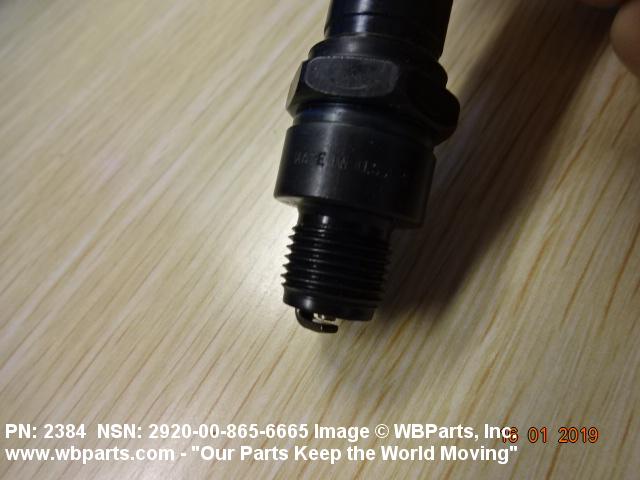

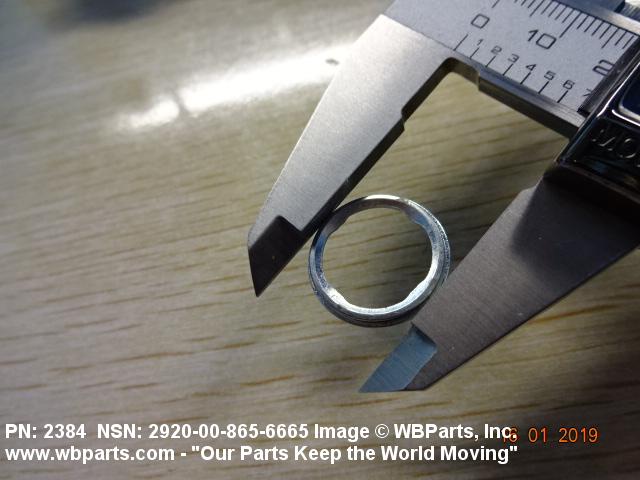

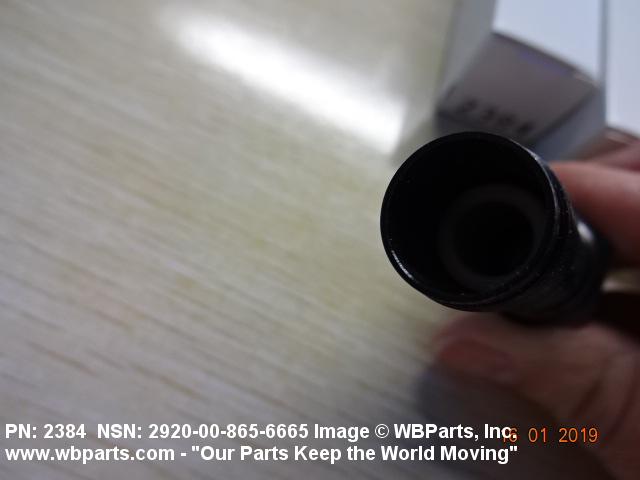

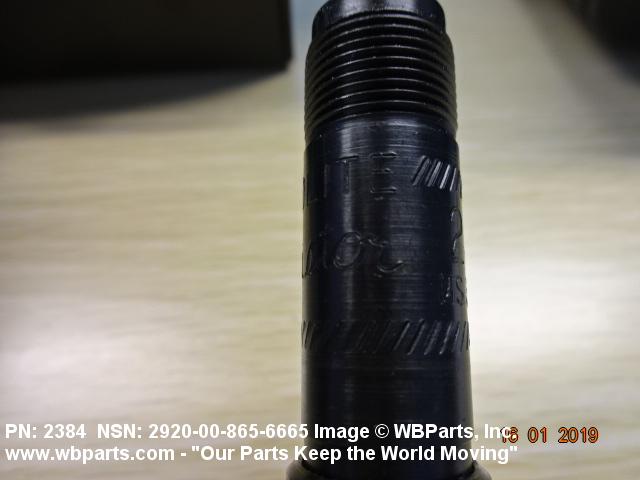

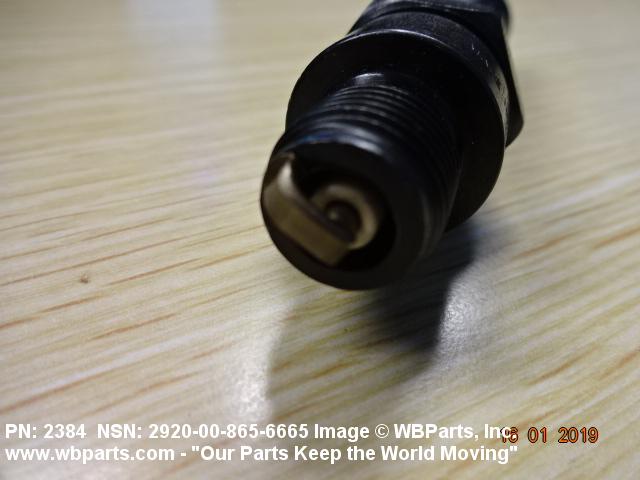

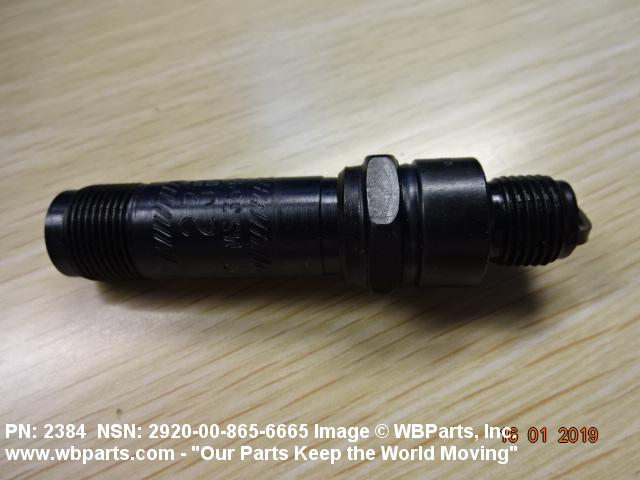

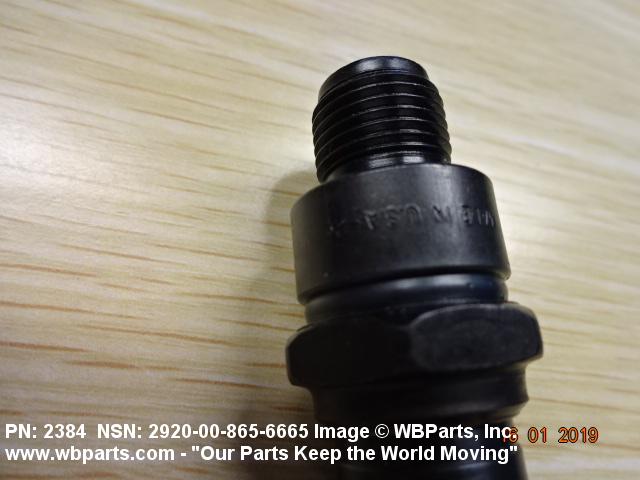

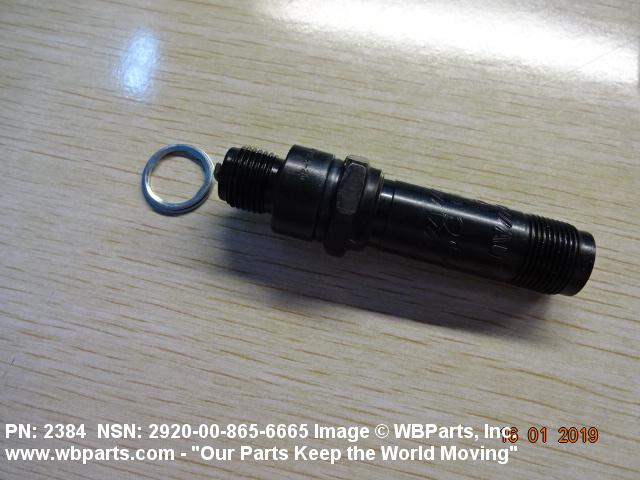

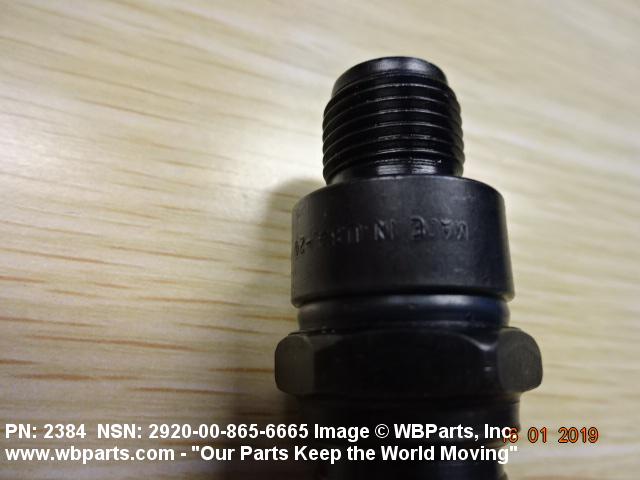

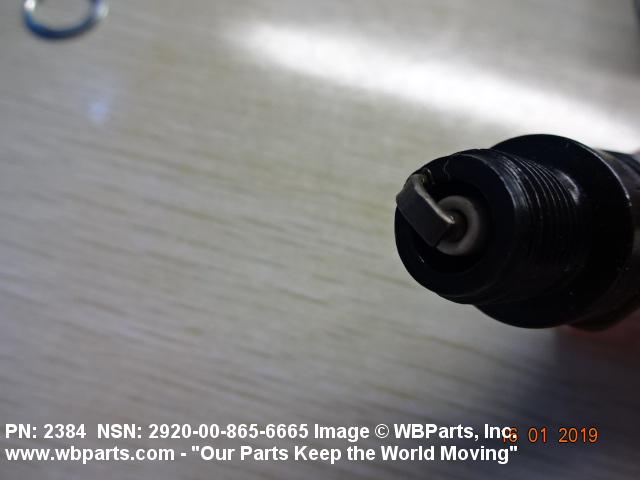

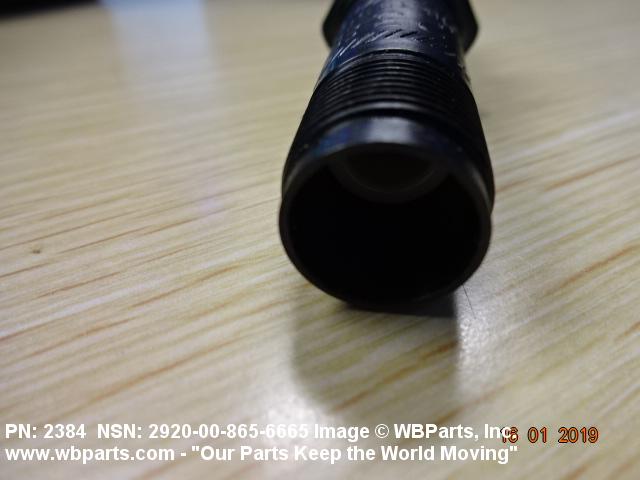

Drawings & Photos | NSN 2920-00-865-6665
Demand History | NSN 2920-00-865-6665
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-865-6665 | 2021-03-23 | 100 | Iceland |
| 2920-00-865-6665 | 2020-01-24 | 80 | Iceland |
| 2920-00-865-6665 | 2019-02-28 | 20 | Iceland |
| 2920-00-865-6665 | 2019-01-08 | 10 | Iceland |
| 2920-00-865-6665 | 2018-06-21 | 823 | DIBBS |
| 2920-00-865-6665 | 2017-06-26 | 391 | DIBBS |
| 2920-00-865-6665 | 2013-05-22 | 0 | DIBBS |
| 2920-00-865-6665 | 2011-02-03 | 741 | DIBBS |
| 2920-00-865-6665 | 2010-11-16 | 32 | Iceland |
| 2920-00-865-6665 | 2010-02-24 | 1085 | DIBBS |
| 2920-00-865-6665 | 2009-11-27 | 807 | DIBBS |
| 2920-00-865-6665 | 2009-03-17 | 32 | Iceland |
| 2920-00-865-6665 | 2008-10-14 | 32 | Iceland |
Cross Reference | NSN 2920-00-865-6665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2384 | 52970 | ALLIED-SIGNAL INC AUTOLITE DIV |
| 5611324 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 5611324 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 943624 | 34623 | AM GENERAL, LLC |
| AER3SA | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| SR8F23B | 03657 | ZELLER CORP THE |
| WR43L | 24617 | GENERAL MOTORS CORP |
| WR43L | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| WR43L | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| XML12 | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
| XML12 | 0B231 | CHAMPION AVIATION INC AUTOMOTIVE DIV |
| YD302 | 66289 | WISCONSIN MOTORS LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2920-00-865-6665
Related Products | NSN 2920-00-865-6665
2920-00-865-7002, 2920-00-865-7014, 2920-00-865-7068, 2920-00-865-7079, 2920-00-865-7083
Technical Data | NSN 2920-00-865-6665
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A5 ELECTRICALLY SHIELDED, FULL INSULATOR, GASKET SEAT |
| REACH LENGTH | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.802 INCHES MINIMUM AND 0.817 INCHES MAXIMUM |
| SEAT MAJOR DIAMETER | 0.785 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.875 INCHES NOMINAL |
| TOP TO TERMINAL CONTACT DISTANCE | 1.245 INCHES MINIMUM AND 1.295 INCHES MAXIMUM |
| TOP TO SHIELD THREAD DISTANCE | 0.095 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| SHIELD THREAD LENGTH | 0.375 INCHES NOMINAL |
| TERMINAL SLEEVE INSIDE DIAMETER | 0.301 INCHES MINIMUM AND 0.316 INCHES MAXIMUM |
| ELECTRODE STYLE | B1 SINGLE FLAT SHELL GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 14-1.25MM BASE 5/8-24 UNEF SHIELDING |
| MEAN EFFECTIVE PRESSURE RATING | 230.0 POUNDS PER SQUARE INCH NOMINAL |
| DC RESISTANCE RATING IN OHMS | 7500.0 MINIMUM AND 12500.0 MAXIMUM |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2920-00-865-6665
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030020 | BRAKE LININGS FLEXIBLE NOI IN PKGS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-865-6665
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
