NSN 2925-00-263-2714 5131B, 513-1B, 00-263-2714
Product Details | IGNITION COIL
2925-00-263-2714 An item specifically designed to produce the high voltage necessary to provide a spark for igniting combustible mixtures, primarily in internal combustion engines.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 5131B, 513-1B, 2925-00-263-2714, 00-263-2714, 2925002632714, 002632714
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-263-2714 | 00303 ( COIL, IGNITION ) |

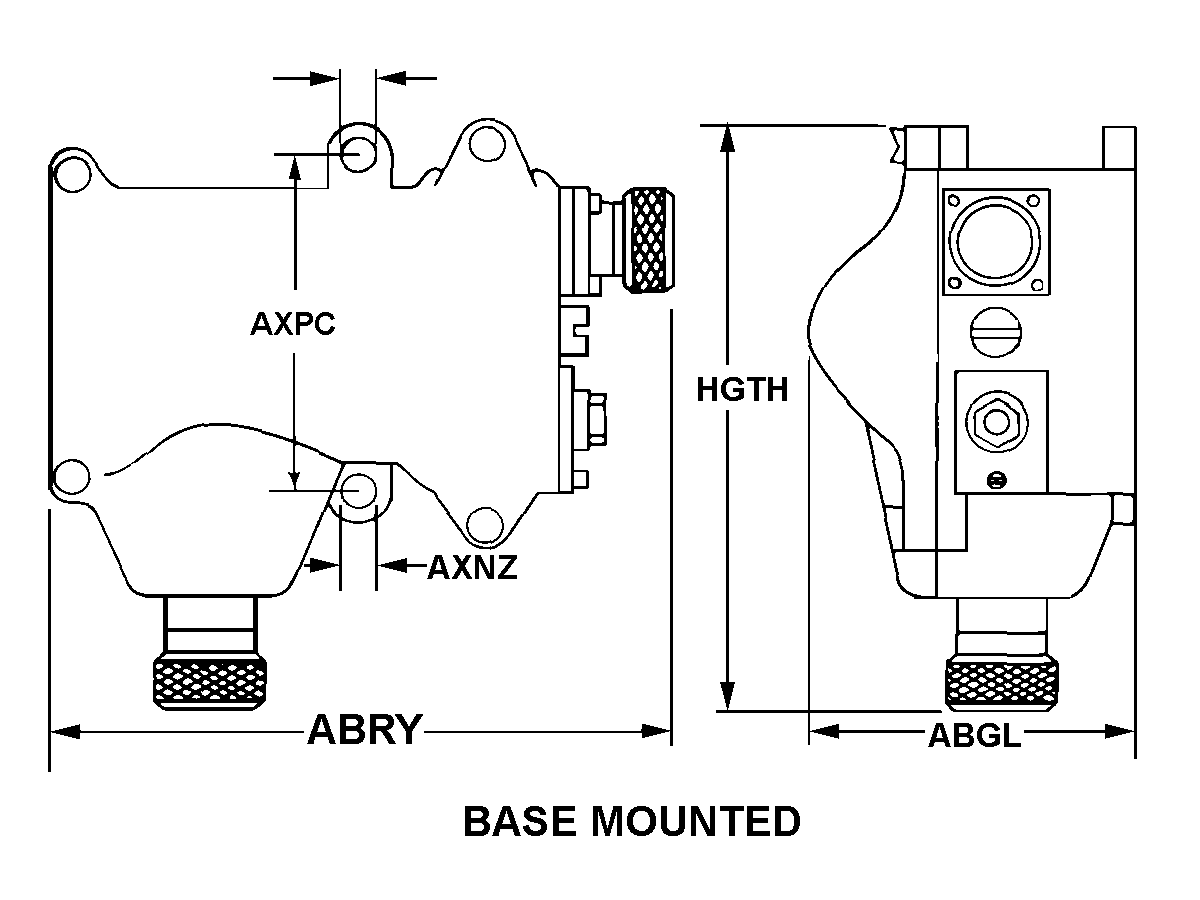

Drawings & Photos | NSN 2925-00-263-2714
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2925-00-263-2714
Related Products | NSN 2925-00-263-2714
Technical Data | NSN 2925-00-263-2714
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10 BASE MOUNTED |
| WIDTH | 2.312 INCHES NOMINAL |
| LENGTH | 3.438 INCHES NOMINAL |
| FIRST MOUNTING HOLE DIAMETER | 0.205 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| SECOND MOUNTING HOLE DIAMETER | 0.205 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND MOUNTING HOLES | 2.748 INCHES MINIMUM AND 2.752 INCHES MAXIMUM |
| HEIGHT | 3.625 INCHES NOMINAL |
| DC PRIMARY VOLTAGE RATING | 24.0 VOLTS NOMINAL |
| HIGH VOLTAGE TERMINAL TYPE | FRICTION |
| HIGH VOLTAGE TERMINAL QUANTITY | 1 |
| LOW VOLTAGE TERMINAL TYPE | THREADED STUD |
| LOW VOLTAGE TERMINAL QUANTITY | 1 |
| GROUND TERMINAL | PROVIDED |
| INCLOSURE MATERIAL TYPE | NONMETALLIC |
| VIBRATOR ADJUSTABILITY | ADJUSTABLE |
| FILLING MEDIUM | COMPOUND |
| ACCOMMODATION TYPE | ARMORED IGNITION CABLE |
| ACCESSORY COMPONENTS | IGNITION CONDENSER |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING REMOVABILITY | NONREMOVABLE |
| MANUFACTURERS CODE | 99551 |
| DESIGN CONTROL REFERENCE | 513-1B |
