NSN 2925-00-986-7073 10-360500-1, 1300197, 1-300-197
Product Details | GAS TURBINE ENGINE SPARK IGNITER
2925-00-986-7073 An item having one or more electrodes arranged to form an air gap across which an electric spark is introduced and discharged to ignite fuel and air mixture in an internal combustion engine for the purpose of initial starting only. In engines designed for the single electrode type, two plugs are required within the combustion chamber in proper placement to effect the air gap. An igniter plug differs from a spark plug by always having cooling facilities in the form of holes or slots in the plug casing to allow entry of air currents around the electrode(s). Excludes SPARK PLUG; GLOW PLUG and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 10-360500-1, 1300197, 1-300-197, 1-300-197-01, 1-300-197-02, 5610719, 2925-00-986-7073, 00-986-7073, 2925009867073, 009867073, 103605001, 130019702, 130019701
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1962 | 00-986-7073 | 19767 ( IGNITER, SPARK, GAS TURBINE ENGINE ) |

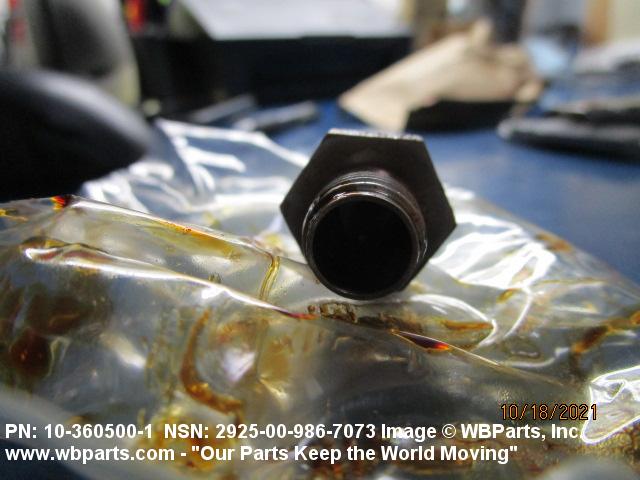

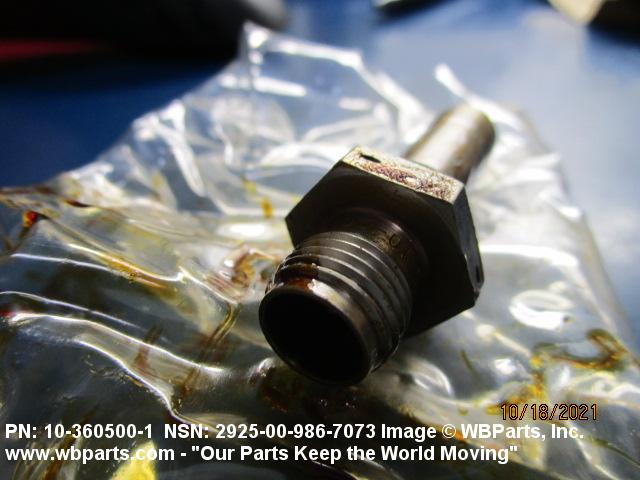

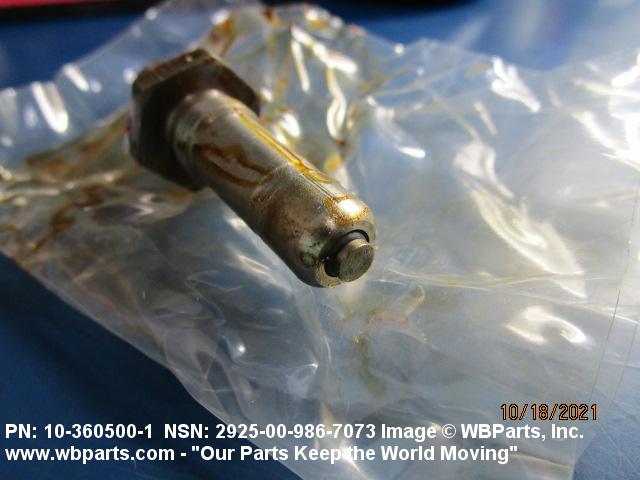

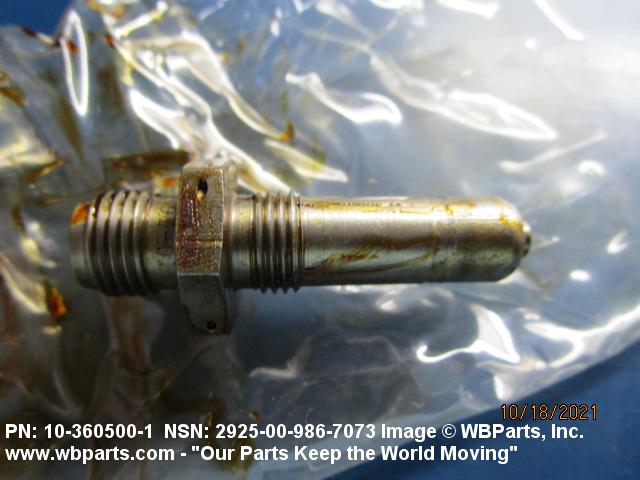

Drawings & Photos | NSN 2925-00-986-7073
Demand History | NSN 2925-00-986-7073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2925-00-986-7073 | 2021-07-188 | 2 | Australia |
| 2925-00-986-7073 | 2021-03-80 | 2 | Australia |
| 2925-00-986-7073 | 2014-10-287 | 5 | DIBBS |
| 2925-00-986-7073 | 2014-09-273 | 5 | DIBBS |
| 1300197 | 2012-09-251 | 1 | US |
Cross Reference | NSN 2925-00-986-7073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-300-197 | 91547 | HONEYWELL INTERNATIONAL INC DBA ENGINES & SYSTEMS |
| 1-300-197 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1-300-197-01 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1-300-197-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 10-360500-1 | 59501 | UNISON INDUSTRIES, LLC |
| 10-360500-1 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 5610719 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2925-00-986-7073
Related Products | NSN 2925-00-986-7073
Technical Data | NSN 2925-00-986-7073
| Characteristic | Specifications |
|---|---|
| POLARIZATION FEATURE | INCLUDED |
| PLUG DESIGN | STRAIGHT |

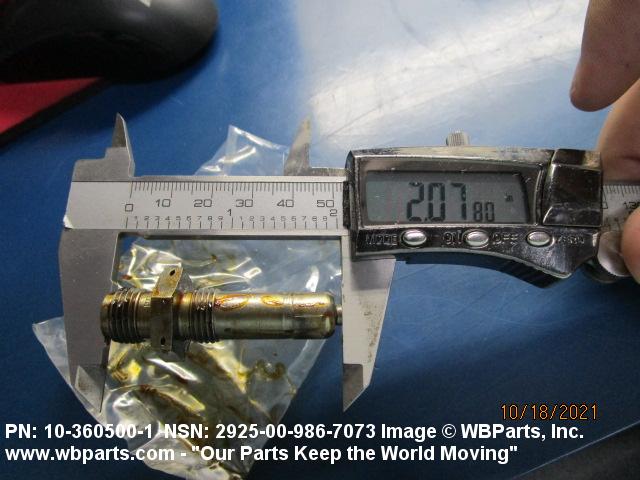

| LENGTH | 2.076 INCHES MINIMUM AND 2.116 INCHES MAXIMUM |

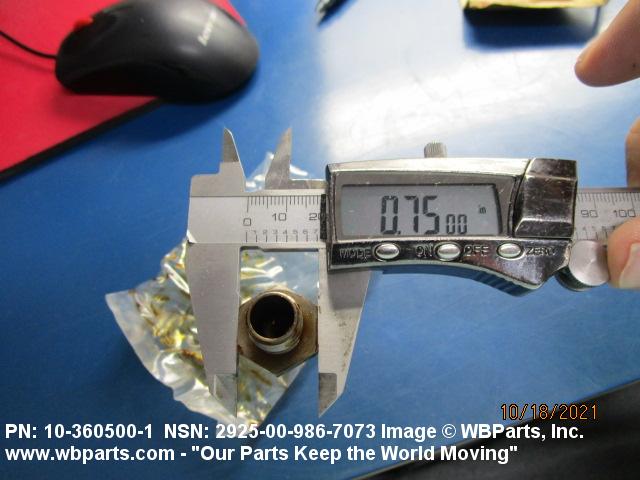

| WIDTH | 0.750 INCHES NOMINAL |
| DEPTH | 0.461 INCHES MINIMUM AND 0.476 INCHES MAXIMUM |
| MOUNTING METHOD | THREAD |
| MOUNTING FACILITY THREAD SIZE | 1/2-20 |
Restrictions/Controls & Freight Information | NSN 2925-00-986-7073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177080 | SPARK PLUGS NOI IN BXS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 583 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2925-00-986-7073
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
