NSN 2935-00-203-8730 AIR4125111, AIR4125-11-1, AN4125111
Product Details | ENGINE LUBRICATING OIL COOLER
2935-00-203-8730 A heat transfer device specifically designed to remove heat from lubricating oil to lower its temperature. Excludes radiators.20229300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving
Part Alternates: AIR4125111, AIR4125-11-1, AN4125111, AN4125-11-1, 2935-00-203-8730, 00-203-8730, 2935002038730, 002038730
Engine Accessories | Engine System Cooling Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-203-8730 | 35373 ( COOLER, LUBRICATING OIL, ENGINE ) |

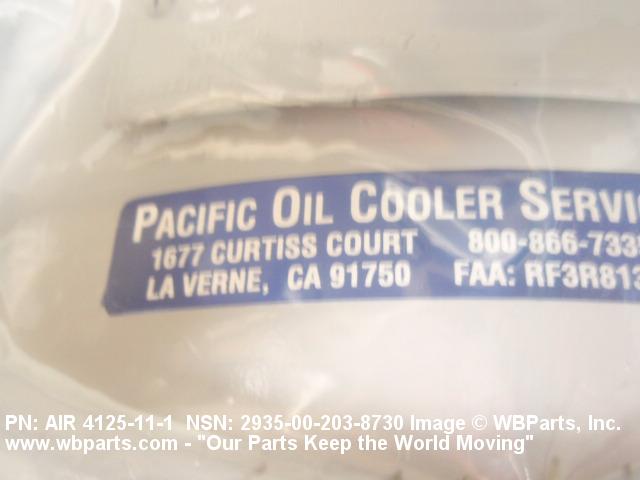

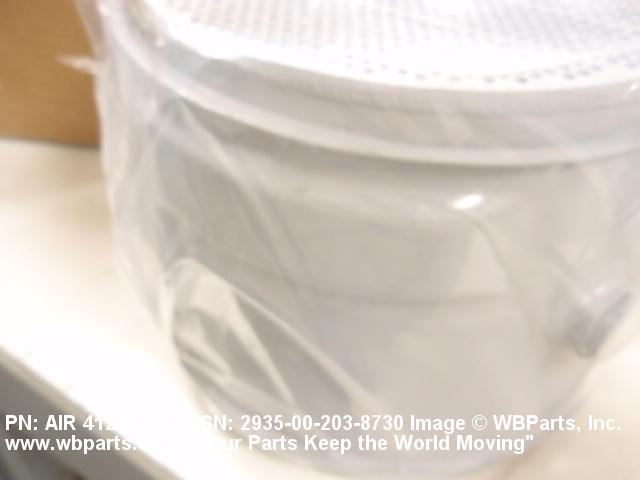

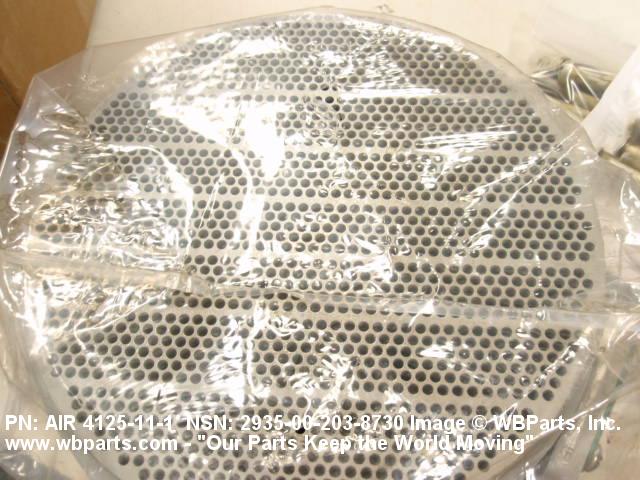

Drawings & Photos | NSN 2935-00-203-8730
Demand History | NSN 2935-00-203-8730
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2935-00-203-8730 | 2017-01-16 | 2 | US |
| 2935-00-203-8730 | 2010-07-202 | 1 | United States |
| 2935-00-203-8730 | 2010-07-201 | 1 | United States |
| 2935-00-203-8730 | 2009-03-83 | 1 | Netherlands |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2935-00-203-8730
Technical Data | NSN 2935-00-203-8730
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM OVERALL |
| WIDTH | 11.810 INCHES NOMINAL |
| THICKNESS | 9.560 INCHES NOMINAL |
| LENGTH | 12.620 INCHES NOMINAL |
| EFFECTIVE HEAT TRANSFER SURFACE AREA | 66.200 SQUARE FEET |
| CORE FRONTAL AREA | 95.000 SQUARE INCHES |
| OIL FLOW RATE | 95.000 POUNDS PER MINUTE |
| III FSC APPLICATION DATA | ENGINE COOLING SYSTEM COMPONENTS,AIRCRAFT |
| MANUFACTURERS CODE | 70210 |
| DESIGN CONTROL REFERENCE | AIR4125-11-1 |
Restrictions/Controls & Freight Information | NSN 2935-00-203-8730
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
