NSN 2935-01-264-3432 794593, 01-264-3432, 012643432
Product Details | ENGINE LUBRICATING OIL COOLER
2935-01-264-3432 A heat transfer device specifically designed to remove heat from lubricating oil to lower its temperature. Excludes radiators.20229300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving
Part Alternates: 794593, 2935-01-264-3432, 01-264-3432, 2935012643432, 012643432
Engine Accessories | Engine System Cooling Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 29 SEP 1987 | 01-264-3432 | 35373 ( COOLER, LUBRICATING OIL, ENGINE ) |
Drawings & Photos | NSN 2935-01-264-3432
Cross Reference | NSN 2935-01-264-3432
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 794593 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2935-01-264-3432
Technical Data | NSN 2935-01-264-3432
| Characteristic | Specifications |
|---|---|

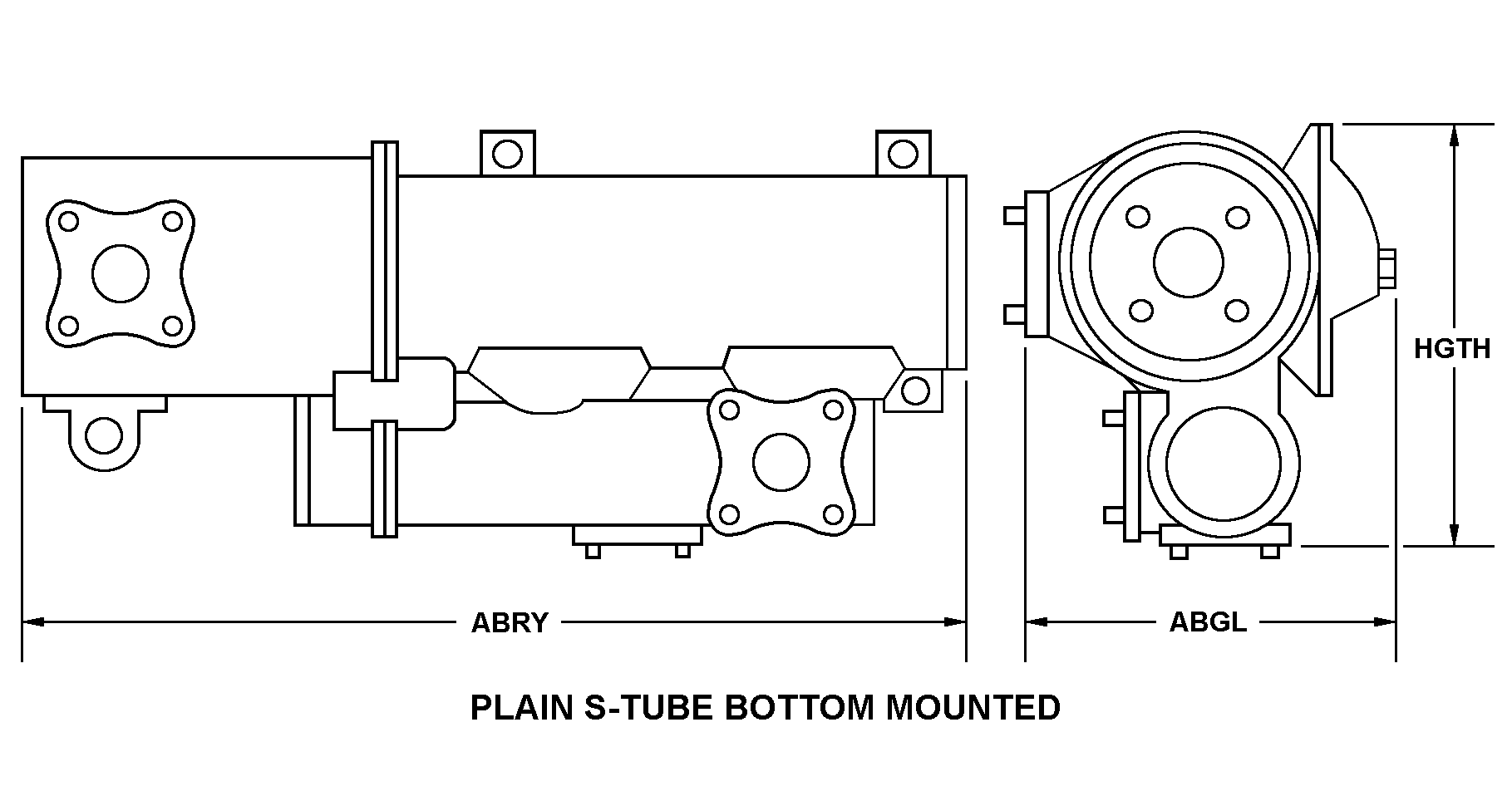

| STYLE DESIGNATOR | A19 PLAIN S-TUBE BOTTOM MOUNTED |
| WIDTH | 8.000 INCHES NOMINAL |
| LENGTH | 18.000 INCHES NOMINAL |
| SPECIAL FEATURES | USED TO COOL OIL AND HEAT FUEL;T.O. 2J-TF33-44;4 PER AIRCRAFT |
| III END ITEM IDENTIFICATION | E-3A/B/C ACFT |
| III FSC APPLICATION DATA | TF33-PW-100A ENG |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 794593 |
Restrictions/Controls & Freight Information | NSN 2935-01-264-3432
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
