NSN 2940-01-399-5669 12492681, 125-040-002, 59-934232-1
Product Details | INTAKE AIR CLEANER FILTER ELEMENT
2940-01-399-5669 A replaceable device designed to remove dust, pollen or other foreign matter from the air passing through it. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, or the like. It is designed to fit into an AIR CLEANER, INTAKE.20329400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43100028Compressors and Vacuum Pumps
Part Alternates: 12492681, 125-040-002, 59-934232-1, 59934232-1, 2940-01-399-5669, 01-399-5669, 2940013995669, 599342321, 013995669, 125040002
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 30 NOV 1994 | 01-399-5669 | 60475 ( FILTER ELEMENT, INTAKE AIR CLEANER ) |

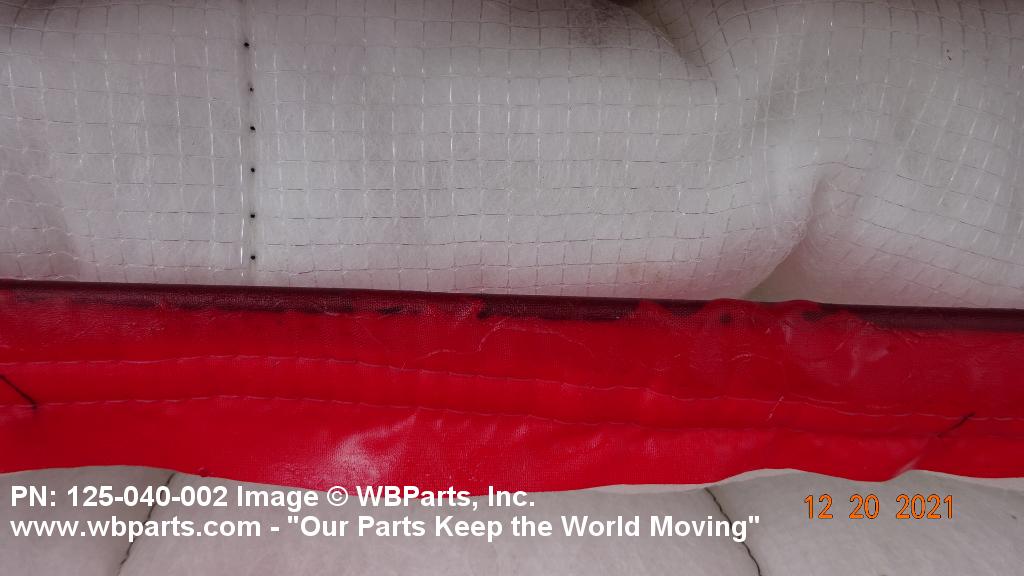

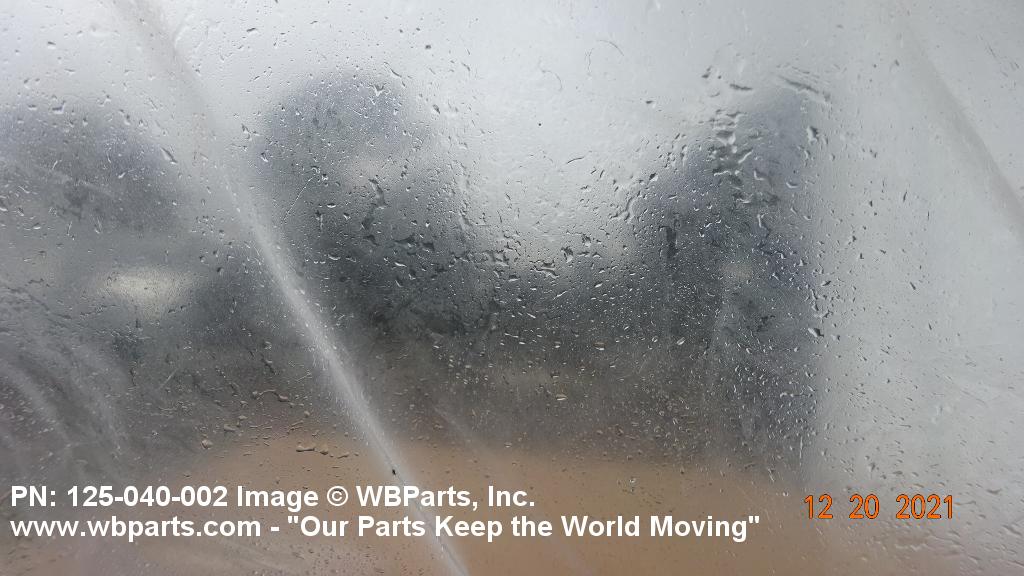

Drawings & Photos | NSN 2940-01-399-5669
Demand History | NSN 2940-01-399-5669
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2940-01-399-5669 | 2024-02-36 | 16 | US |
| 2940-01-399-5669 | 2023-08-221 | 6 | US |
| 2940-01-399-5669 | 2023-08-219 | 6 | US |
| 125040002 | 2023-05-143 | 4 | US |
| 2940-01-399-5669 | 2022-12-356 | 8 | US |
| 2940-01-399-5669 | 2022-12-353 | 1 | US |
| 2940-01-399-5669 | 2021-12-344 | 8 | United States |
| 599342321 | 2021-07-194 | 8 | US |
| 599342321 | 2019-09-248 | 16 | US |
| 2940-01-399-5669 | 2019-04-99 | 4 | FR |
| 2940-01-399-5669 | 2019-04-99 | 4 | FR |
| 125040002 | 2019-03-86 | 8 | US |
| 2940-01-399-5669 | 2017-09-263 | 2 | us |
| 2940-01-399-5669 | 2013-12-339 | 50 | DIBBS |
| 2940-01-399-5669 | 2013-06-164 | 45 | DIBBS |
| 2940-01-399-5669 | 2013-04-91 | 12 | DIBBS |
| 2940-01-399-5669 | 2010-09-246 | 50 | DIBBS |
| 2940-01-399-5669 | 2010-07-187 | 47 | DIBBS |
| 2940-01-399-5669 | 2010-03-69 | 29 | DIBBS |
| 2940-01-399-5669 | 2009-09-268 | 62 | DIBBS |
| 2940-01-399-5669 | 2009-01-09 | 44 | DIBBS |
| 2940-01-399-5669 | 2008-06-177 | 54 | DIBBS |
| 2940-01-399-5669 | 2007-06-177 | 33 | DIBBS |
Cross Reference | NSN 2940-01-399-5669
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2940-01-399-5669
Related Products | NSN 2940-01-399-5669
Technical Data | NSN 2940-01-399-5669
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 RECTANGULAR |
| OVERALL WIDTH | 29.375 INCHES NOMINAL |
| BODY THICKNESS | 6.875 INCHES NOMINAL |
| DESIGN TYPE | REUSABLE |
| ROTATION METHOD | MANUAL |
| SPECIAL FEATURES | ENGINE INTAKE FILTERS FOR LOCOMOTIVE APPLICATIONS |
| III STORAGE TYPE | UNHEATED WAREHOUSE |
| III SPECIAL HANDLING FEATURE | FRAGILE |
| III INTERMEDIATE PACKAGE QUANTITY | 1 |
| III EXTERIOR CONTAINER QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 2940-01-399-5669
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190500 | VEHICLE PARTS GROUP |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2940-01-399-5669
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
