Product Details | FLUID FILTERING DISK
2945-01-192-5429 A flat, circular, replaceable device, with or without a centrally located hole, designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous, fibrous or shredded material (metallic or non-metallic) which retains the solid particles in the fluid passing through it. It may be encased and used as a single item or stacked to form a fluid filter element. Excludes DISK, SOLID, PLAIN; DIAPHRAGM (as modified); STRAINER ELEMENT, SEDIMENT; and WIRE FABRIC.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 192725, 2945-01-192-5429, 01-192-5429, 2945011925429, 011925429
Engine Accessories | Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 22 OCT 1984 | 01-192-5429 | 61856 ( FILTERING DISK, FLUID ) |
Drawings & Photos | NSN 2945-01-192-5429
Cross Reference | NSN 2945-01-192-5429
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 192725 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2945-01-192-5429
2945-01-195-5263, 2945-01-195-5264, 2945-01-196-8492, 2945-01-202-6541, 2945-01-204-7447
Technical Data | NSN 2945-01-192-5429
| Characteristic | Specifications |
|---|---|

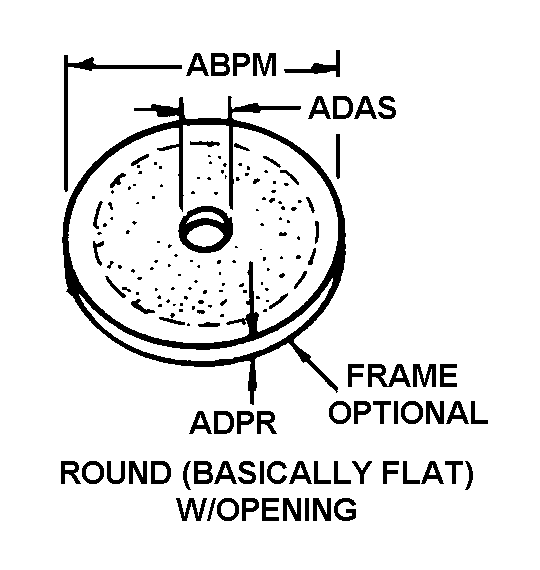

| STYLE DESIGNATOR | A5 ROUND W/OPENING |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.391 INCHES NOMINAL |
| BODY THICKNESS | 0.031 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING FRAME |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5516 ASSN STD SINGLE MATERIAL RESPONSE FRAME |
| FILTERING MEDIA DESIGN | MESH SINGLE FILTERING MEDIA RESPONSE |
| MESH SIZE | 30.0 |
| WIRE DIAMETER | 0.012 INCHES NOMINAL |
| DESIGN TYPE | LIMITED |
| FILTRATION RATING IN MICRONS | NOT RATED |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| MAXIMUM AIR FLOW RATE | NOT RATED |
| SPECIAL FEATURES | USED ON FUEL CONTROL,P/N 440704,FOR J57 AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 06848 |
| DESIGN CONTROL REFERENCE | 192725 |
Restrictions/Controls & Freight Information | NSN 2945-01-192-5429
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2945-01-192-5429
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | RU | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, J-57 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
