NSN 2990-00-209-7380 H11765, 00-209-7380, 002097380
Product Details | HAND CRANK
2990-00-209-7380 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.20229900045Miscellaneous Engine Accessories, Nonaircraft53400020Hardware, Commercial
Part Alternates: H11765, 2990-00-209-7380, 00-209-7380, 2990002097380, 002097380
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-209-7380 | 17533 ( CRANK, HAND ) |
Drawings & Photos | NSN 2990-00-209-7380
Cross Reference | NSN 2990-00-209-7380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H11765 | 54764 | MANCRAFT INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2990-00-209-7380
Technical Data | NSN 2990-00-209-7380
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, FED STD 66, COMP 8630 OVERALL |
| ARM STYLE | 3 STRAIGHT |
| CRANK THROW LENGTH | 7.000 INCHES NOMINAL |
| DRIVE END STYLE | 103 EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| LENGTH FROM END TO ARM CENTER | 0.375 INCHES NOMINAL |

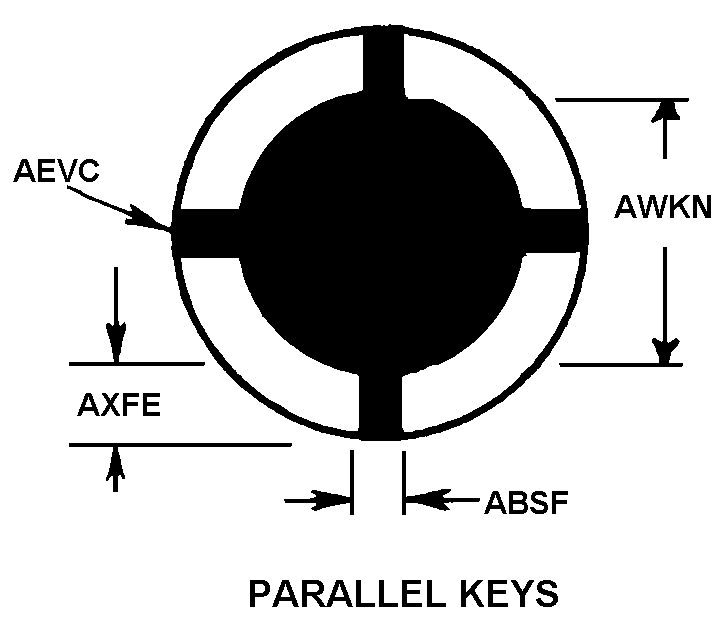

| DRIVE FACILITY STYLE | 157 PARALLEL KEYS |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| KEY WIDTH | 0.312 INCHES NOMINAL |
| KEY HEIGHT | 0.375 INCHES NOMINAL |
| DRIVE FACILITY OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| KEY QUANTITY | 2 |
| CRANK OVERALL LENGTH | ANY ACCEPTABLE |
| HANDLE MOUNTING METHOD | INTEGRAL |
| HANDLE STYLE | 60 RECESSED FLAT |
| HANDLE LENGTH | 3.500 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | INCLUDED |
| RATCHET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2990-00-209-7380
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 130400 | STARTING/CRANKING SYSTMS I/C ENG |
| Less than car load rating | T | 55 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
