NSN 2990-00-331-7705 003317705
Product Details | ENGINE STARTER ROPE PULLEY

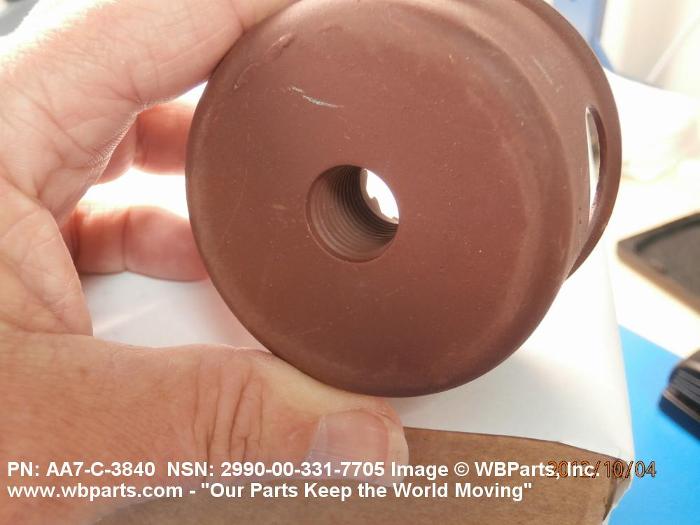

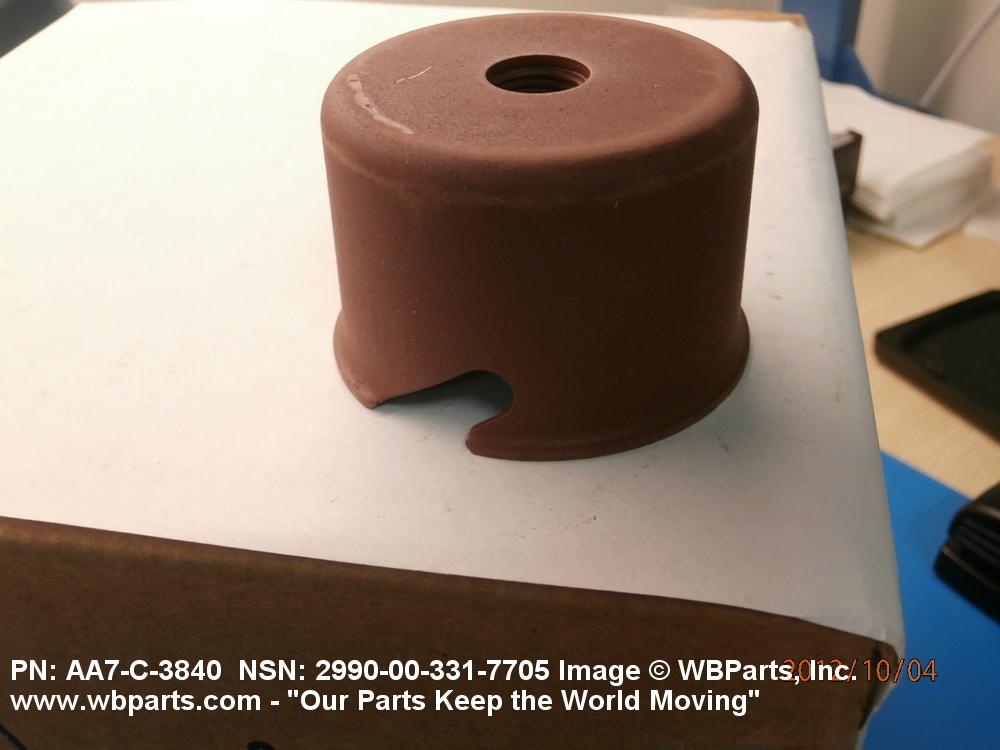

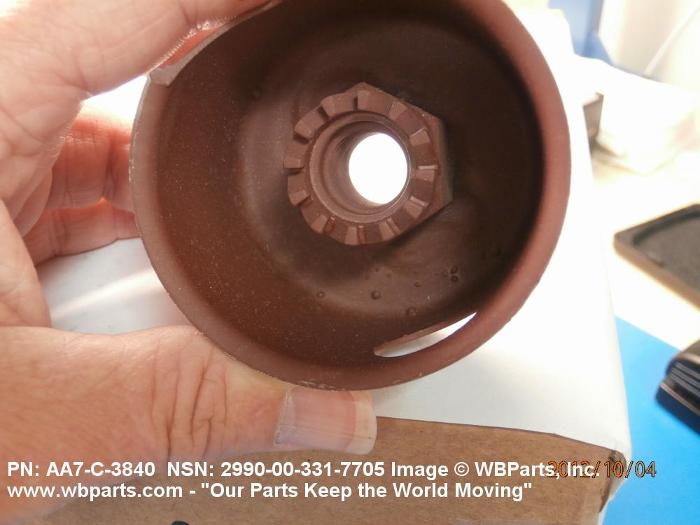

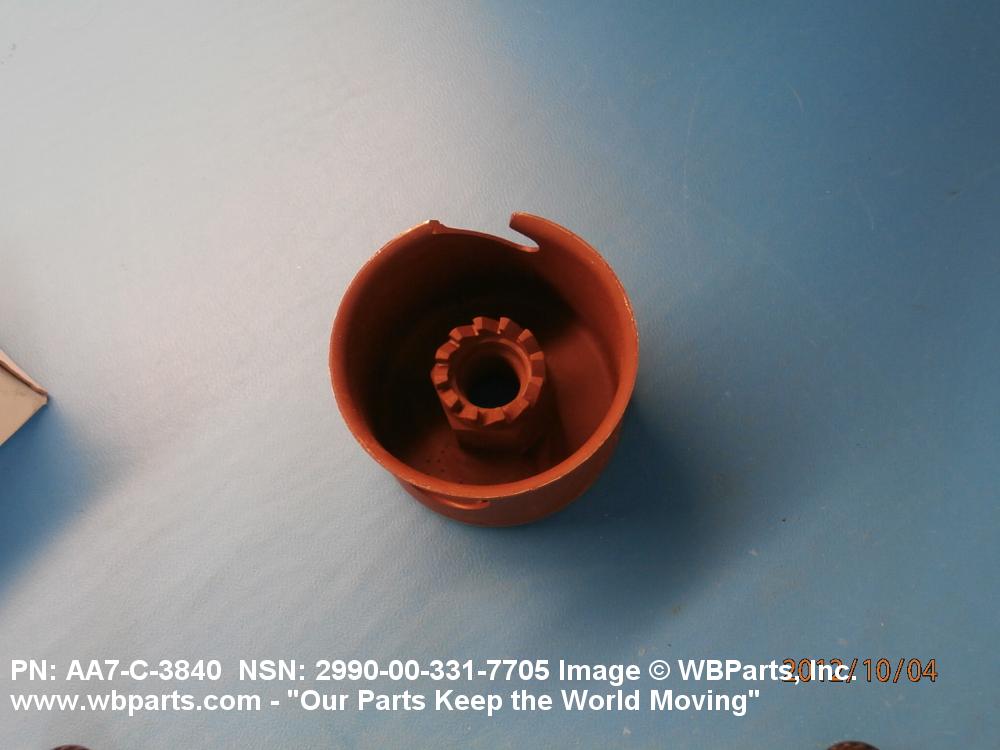

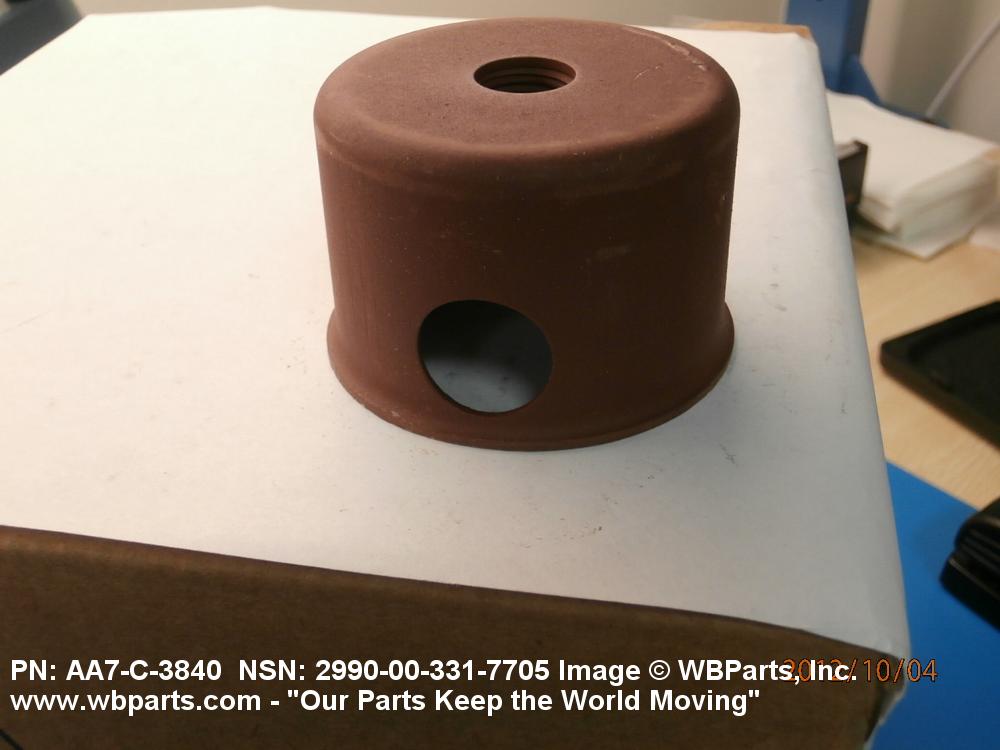

2990-00-331-7705 A grooved or flat faced pulley having one or more notches in the rim or flange for attaching a rope or cable for the purpose of cranking an engine.
Part Alternates: 003317705
Engine Accessories | Miscellaneous Engine Accessories, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 00-331-7705 | 16391 ( PULLEY, ENGINE STARTER ROPE ) |

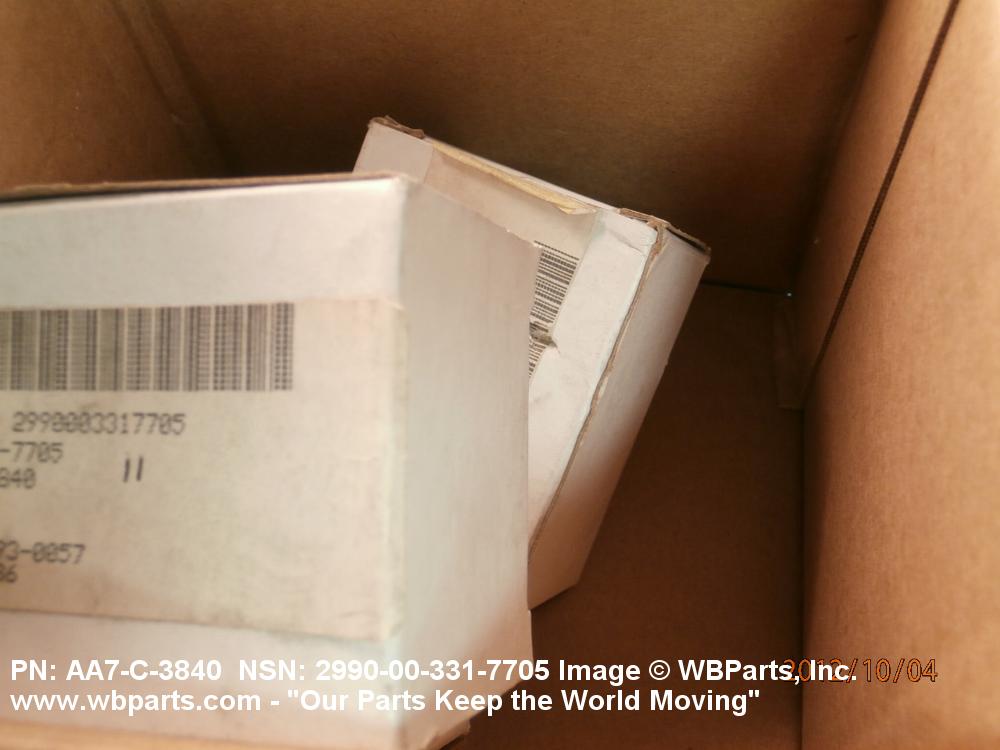

Drawings & Photos | NSN 2990-00-331-7705
Demand History | NSN 2990-00-331-7705
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2990-00-331-7705 | 2012-09-268 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2990-00-331-7705
Related Products | NSN 2990-00-331-7705
Technical Data | NSN 2990-00-331-7705
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT, RED OXIDE |
| FACE SHAPE | FLAT |
| OUTSIDE DIAMETER | 2.570 INCHES NOMINAL |
| ROPE ACCOMMODATION WIDTH | 1.500 INCHES NOMINAL |
| ROPE ACCOMMODATION DIAMETER | 2.398 INCHES NOMINAL |
| HUB | INCLUDED |
| HUB DIAMETER | 1.000 INCHES NOMINAL |
| HUB PROJECTION LENGTH AND LOCATION | 1.125 INCHES NOMINAL ONE END |
| BORE TYPE | THREADED |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.562-18 UNF |
| ROPE STARTER RETAINING NOTCH LOCATION AND QUANTITY | 1 OUTER RIM |
| SECURING DEVICE TYPE | MISCELLANEOUS PROVISION |
| MISCELLANEOUS SECURING PROVISION AND LOCATION | THREADED BORE |
| III END ITEM IDENTIFICATION | GRUMMAN,AIRCRAFT,MODEL A10 |
Restrictions/Controls & Freight Information | NSN 2990-00-331-7705
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
