NSN 2995-00-914-1359 ATS14044, ATS140-44, 38350411
Product Details | AIR TURBINE ENGINE STARTER
2995-00-914-1359 An item designed to accelerate turbojet and turboprop engines from rest to starter cutoff speed by means of an air driven turbine.
Part Alternates: ATS14044, ATS140-44, 38350411, 383504-1-1, 2995-00-914-1359, 00-914-1359, 2995009141359, 009141359
Engine Accessories | Miscellaneous Engine Accessories, Aircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1960 | 00-914-1359 | 20437 ( STARTER, ENGINE, AIR TURBINE ) |

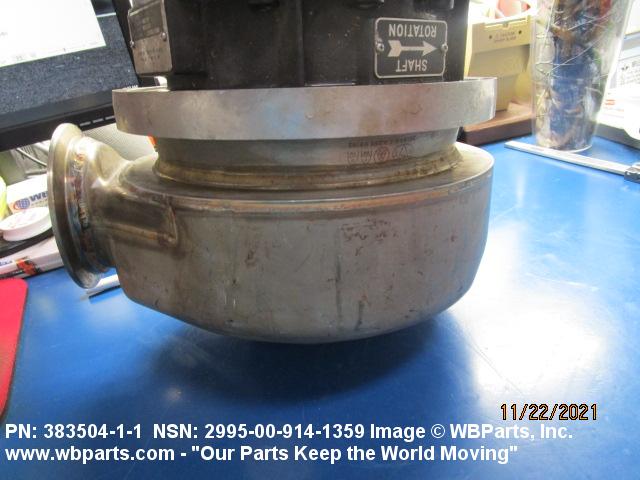

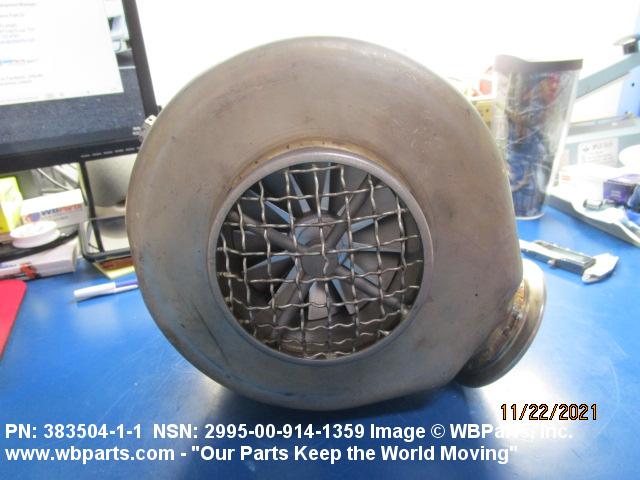

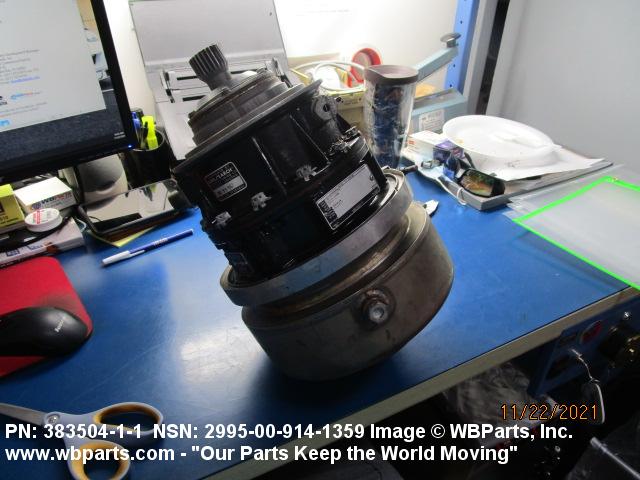

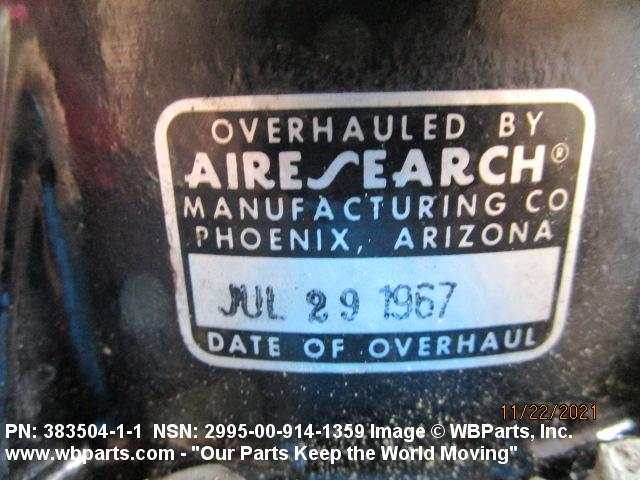

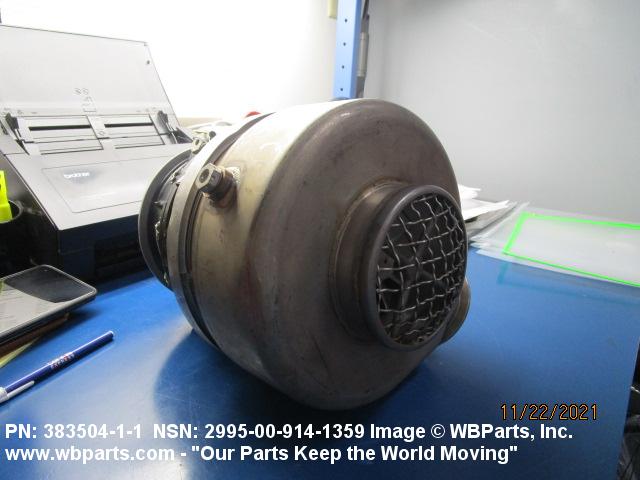

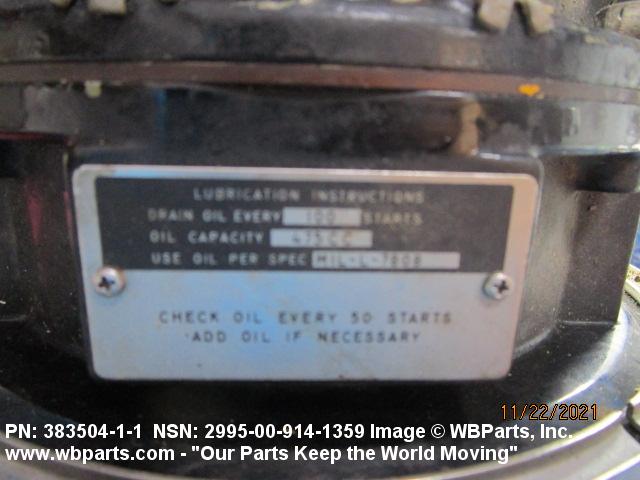

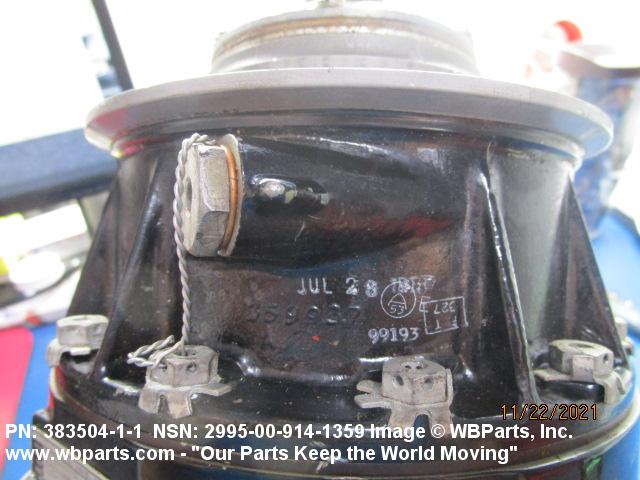

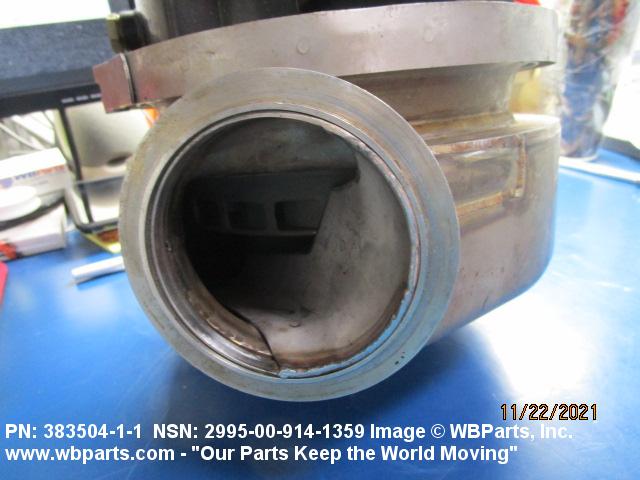

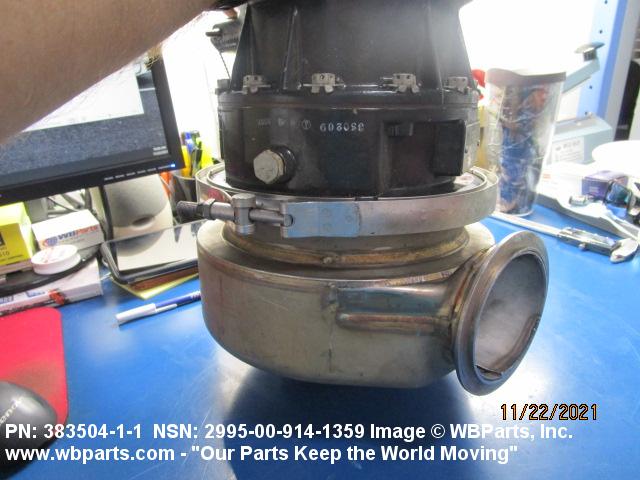

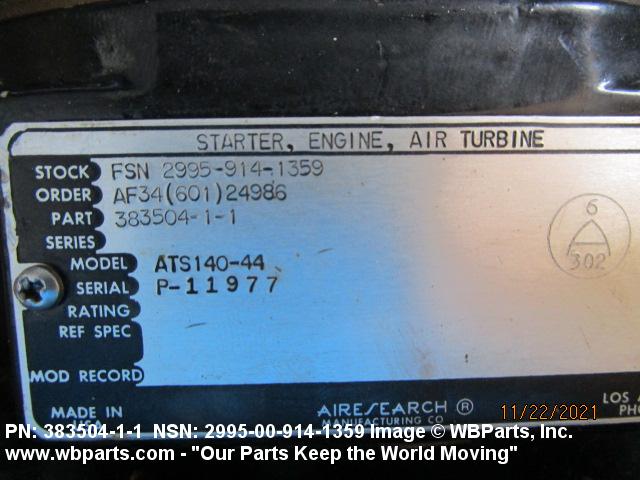

Drawings & Photos | NSN 2995-00-914-1359
Demand History | NSN 2995-00-914-1359
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 38350411 | 2022-06-178 | 1 | ID |
| 38350411 | 2021-11-319 | 1 | United States |
| 38350411 | 2015-07-195 | 25 | United States |
| 2995-00-914-1359 | 2009-02-37 | 1 | IT |
| 2995-00-914-1359 | 2008-01-24 | 1 | Canada |
| ATS14044 | 2006-01-10 | 10 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2995-00-914-1359
Related Products | NSN 2995-00-914-1359
Technical Data | NSN 2995-00-914-1359
| Characteristic | Specifications |
|---|---|
| AIR SUPPLY INLET PRESSURE | 45.0 POUNDS PER SQUARE INCH |
| AIR SUPPLY INLET TEMP RATING | 550.0 DEG FAHRENHEIT |
| AIR SUPPLY FLOW RATE | 107.0 POUNDS PER MINUTE |
| OUTPUT TORQUE RATING | 975.000 FOOT-POUNDS NOMINAL |
| DRIVE ROTATION DIRECTION | CLOCKWISE |

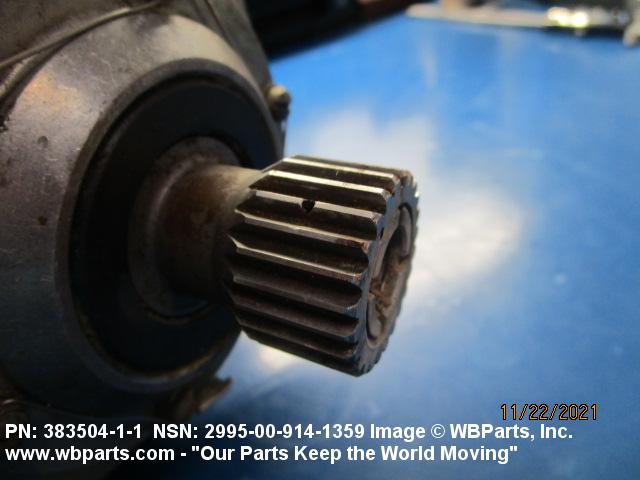

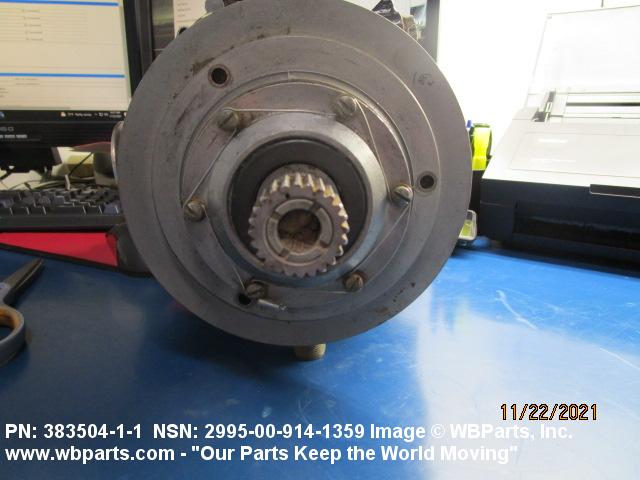

| DRIVE TYPE | SPLINE |
| TEETH QUANTITY | 24 |
| SPLINE PITCH | 20 |
| PITCH CIRCLE DIAMETER | 1.200 INCHES NOMINAL |
| MAJOR DIAMETER | 1.2645 INCHES MAXIMUM |
| MINOR DIAMETER | 1.091 INCHES MINIMUM |

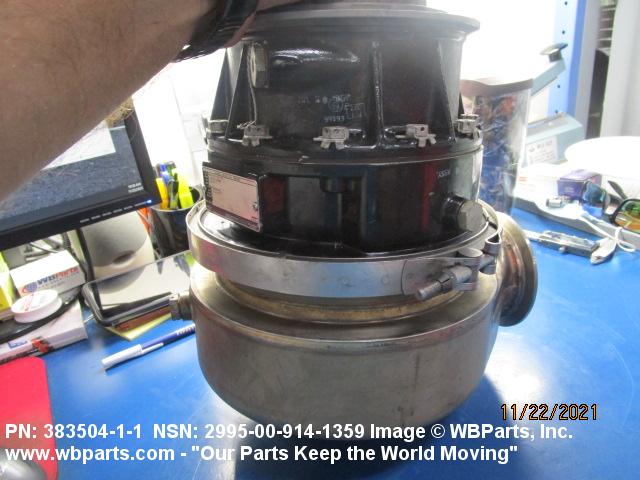

| AIR INLET CONNECTION TYPE | BAND COUPLER |
| QUANTITY | 1 |
| OUTSIDE DIAMETER | 3.850 INCHES NOMINAL |
| QUICK DETACHABLE MOUNTING FEATURE | NOT INCLUDED |
| STANDARD MOUNTING FEATURE | INCLUDED |
| DOCUMENT SOURCE | 99193 |
| DOCUMENT IDENTIFICATION | AN20002 |
| MOUNTING TYPE DESIGNATOR | TYPE 12-S |
| III FSC APPLICATION DATA | ENGINE STARTING SYSTEM ACFT |
| MANUFACTURERS CODE | 59364 |
| DESIGN CONTROL REFERENCE | 383504-1-1 |
Restrictions/Controls & Freight Information | NSN 2995-00-914-1359
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI SUB 2 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2995-00-914-1359
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | FN | JET ENGINES(J57) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
