NSN 2995-00-925-5682 1434633771, 1434-633771, 3881783101
Product Details | LINEAR ACTUATING CYLINDER
2995-00-925-5682 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.20411900057Specialized Test and Handling Equipment, Nuclear Ordnance16500058Aircraft Hydraulic, Vacuum, and De-icing System Components1710000030400042Miscellaneous Power Transmission Equipment
Part Alternates: 1434633771, 1434-633771, 3881783101, 3881783-101, 2995-00-925-5682, 00-925-5682, 2995009255682, 009255682
Engine Accessories | Miscellaneous Engine Accessories, Aircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 20 JAN 1966 | 00-925-5682 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |
Drawings & Photos | NSN 2995-00-925-5682
Cross Reference | NSN 2995-00-925-5682
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1434-633771 | 09523 | PARKER-HANNIFIN CORPORATION DBA GAS TURBINE FUEL SYSTEMS DIV |
| 1434-633771 | 34336 | TECT AEROSPACE INC. DBA TECT AEROSPACE SOUTHWEST |
| 1434-633771 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
| 3881783-101 | 09523 | PARKER-HANNIFIN CORPORATION DBA GAS TURBINE FUEL SYSTEMS DIV |
| 3881783-101 | 34336 | TECT AEROSPACE INC. DBA TECT AEROSPACE SOUTHWEST |
| 3881783-101 | 92003 | PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2995-00-925-5682
Technical Data | NSN 2995-00-925-5682
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, AISI 4140 |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| PORT LOCATION AND QUANTITY | 2 CENTER SECTION |

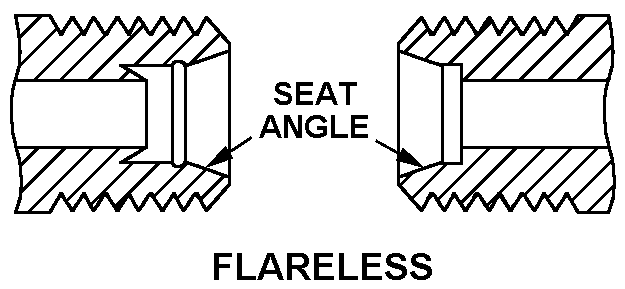

| PORT STYLE | 18 FLARELESS |
| PORT THREAD SERIES DESIGNATOR | UNJF |
| SEAT ANGLE IN DEG | 12.0 |
| III END ITEM IDENTIFICATION | 29959255682 |
| III FSC APPLICATION DATA | ACTUATOR,JET ENGINE,ACFT |
| MANUFACTURERS CODE | 09523 |
| DESIGN CONTROL REFERENCE | 3881783-101 |
Restrictions/Controls & Freight Information | NSN 2995-00-925-5682
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
