NSN 3010-00-364-3575 3222676, 00-364-3575, 003643575
Product Details | SHAFT COUPLING HALF
3010-00-364-3575 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 3222676, 3010-00-364-3575, 00-364-3575, 3010003643575, 003643575
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-364-3575 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-00-364-3575
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3010-00-364-3575
Related Products | NSN 3010-00-364-3575
Technical Data | NSN 3010-00-364-3575
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

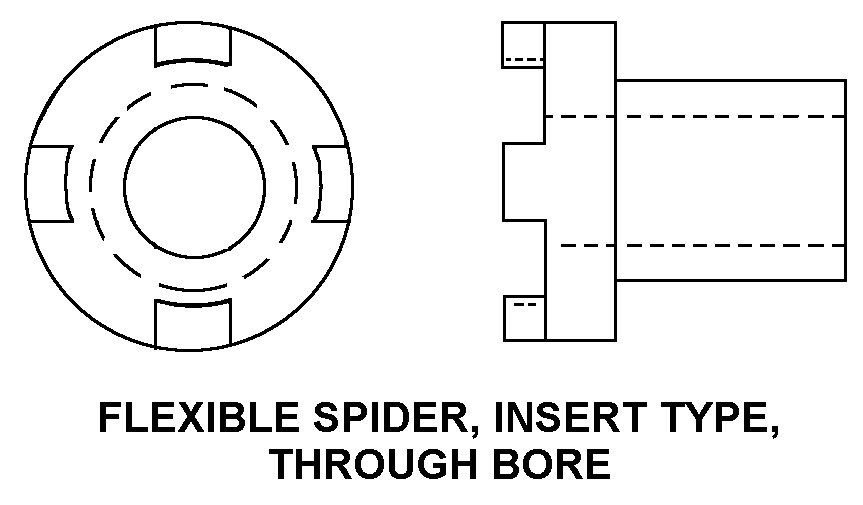

| BODY STYLE | A6 FLEXIBLE SPIDER, INSERT TYPE, THROUGH BORE |
| OVERALL LENGTH | 1.266 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| BORE SHAPE | TAPERED |
| TAPER LARGEST DIAMETER | 0.8440 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE TREATMENT:CADMIUM; DISTANCE FROM BORE CENTERLINE TO BODY KEYING FACILITY BOTTOM/TOP:1/2" NOM.; FLANGE THICKNESS:0.469" NOM.; TAPER MINOR DIA.:0.812" NOM.; BORE LG.:1/2" NOM.; HUB OD:1.562" NOM.; KEYING FACILITY AND BORE FACILITY:NOT INCLUDED; BODY KEYING FACILITY WD:0.391" NOM.; BODY KEYING FACILITY WD.:0.391" NOM.; BODY KEYING FACILITY DEP/HT:0.156" NOM. |
Restrictions/Controls & Freight Information | NSN 3010-00-364-3575
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-364-3575
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
