Product Details | ROTARY ELECTRO-MECHANICAL ACTUATOR
3010-00-420-5226 A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of torque (rotational mechanical movement). Comprised of an electric motor(s), gear box(es), limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks.21212700040Aircraft Gunnery Fire Control Components14200025Guided Missile Components14400025Launchers, Guided Missile1675000016800049Miscellaneous Aircraft Accessories and Components18200024Space Vehicle Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers30100036Torque Converters and Speed Changers4130000048100015Valves, Powered49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: NYLC9899, 114PS2052, 114PS205-2, 3010-00-420-5226, 00-420-5226, 3010004205226, 004205226
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 07 MAR 1969 | 00-420-5226 | 11006 ( ACTUATOR, ELECTRO-MECHANICAL, ROTARY ) |

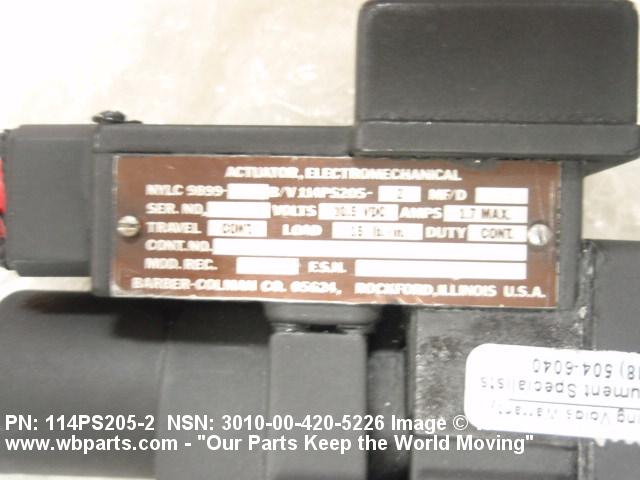

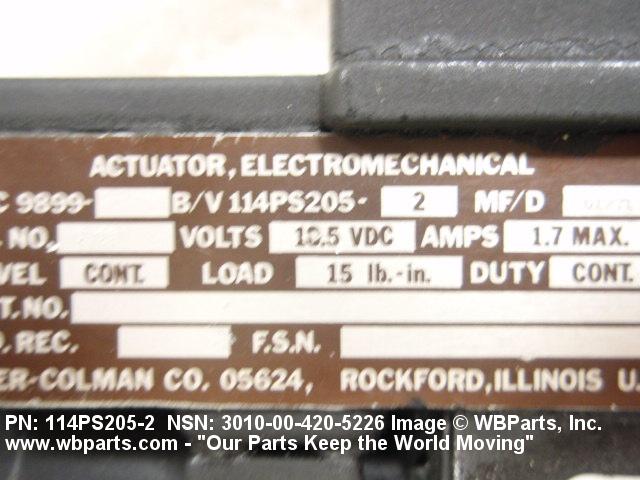

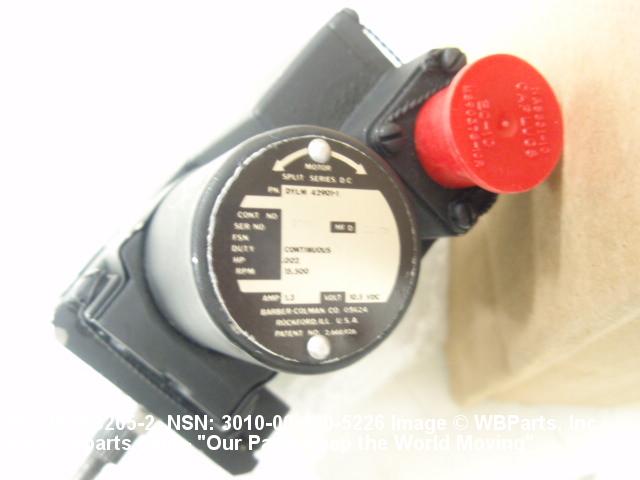

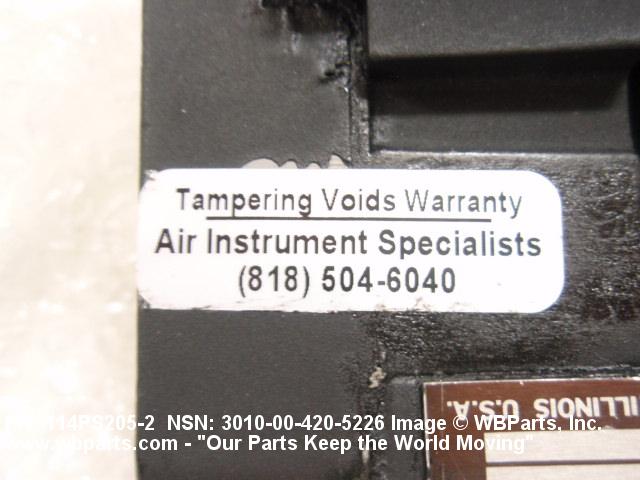

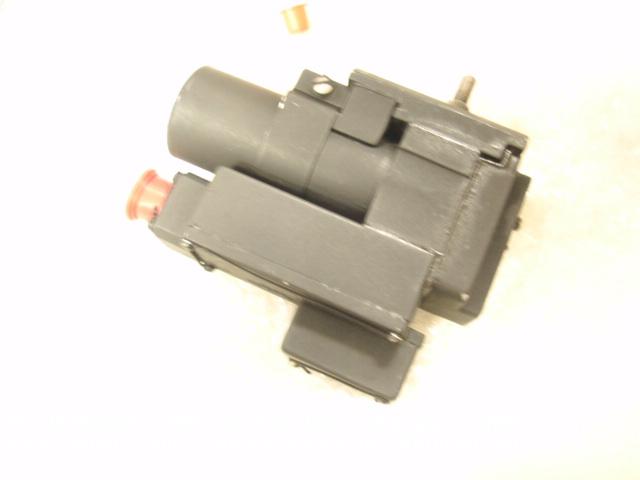

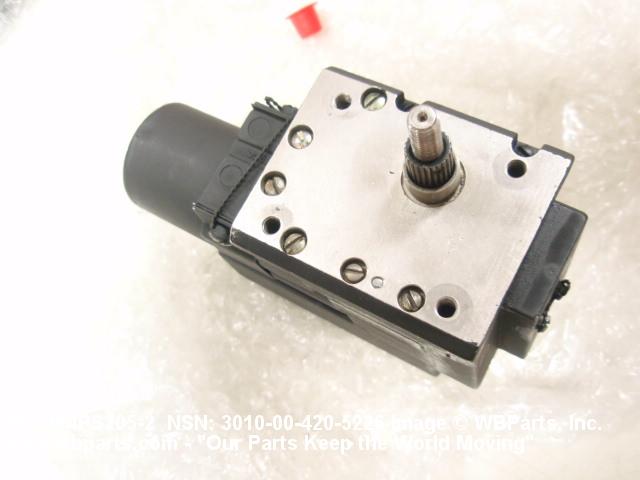

Drawings & Photos | NSN 3010-00-420-5226
Demand History | NSN 3010-00-420-5226
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-420-5226 | 2021-07-02 | 13 | US |
| 3010-00-420-5226 | 2021-03-10 | 13 | US |
| 3010-00-420-5226 | 2020-09-24 | 4 | US |
| 3010-00-420-5226 | 2020-04-21 | 14 | US |
| 3010-00-420-5226 | 2020-01-08 | 4 | KR |
| 3010-00-420-5226 | 2020-01-08 | 10 | KR |
| 3010-00-420-5226 | 2019-01-27 | 12 | US |
| 3010-00-420-5226 | 2019-01-24 | 12 | US |
| 114PS2052 | 2018-04-02 | 2 | US |
| 114PS2052 | 2017-05-30 | 10 | US |
| 3010-00-420-5226 | 2011-12-09 | 1 | KR |
| 114PS2052 | 2011-10-07 | 1 | South Korea |
| 114PS2052 | 2010-11-03 | 1 | South Korea |
| 114PS2052 | 2010-11-03 | 1 | South Korea |
| 114PS2052 | 2010-10-05 | 2 | South Korea |
| 114PS2052 | 2009-08-19 | 1 | Korea |
| 3010-00-420-5226 | 2009-08-10 | 1 | US |
| 114PS2052 | 2009-07-22 | 1 | South Korea |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3010-00-420-5226
3010-00-420-5309, 3010-00-420-5451, 3010-00-420-5575, 3010-00-420-5627, 3010-00-420-9418
Technical Data | NSN 3010-00-420-5226
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 10.5 |
| CURRENT RATING IN AMPS | 1.7 |
| DUTY CYCLE | CONTINUOUS |
| DRIVE TYPE | DIRECT |
| BRAKING METHOD | ELECTRIC |
| TEMP RATING | -65.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT |
| TERMINAL TYPE | CONNECTOR |
| MOUNTING FACILITY | THREADED MOUNTING HOLES |
| BODY LENGTH | 4.000 INCHES MAXIMUM |
| BODY WIDTH | 2.100 INCHES MAXIMUM |
| BODY HEIGHT | 6.220 INCHES MAXIMUM |
| ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| MANUFACTURERS CODE | 77272 |
| MFR SOURCE CONTROLLING REFERENCE | 114PS205-2 |
Restrictions/Controls & Freight Information | NSN 3010-00-420-5226
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-420-5226
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
