NSN 3010-00-433-2242 10675561-2, 00-433-2242, 106755612
Product Details | SHAFT COUPLING HALF
3010-00-433-2242 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 10675561-2, 3010-00-433-2242, 00-433-2242, 3010004332242, 106755612, 004332242
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 17 AUG 1970 | 00-433-2242 | 08009 ( COUPLING HALF, SHAFT ) |
Drawings & Photos | NSN 3010-00-433-2242
Cross Reference | NSN 3010-00-433-2242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10675561-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3010-00-433-2242
Technical Data | NSN 3010-00-433-2242
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764, TYPE 303, CONDITION A FED SPEC SINGLE MATERIAL RESPONSE |

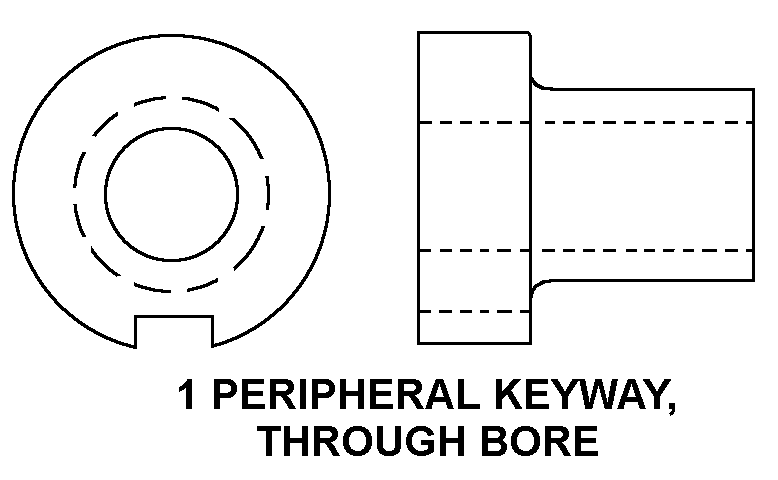

| BODY STYLE | A11 1 PERIPHERAL KEYWAY, THROUGH BORE |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| BORE LENGTH | 0.5000 INCHES NOMINAL |
| SPECIAL FEATURES | UNTHREADED BORE DIA.:0.500" NOM.; DISTANCE FROM BORE CENTERLINE TO BODY KEYING FACILITY BOTTOM/TOP:0.380" MIN.,0.390" MAX.; THREADED HOLE LOCATION:(1) HOLE 90 DEG. FROM KEYWAY, (1) HOLE 180 DEG. FROM KEYWAY; POSITIONING HOLE STYLE:PLAIN; HOLE THREAD SIZE DESIGNATOR:0.112" - 40; BODY KEYING FACILITY WD:0.130" MIN.,0.135" MAX.; THREADED HOLE QTY:2; SECURING METHOD:THREADED HOLE; KEYING FACILITY AND BORE COUNTERBORE FEATURE:NOT INCLUDED; HUB OD:0.740" MIN.,0.760" MAX.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.120" MIN.,0.140" MAX. |
Restrictions/Controls & Freight Information | NSN 3010-00-433-2242
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
