NSN 3010-00-528-1660 112517PC2, 112-517PC2, 900

Product Details | NONVEHICULAR POSITIVE CLUTCH HALF


3010-00-528-1660 That portion of a CLUTCH, POSITIVE which transmits or receives motion or power by engagement with the mating member.

Part Alternates: 112517PC2, 112-517PC2, 900, 3010-00-528-1660, 00-528-1660, 3010005281660, 005281660

Mechanical Power Transmission Equipment | Torque Converters and Speed Changers

Supply Group (FSG) NSN Assign. NIIN
30 01 JAN 1963 00-528-1660

Drawings & Photos | NSN 3010-00-528-1660



Demand History | NSN 3010-00-528-1660


Part Number Request Date QTY Origin
3010-00-528-1660 2008-11-09 4 DIBBS
3010-00-528-1660 2006-02-14 2 DIBBS

Cross Reference | NSN 3010-00-528-1660


Part Number Cage Code Manufacturer
112-517PC2 58265 STRUTHERS WELLS CORP
900 58265 STRUTHERS WELLS CORP

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 3010-00-528-1660


Technical Data | NSN 3010-00-528-1660


Characteristic Specifications

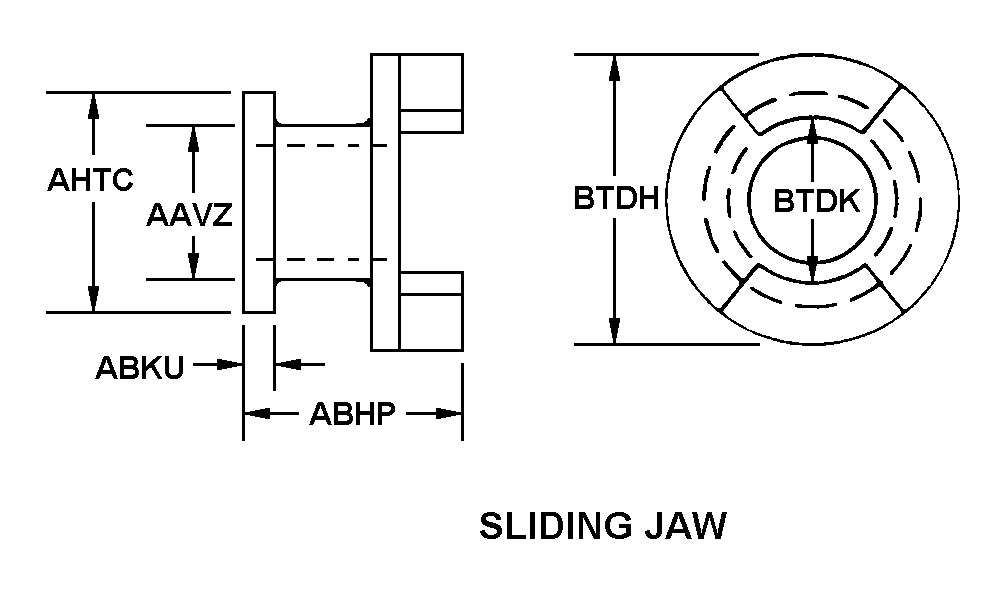

STYLE DESIGNATOR A1 SLIDING JAW
GROOVE DIAMETER 1.872 INCHES MINIMUM AND 1.875 INCHES MAXIMUM
OVERALL LENGTH 2.500 INCHES NOMINAL
FLANGE THICKNESS 0.625 INCHES NOMINAL
FLANGE OUTSIDE DIAMETER 2.500 INCHES NOMINAL
JAW CIRCLE OUTSIDE DIAMETER 3.750 INCHES NOMINAL
JAW CIRCLE INSIDE DIAMETER 1.750 INCHES NOMINAL
FEATURES PROVIDED KEYWAY

Restrictions/Controls & Freight Information | NSN 3010-00-528-1660


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 132330 TRANSMISSIONS/CLUTCHES/PARTS,NOI
Less than car load rating
Less than truck load rating M 85.0
Water commodity Code 593 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 3010-00-528-1660


Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
