Product Details | SHAFT COUPLING HALF
3010-00-563-3925 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Part Alternates: 8511182, 3010-00-563-3925, 00-563-3925, 3010005633925, 005633925
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-563-3925 | 08009 ( COUPLING HALF, SHAFT ) |

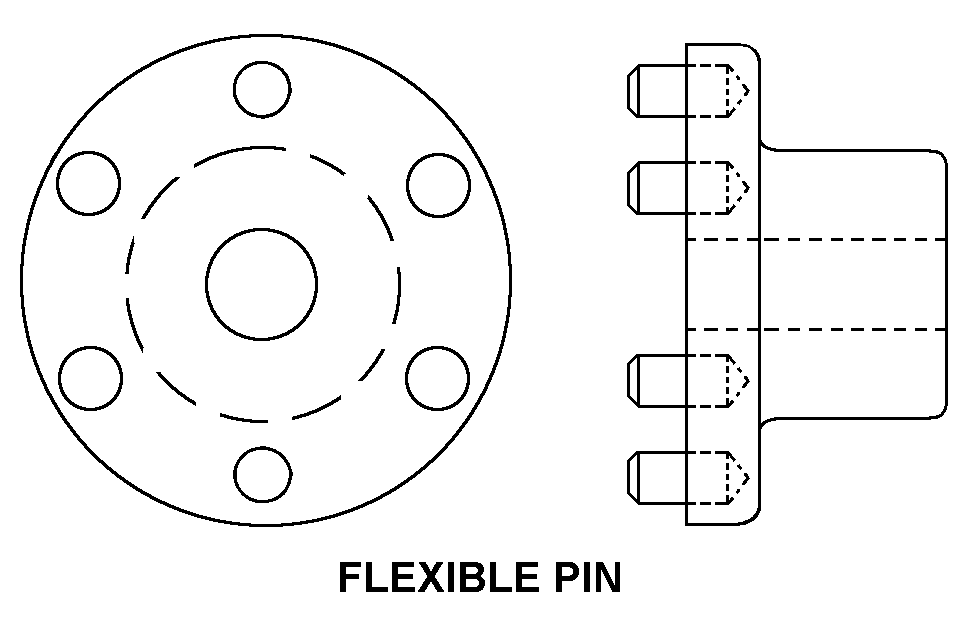

Drawings & Photos | NSN 3010-00-563-3925
Cross Reference | NSN 3010-00-563-3925
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8511182 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3010-00-563-3925
Related Products | NSN 3010-00-563-3925
3010-00-563-3930, 3010-00-563-5017, 3010-00-563-5440, 3010-00-563-7725, 3010-00-564-0062
Technical Data | NSN 3010-00-563-3925
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-623, COMP C1020, COND CF FED SPEC SINGLE MATERIAL RESPONSE |
| BODY STYLE | A19 FLEXIBLE PIN |
| OVERALL LENGTH | 0.4187 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.2666 INCHES NOMINAL |
| BORE LENGTH | 0.4187 INCHES NOMINAL |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | SURFACE TREATMENT:ZINC-PLATED FINISH; UNTHREADED BORE DIA.:0.109" NOM.; POSITIONING FACILITY BOLT CIRCLE DIA.:0.876" NOM.; POSITIONING FACILITY QTY:1; POSITIONING HOLE STYLE:PLAIN; UNTHREADED HOLE LOCATION:90 DEG. FROM KEYWAY; UNTHREADED HOLE QTY:2; SECURING METHOD:UNTHREADED HOLE; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY QTY:1; O/A OUTSIDE DIMENSION:1.250" NOM.; HUB OD:1/2" NOM.; PIN LG.:0.572" NOM.; THREAD PROVISION:UNTHREADED; DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY:0.167" NOM.; PIN DIA.:0.249" NOM.; KEY WD:0.625" NOM.; KEYWAY WD:0.063" NOM.; FLANGE THICKNESS:0.184" NOM.; HOLE DIA.:0.109" NOM. |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8511182 |
