Product Details | RIGID SHAFT COUPLING
3010-00-776-5892 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Part Alternates: W244921PC185, X675C185X18, X-675C185X18, 11223, 3.324516, 3324516, 3324516 PC NO 185, 3324516PCNO185, 675C185X18, 3010-00-776-5892, 00-776-5892, 3010007765892, 007765892
Mechanical Power Transmission Equipment | Torque Converters and Speed Changers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-776-5892 | 13742 ( COUPLING, SHAFT, RIGID ) |
Drawings & Photos | NSN 3010-00-776-5892
Demand History | NSN 3010-00-776-5892
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3010-00-776-5892 | 2024-01-22 | 3 | DIBBS |
| 3010-00-776-5892 | 2024-01-11 | 3 | DIBBS |
| 3010-00-776-5892 | 2022-05-12 | 3 | DIBBS |
| 3010-00-776-5892 | 2022-03-20 | 3 | DIBBS |
| 3010-00-776-5892 | 2019-10-21 | 2 | DIBBS |
| 3010-00-776-5892 | 2017-05-09 | 4 | DIBBS |
| 3010-00-776-5892 | 2016-12-05 | 4 | DIBBS |
| 3010-00-776-5892 | 2015-03-08 | 4 | DIBBS |
| 3010-00-776-5892 | 2014-05-14 | 4 | DIBBS |
| 3010-00-776-5892 | 2014-04-28 | 4 | DIBBS |
| 3010-00-776-5892 | 2012-05-11 | 4 | DIBBS |
| X675C185X18 | 2011-07-06 | 1 | United States |
| 3010-00-776-5892 | 2007-11-05 | 4 | DIBBS |
| 3010-00-776-5892 | 2007-08-13 | 4 | DIBBS |
| 3010-00-776-5892 | 2007-06-20 | 7 | DIBBS |
| 3010-00-776-5892 | 2007-05-10 | 3 | DIBBS |
| 3010-00-776-5892 | 2006-05-11 | 8 | DIBBS |
Cross Reference | NSN 3010-00-776-5892
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11223 | 54402 | R. P. S. INC |
| 3.324516 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 3324516 PC NO 185 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 675C185X18 | 30760 | INGERSOLL RAND CO |
| 675C185X18 | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| W244921PC185 | 0MHC4 | NAVPAR, INC |
| W244921PC185 | 30760 | INGERSOLL RAND CO |
| W244921PC185 | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| X-675C185X18 | 88032 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3010-00-776-5892
Related Products | NSN 3010-00-776-5892
3010-00-776-6867, 3010-00-777-0130, 3010-00-777-0143, 3010-00-777-4193, 3010-00-777-5348
Technical Data | NSN 3010-00-776-5892
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL CORROSION RESISTING |

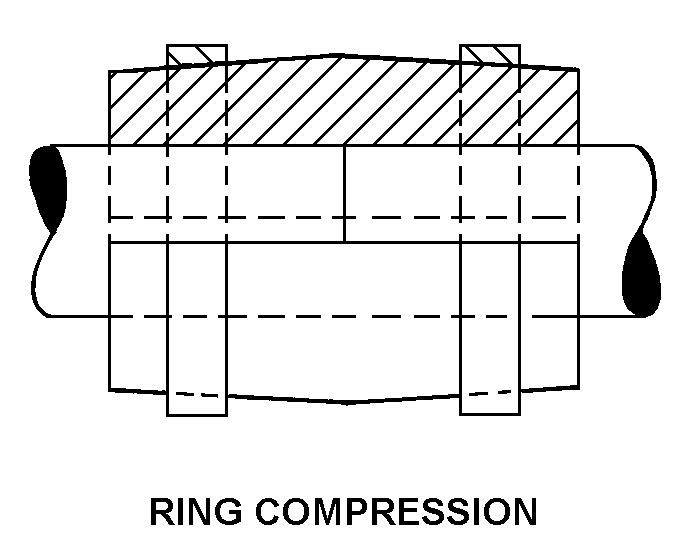

| STYLE DESIGNATOR | A2 RING COMPRESSION |
| OVERALL DIAMETER | 6.750 INCHES NOMINAL |
| OVERALL LENGTH | 4.875 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT FIRST END |
| FEATURES PROVIDED | KEYWAY |
| SPECIAL FEATURES | END DIAMETER: 3.750 IN. NOMINAL; 1 KEYING FACILITY PROVIDED; KEYING FACILITY WIDTH: 0.375 IN. NOMINAL |
Restrictions/Controls & Freight Information | NSN 3010-00-776-5892
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3010-00-776-5892
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
